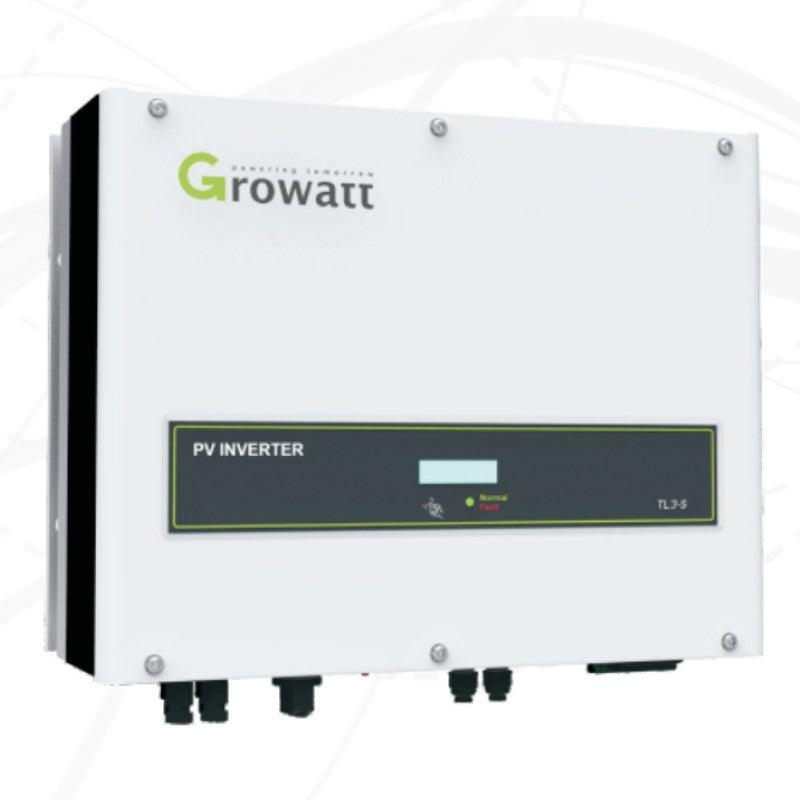

Growatt 8000 TL3-S Three Phase Inverter
Growatt 8000 TL3-S Three Phase Inverter
SKU:TL3-S9 <10k
Regular price
£989.00 GBP
Regular price
Sale price
£989.00 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
The Growatt TL3-S range offer an ideal solution for large 3ph residential or small commercial systems. Their compact design offers easy installation and transportation whilst the integrated DC switch and IP65 rating allow for flexible system designs.
The ultra-low start-up and wide working voltage allow for longer generation windows.
Now comes with a 10 year warranty as standard.
AC attributes
Max power: 8000W
Max current: 13.3A
Number of phases: 3
DC attributes
Number of MPPT 2
V range of MPPT 160 - 1000V
Max power 9600W
Max Isc current 11.5A
Max voltage 1000V
Start up voltage 160V
System
Max efficiency 98.3%
IP rating IP65
Built in protection DC reverse polarity, AC overcurrent and overvoltage
Export limitations With meter
Weight 21.6kg
Dimensions 480x448x200mm
Communication RS232, RS485 (wifi, ethernet,RF, optional)
Warranty (extensions) 10 years
Key features
Max DC voltage up to 1000V
Compact design
Compact design
Indoor or outdoor installation
Low start-up voltage
Flexible communication options
Low start-up voltage
Flexible communication options
