Growatt MAX 70KTL3 Commercial Solar Inverter – 70kW | 7 MPPT | 99% Efficiency
Growatt MAX 70KTL3 Commercial Solar Inverter – 70kW | 7 MPPT | 99% Efficiency
SKU:MAX-KTL3-70
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

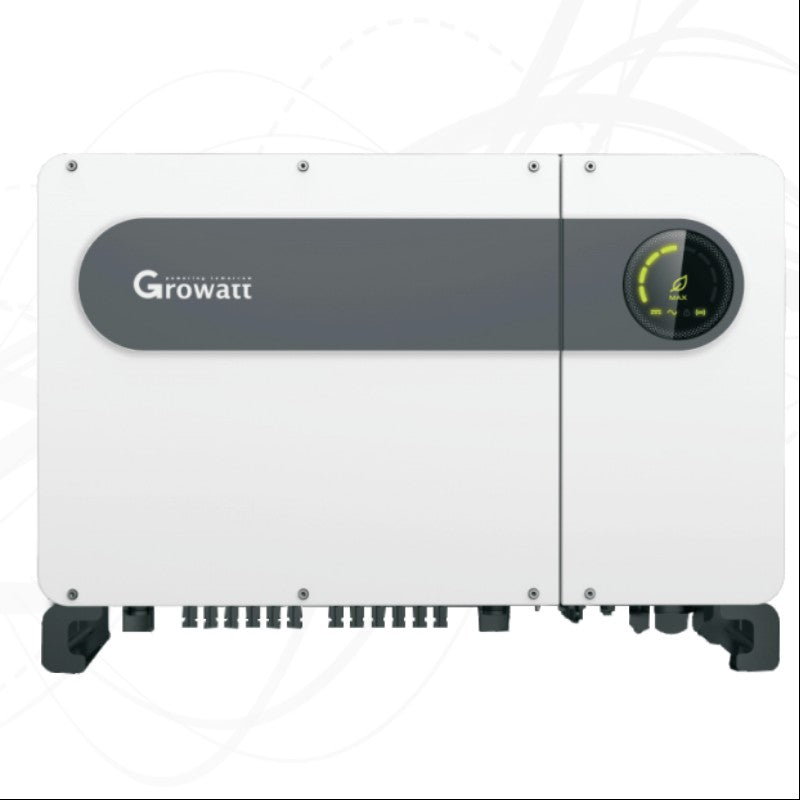

Growatt MAX 70KTL3 Three Phase Solar Inverter – 70kW, 7 MPPT, 99% Efficiency
The Growatt MAX 70KTL3 is a high-performance three-phase solar inverter engineered for medium to large commercial PV installations. With 7 independent MPPTs, a peak efficiency of 99%, and support for up to 12 PV strings, this inverter offers unrivalled design flexibility, safety, and monitoring accuracy for your solar energy systems.
Whether you're managing a ground-mount solar farm or a large-scale rooftop array, the MAX 70KTL3 ensures smart diagnostics, low maintenance, and reliable operation, even in the most demanding conditions.
🔑 Key Features:
- 7 x MPPT channels for optimal string design and shading tolerance
- Maximum inverter efficiency: 99%
- High DC input capacity: up to 105kW
- Smart IV curve diagnosis for each PV string
- Type II SPD on AC & DC, reverse polarity and arc fault protection
- IP65 weatherproof casing – suitable for outdoor installations
- Export control capability with optional CT clamp meter
- Plug-and-play monitoring with ShineLink-X or ShineWiFi-X dongle (required, sold separately)
📊 Technical Specifications:
- AC Output Power: 70,000W
- AC Max Current: 112.7A
- DC Max Power Input: 105,000W
- MPPT Operating Voltage Range: 200V – 1000V
- Startup Voltage: 250V
- DC Max Current: 26A per MPPT
- MPPTs / Strings: 7 / 12
- Max DC Voltage: 1000V
📐 Mechanical & Environmental:
- IP Rating: IP65 – Dust and Water Resistant
- Dimensions (H x W x D): 860 x 600 x 300 mm
- Weight: 86 kg
- Cooling: Intelligent fan cooling system
🔧 Installation & Monitoring:
- Mounting: Wall-mounted or frame-mounted
- Monitoring Interfaces: USB, RS485 (GPRS optional)
- Remote Monitoring: Compatible with Growatt Cloud via ShineWiFi-X or ShineLink-X
🛡️ Warranty & Certification:
- Warranty: 10 years (extendable)
- Certifications: CE, G99, RoHS, TUV – fully UK-compliant
Take your commercial solar project to the next level with the Growatt MAX 70KTL3 Inverter – now available from Solarika.co.uk, your trusted UK supplier of premium solar energy solutions.
