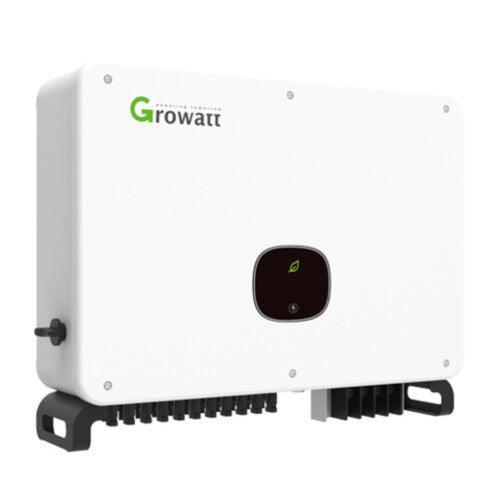

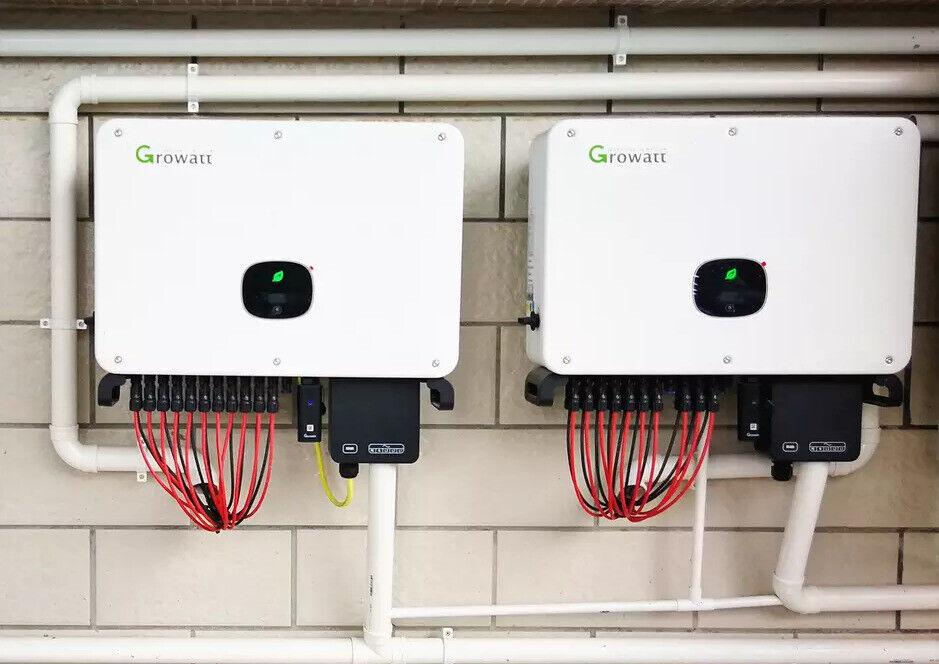

The latest and most powerful Growatt inverters yet. The MAX TL3 inverters are ideal for medium-large scale commercial roofs and groundmount projects. With 6 MPPTs as standard, the inverters offer unparalleled design flexibility when it comes to string configurations. Lightning and fire protection are also included as standard, along with IV diagnosis on individual strings to detective any issues.
Note: This inverter requiresShinelink-X,ShineWIFI-XorShineLAN-Xfor monitoring.
This inverter is currently not compliant to the ENA type test register however Growatt expect this inverter to be approved in the coming weeks. (as of April 2023)
AC attributes
Max power: 50kW
Max current: 80.5A
Number of phases: 3
DC attributes
Number of MPPT 6 Strings per MPPT 2
V range of MPPT 200 - 1000V
Max power 65kW
Max Isc current 25A per MPPT
Max voltage 1100V
Start up voltage 250V
System
Max efficiency 99%
IP rating IP65
Built in protection AC/DC type II SPD reverse polarity
Export limitations Meter with 3 ct clamps
Weight 82kg
Dimensions 860x600x300mm
Communication USB, RS485 (opt: GPRS)
Warranty (extensions) 10 years
Key features
6 MPPTs Maximum efficiency of 99% DC and AC power supply
12 strings intelligent monitoring and fast trouble-shooting
