EPEVER UPower Series Solar Hybrid Off Grid Inverter 5000VA / 48V & MPPT Charge Controller 4000W / 80A (UP5000-M8342)

EPEVER UPower Series Solar Hybrid Off-Grid Inverter 5000VA / 48V & MPPT Charge Controller 4000W / 80A (UP5000-M8342)

The EPEVER UPower Series UP5000-M8342 is a robust, industrial-grade solar hybrid inverter and MPPT charge controller, meticulously engineered for reliable off-grid power solutions in the UK. This all-in-one unit seamlessly combines a powerful 5000VA / 4000W pure sine wave inverter with an efficient 4000W / 80A MPPT solar charge controller, making it an ideal choice for homeowners, businesses, and installers seeking a high-performance, integrated energy management system for remote properties, marine applications, or backup power.

Key Benefits for UK Users

• Reliable Off-Grid Power: Provides a stable and continuous power supply for properties not connected to the national grid or for critical backup applications.
• Optimised Solar Harvest: Advanced MPPT technology ensures maximum power extraction from your solar panels, even in varying weather conditions, boosting your energy independence.
• Pure Sine Wave Output: Delivers clean, stable electricity suitable for sensitive electronics, appliances, and industrial equipment, protecting your valuable assets.
• Flexible Charging Options: Configurable charging priorities (Solar, Utility, or combined) allow you to tailor energy management to your specific needs and optimise running costs.
• Integrated Protection: Comprehensive electronic protection features safeguard your system against common electrical faults, ensuring longevity and safety.

Features at a Glance

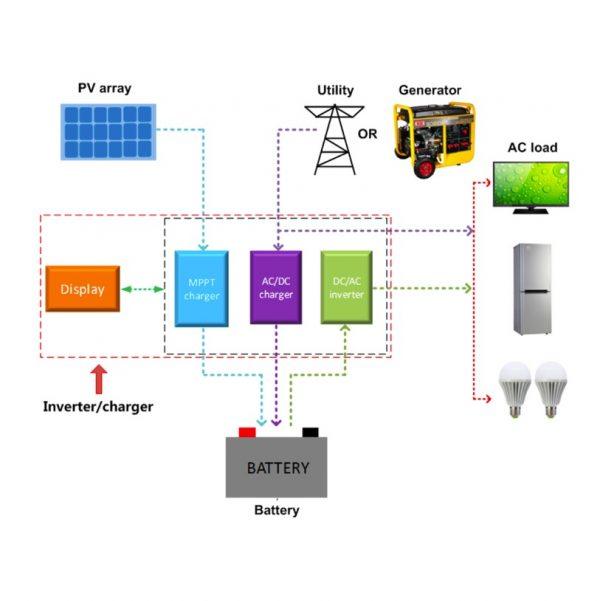

• Hybrid Functionality: Combines a 5000VA / 4000W pure sine wave inverter and a 4000W / 80A MPPT solar charge controller in one unit.
• 48V DC System: Designed for 48V battery banks, offering efficient power conversion.
• High Surge Capability: Capable of delivering up to 10000W instantaneous surge power for demanding loads.
• Advanced MPPT Algorithm: Achieves up to 99.5% tracking efficiency for optimal solar energy capture.
• Configurable AC Output: Output voltage (220VAC/230VAC) and frequency (50Hz/60Hz) are adjustable to suit various requirements.
• Multiple Charging Modes: Supports Solar priority, Utility priority, Solar only, and Utility & Solar combined charging modes.

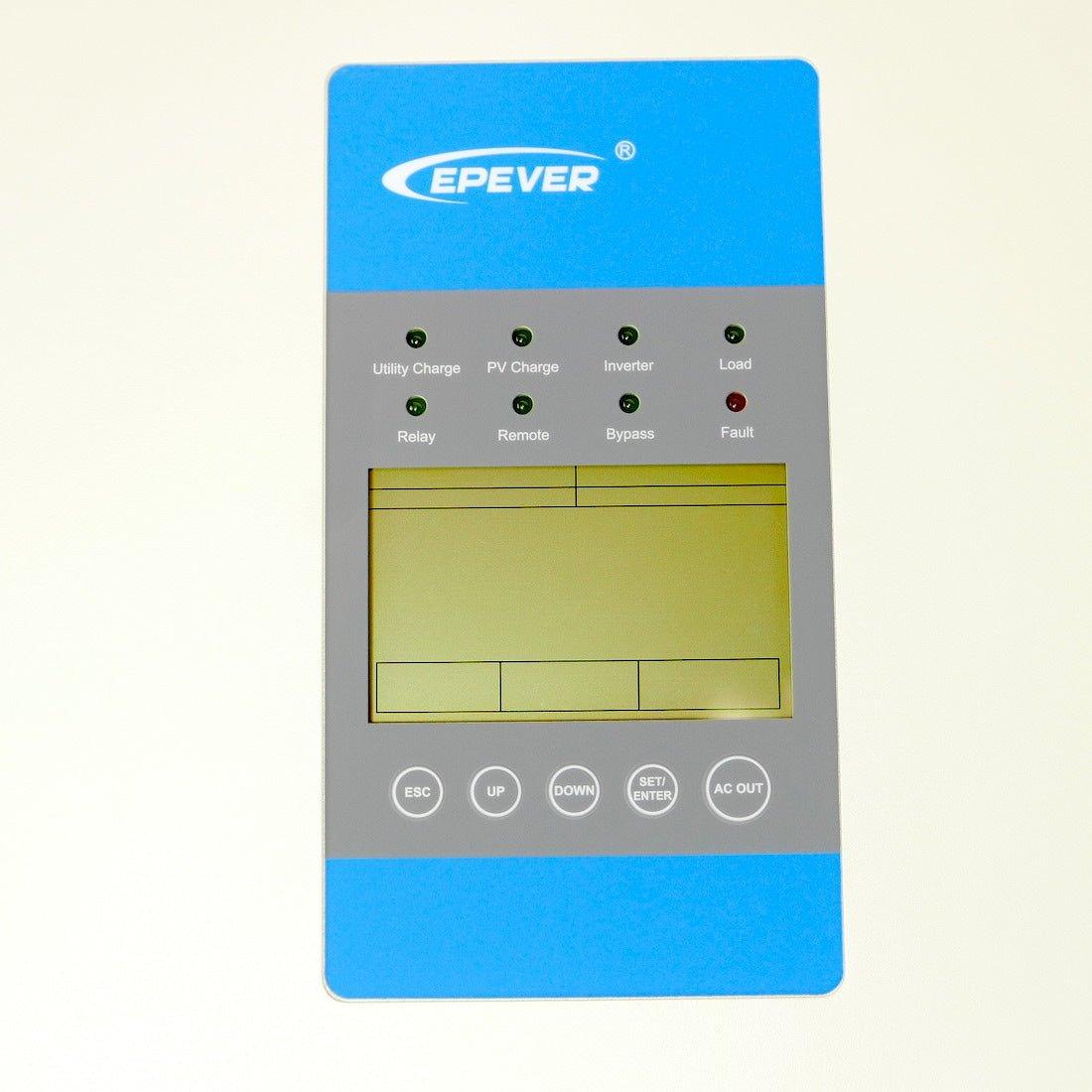

• Intuitive Monitoring: Features a large 4.2-inch LCD display for real-time operational data and easy parameter adjustment.
• Communication Ports: Equipped with an RS485 interface for PC connectivity (optional USB to RS485 cable required) and supports optional eBox-WiFi for mobile app monitoring.

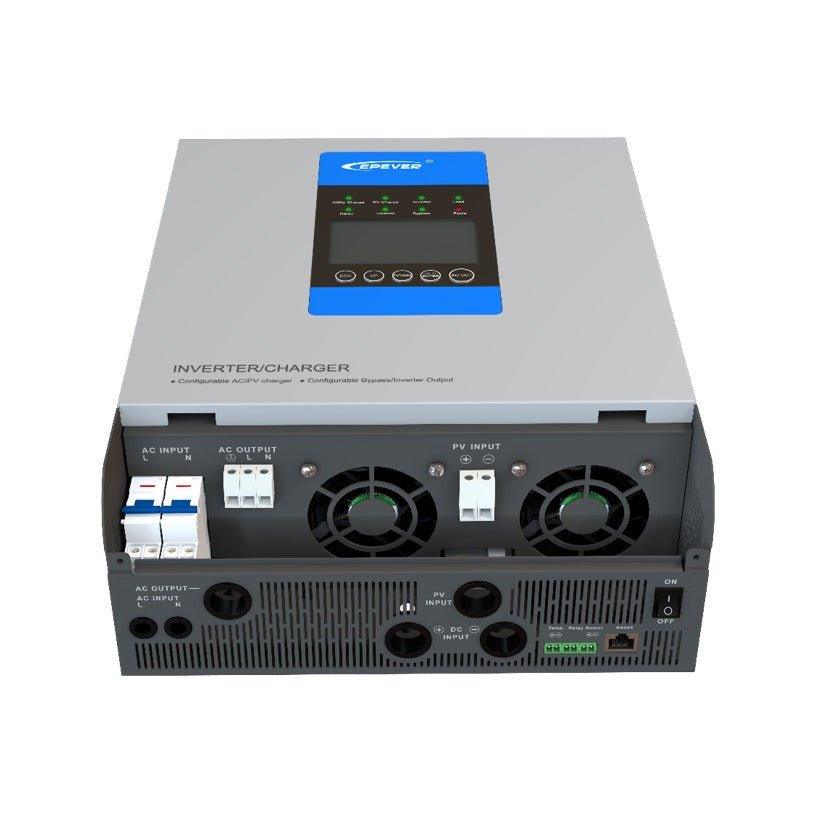

• Integrated Circuit Breakers: Inbuilt 2P circuit breakers for AC utility input, simplifying installation.
• Generator Auto-Start Function: Inbuilt relay interface can activate an external power source (e.g., generator) when battery voltage is critically low, ideal for UPS applications.
• Robust Design: Industrial-grade specification with an IP30 enclosure, suitable for a wide range of environments.
• CE & RoHS Certified: Meets European safety and environmental standards.

Technical Specifications (UP5000-M8342)

Applications & Compatibility

• Off-Grid Homes & Cabins: Provides complete power independence for remote residential properties.
• Marine & RV Systems: Ideal for boats, yachts, and recreational vehicles requiring reliable 48V power.
• Backup Power Solutions: Ensures uninterrupted power for critical loads during grid outages.
• Industrial & Commercial Use: Suitable for various industrial, commercial, and scientific applications demanding stable power.
• Battery Compatibility: Supports a wide range of lead-acid battery types (AGM, Gel, Sealed, Flooded) and offers user-customisable settings for other battery chemistries, including some lithium types. However, due to the varying nature of lithium battery chemistries and BMS configurations, specific compatibility should be verified with your battery manufacturer.

Installation & Usage Notes

For optimal performance and safety, the EPEVER UPower Series UP5000-M8342 should be installed by a qualified and competent person, such as a registered electrician with experience in off-grid solar systems. Ensure all local wiring regulations and safety standards are strictly followed. Proper ventilation is crucial for the inverter's operation and longevity. Refer to the comprehensive user manual for detailed installation instructions, wiring diagrams, and operational guidelines.

Frequently Asked Questions

Q: What is the warranty period for this EPEVER inverter?

A: The EPEVER UPower Series UP5000-M8342 comes with a 2-year warranty.

Q: Can this inverter be monitored remotely?

A: Yes, the inverter can be monitored via PC software (requires optional USB to RS485 communication cable) or through an Android app (requires optional eBox-WiFi module).

Q: Is this suitable for grid-tied systems?

A: No, the EPEVER UPower Series is specifically designed as an off-grid inverter/charger and is not intended for grid-tied systems.

Q: What battery types are compatible?

A: It is compatible with various lead-acid battery types including AGM, Gel, Sealed, and Flooded. It also offers user-customisable settings for other battery types, such as lithium, but specific compatibility should be confirmed with the battery manufacturer due to diverse BMS configurations.

Important Note: While we strive for accuracy, specifications are subject to change by the manufacturer. Please always verify the model, SKU (UP5000-M8342), and compatibility with your specific system requirements and components before making a purchase. For detailed technical data, refer to the official EPEVER datasheet and user manual.
