EPEVER UPower Series Solar Hybrid Inverter 1000VA / 12V & MPPT Charge Controller 390W/30A (UP1000-M3212)
EPEVER UPower Series Solar Hybrid Inverter 1000VA / 12V & MPPT Charge Controller 390W/30A (UP1000-M3212)
SKU:MD1215/1KVA/M3212
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
EPEVER UPower Series Solar Hybrid Inverter 1000VA / 12V & MPPT Charge Controller 390W/30A (UP1000-M3212)
Solar Hybrid Inverter. MPPT Solar Charger. Pure Sine Inverter.
- Industrial Grade Specification
- Quick Transfer Speed and High Efficiency
- Large LCD Display and Control with optional PC software
- 2 Year Warranty
CE & RoHS Certified

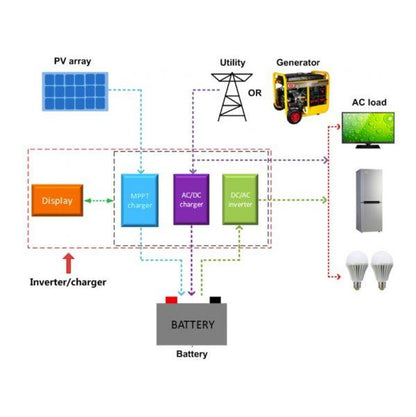

A Hybrid fully configurable Inverter Charger combining MPPT Solar Charging and Inverter function in one reliable solar off-grid package. Suitable for Industrial, Commercial, Scientific, Residential and Marine use.
Available in 1KVA, 2KVA, 3KVA and 5KVA models.
Industrial grade design with 2 Year Warranty:
- Uses multi-core processor design and an advanced MPPT control algorithm in an IP30 enclosure.
- SPWM Pure Sine Wave output. Low Harmonic Distortion (≤3%) suitable for industrial, scientific and medical applications.
- MPPT technology with efficiency up to 99.5%
- AC side / Utility side 2P circuit breakers inbuilt (reduces installation space and time)
- Battery temperature compensation function
- Extensive electronic protection
- Can deliver instantaneous Output Surge Power twice the device rated power.
- For Critical UPS Power Applications, inbuilt Relay Interface can activate an external power source (e.g. Auto Start/Stop Generator) when Battery voltage is critically low.
MPPT Solar Charge algorithm maximises conversion efficiancy up to 99.5%. Battery Charging function configurable to suit local environment preferences and reliabilty requirements in multiple priority modes:
- Solar charging priority over Utility (to balance low running cost with reliability)
- Utility charging priority over Solar (to maximise charge in cloud conditions)
- Solar-only charging (to achieve the lowest running cost)
- Utility & Solar combined simultaneous charging
Inverter DC-AC module uses SPWM to produce Pure Sine wave output suitable for residential and commercial/scientific applications.
AC Inverter Module can be configured to run on:
- Always Battery source. This creates a continuously stable output for systems requiring UPS (Uninterrupted Power Supply), e.g. telecommunication systems or medical devices, or for countries where electrical power is unstable.
- Utility Power as default. For example when a Boat is connected to shore power.
- Configure output Voltage between 230VAC and 220VAC, and frequency between 60Hz or 50Hz

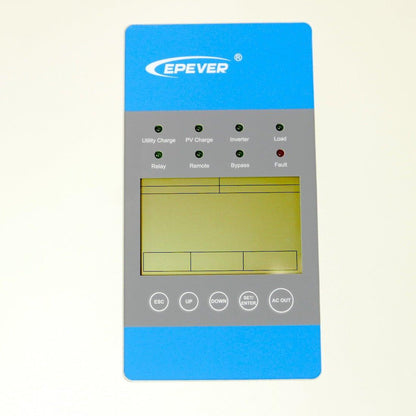

Control and Monitoring: Large 4.2-inch inbuilt display with real-time operational data. Control and Monitor the system with PC Software or Android App.
- Optional Communication Cable (USB to RS485) required for PC connection.
- Optional eBox-WiFi required for Mobile Phone.
- PC Software is required (Download here).
Electrical Specification:
| UPower Series / Model Number | 1 KVA/ (UP1000-M3212) |
|---|---|
| System Battery Voltage (and Range) | 12 V DC (10.8～16VDC) |
| Output Power (15min.) | 1000W (Continous 800W) |
| Max. Surge Power | 2000W |
| Inverter Output Voltage / Frequency | 220VAC±3%, 230VAC (-7%～+3%) / 50Hz/60Hz |
| Inverter Output Wave | Pure Sine Wave |
| Distortion THD | ≤3% (12V or 24V resistive load) |
| AC Utility Input Voltage | 160VAC～280VAC(Working voltage range), 170VAC～270VAC(Utility starting voltage range) |
| Max. Utility Charge Current | 20A |
| Max. PV Open Circuit Voltage | 46V |
| Max. PV Input Power | 390W |
| Max. PV Charging Current | 30A |
| Battery Type | Lead Acid (AGM / Gel / Sealed / Flooded) / User Custom Battery Voltage Settings (e.g. Lithium*, etc.) |
| Battery (Equalization/Boost/Float) Voltage | 14.6V / 14.4 V / 13.8 V |
| Temperature Compensation Coefficient | -3mV/℃, 2V (Default) |
| MPPT Tracking Efficiency | upto 99.5% |
| PC Connectivity Option | RS485 Interface |
| Inbuilt Relay Interface | Can drive resistive loads 125VAC /1A, 30VDC/1A. Relay triggered by battery voltage sensing parameters DON / DOF (See manual). |
Environment Specification:
| Operating Temperature Range | -20°C ~ +50°C |
| Relative Humidity | ≤95%, N.C |
| Enclosure | IP30 |
Physical Specs:
| Parameter | |||
|---|---|---|---|
| Dimension | 386×300×126mm | ||
| Mounting Dimension | 230mm | ||
| Mounting Hole Size | Φ8mm | ||
| Weight | 7.3kg | ||
Full Protection Functions:
PV Over Current, PV Short Circuit, Night Reverse charging, Battery & PV reverse polarity, Battery over-discharge, Battery overheat, Battery over-voltage, Load Short Circuit, Load Overload, and Device overheating. Note: To comply with IEC62109 requirement, connector for the battery temp sensor is now located inside the unit.
CE, RoHS.

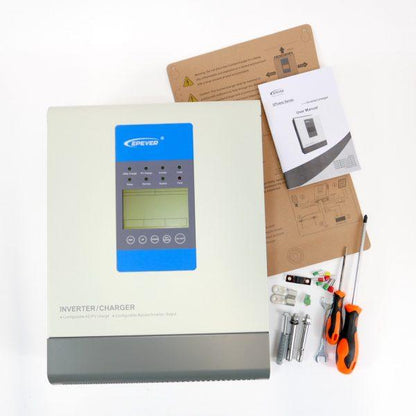

Box Contains:
- Hybrid Charger/Inverter
- DC Circular & Input Terminals
- Battery Input Fuse
- Environment Temperature Sensor
- Installation tools. Wall Template, Anchor Bolts and Screws.
Specifications subject to change. * Lithium Battery compatibility is not guaranteed, due to varying battery chemistry and BMS configurations.
