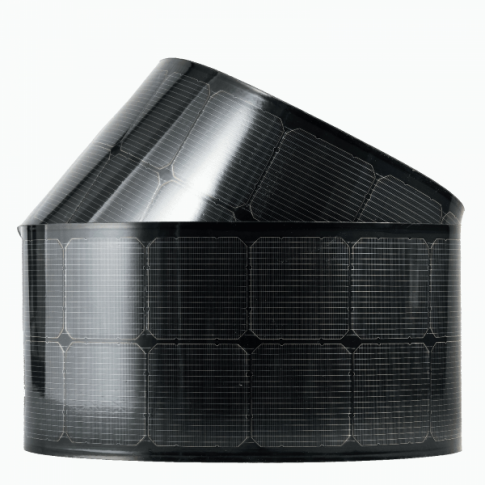

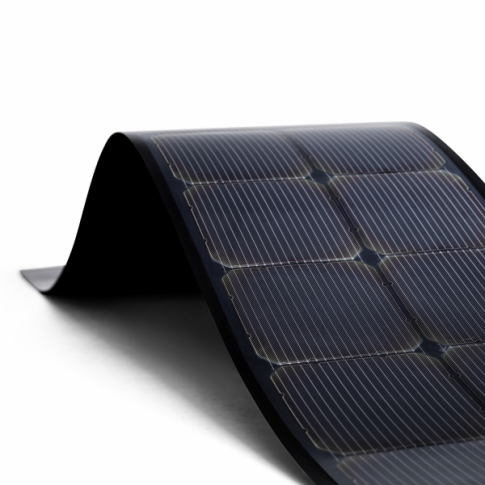

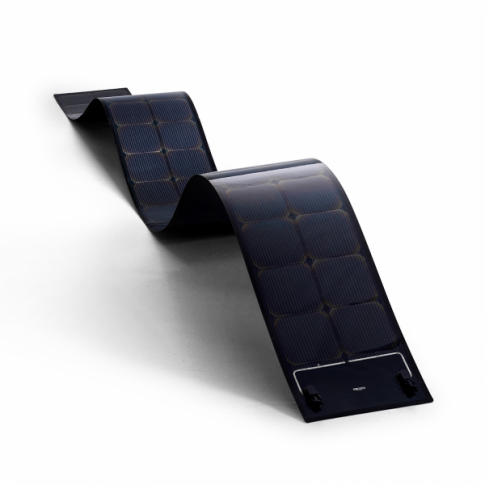

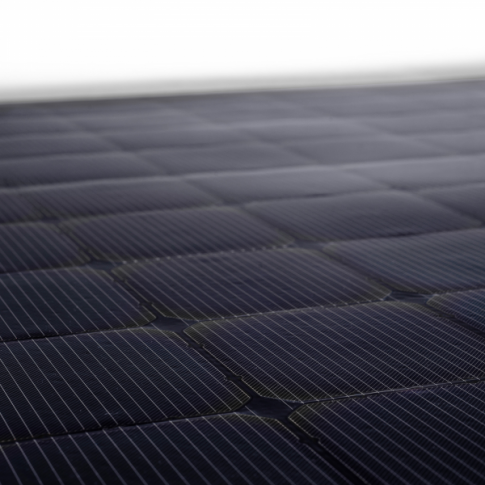

80W Flexible CIGS Solar Panel (SELM2-80)
Advanced Swedish Thin-Film Technology
The Solarika SELM2-80 is a professional-grade 80W flexible solar panel engineered with Copper Indium Gallium Selenide (CIGS) technology. Unlike traditional crystalline panels, this thin-film solution is completely shatterproof, walkable, and designed to perform in the most demanding environments. Its ultra-slim 2mm profile and integrated self-adhesive backing make it the perfect choice for curved roofs on motorhomes, caravans, and marine vessels.
Key Features
- ✔ Ultra-Flexible: Perfect for curved or uneven surfaces.
- ✔ Shatterproof & Walkable: No micro-cracking issues.
- ✔ Self-Adhesive: Easy peel-and-stick installation.
- ✔ Eco-Friendly: 90% lower carbon footprint than standard panels.
- ✔ Shade Tolerant: Superior low-light and shaded performance.
Technical Specs
| Peak Power (Pmax) | 80W |
| Max Power Voltage (Vmp) | 12.1V |
| Max Power Current (Imp) | 6.6A |
| Open Circuit Voltage (Voc) | 15.2V |
| Short Circuit Current (Isc) | 7.6A |
| Dimensions | 2129 x 358 x 2mm |
| Weight | 2.1kg |
Compatibility / Application Guide
| Application | Suitability | Notes |
|---|---|---|
| Marine / Boats | Excellent | Walkable and salt-water resistant. |
| Caravans / RVs | Excellent | Follows the curve of the roof perfectly. |
| Off-Grid Systems | Compatible | Ideal for 12V battery charging. |
OEM Cross Reference
| Photonic Universe | SELM2-80 / SELM 2x80 |
| Technology Type | CIGS Thin Film (Swedish Made) |
Important Installation Note
Voltage Requirement: This panel is a low-voltage module (Vmp 12.1V). To charge a 12V battery system effectively, it is recommended to use a Buck-Boost charge controller, or connect two or more panels in series when using a standard MPPT controller to ensure the voltage threshold is met.
Questions & Answers
Can I walk on this panel?
Yes, CIGS panels are designed to be walkable. They are shatterproof and resistant to the micro-cracking that typically destroys traditional panels when under mechanical stress.
How does it handle shade?
This panel features bypass diodes between every single cell. If one part of the panel is shaded, only those specific cells stop producing power, while the rest of the panel continues at full capacity.
What kind of controller do I need?
Because the voltage is 12.1V, we highly recommend a Buck-Boost MPPT controller for a single-panel 12V setup. Contact Solarika technical support if you need assistance with controller selection.
Note: Please verify dimensions (2129mm length) against your mounting surface before purchase. Solarika.co.uk
