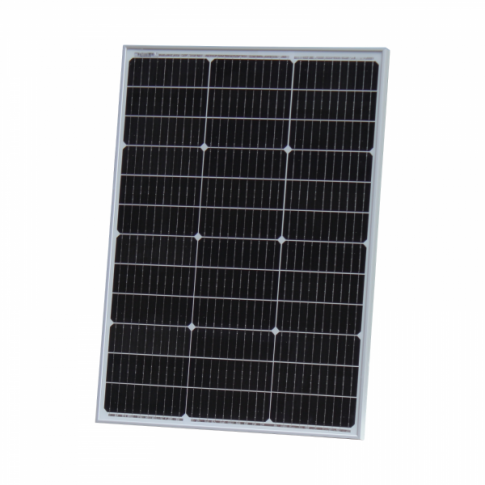

80W 12V monocrystalline solar panel with 90cm cable
80W 12V monocrystalline solar panel with 90cm cable
SKU:SWG-80M
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
80W 12V MONOCRYSTALLINE SOLAR PANEL [SWG-80M]
Premium Quality Rigid Off-Grid Power Solution
The Solarika SWG-80M is a high-performance 80W monocrystalline solar panel engineered for permanent outdoor use. Constructed with high-efficiency 5-busbar solar cells, this rigid framed panel is designed to extract maximum power from a compact surface area, making it an ideal choice for applications where space is at a premium but reliability is essential.
Key Features
- ✔ High Efficiency: 5-busbar monocrystalline cells
- ✔ All-Weather Ready: Fully waterproof (IP65/67 rated)
- ✔ Low Light Performance: Excellent in overcast conditions
- ✔ Pre-Wired: 90cm cable with MC4 connectors
Technical Specs
| Peak Power | 80W |
| Max Power Voltage (Vmp) | 19.84V |
| Max Power Current (Imp) | 4.03A |
| Open Circuit Voltage (Voc) | 23.15V |
| Short Circuit Current (Isc) | 4.26A |
| Dimensions | 800 x 580 x 30 mm |
| Weight | 4.9 kg |
Compatibility / Fitment Guide
| System Type | Application | Notes |
|---|---|---|
| 12V Battery Banks | Leisure/Marine | Ideal for campervans, caravans, and motorhomes. |
| Remote Monitoring | CCTV / Telemetry | Suited for 24/7 off-grid equipment. |
| Sheds & Workshops | Lighting / Charging | Requires Charge Controller for battery safety. |
OEM Cross Reference
| Manufacturer Part Number (MPN) | SWG-80M |
| EAN / Barcode | 5060297349782 |
| Manufacturer Reference | Photonic Universe 80W 12V Mono |
Installation Guide

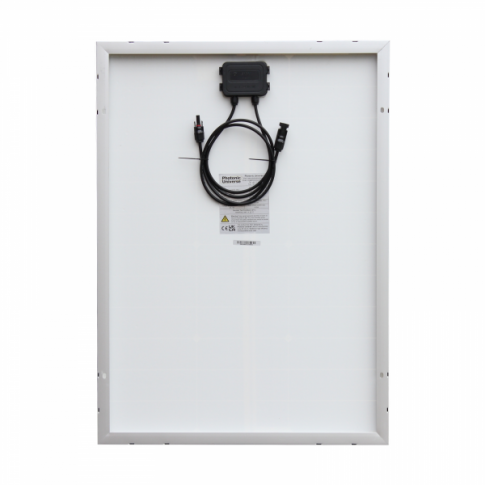

This panel comes pre-fitted with 2 x 90cm of high-quality 2.5mm² solar cable and MC4 connectors. For a standard 12V battery setup, this panel must be connected to a solar charge controller (PWM or MPPT) rather than directly to the battery to prevent overcharging. Mounting can be achieved via standard Z-brackets or corner mounts using the four pre-drilled mounting holes on the frame.
Questions & Answers
Is this a genuine original part?
This is a premium high-efficiency monocrystalline solar panel supplied under the Solarika brand, meeting the exact specifications of the industry-standard SWG-80M reference.
How do I know if it is compatible?
If you are charging a 12V battery system or replacing an 80W rigid panel with the same dimensions (800x580mm), this is a guaranteed direct-fit upgrade.
Can I use this panel in high-temperature climates?
Yes, the monocrystalline cells in the SWG-80M are specifically selected for their low-temperature coefficient, allowing them to maintain high efficiency even in hot climates or under direct summer sun.
Note: Please verify your installation space against the dimensions (800x580mm) before purchasing. Ensure a suitable charge controller is used for battery applications.
