80W 12V folding solar charging kit for motorhome, caravan, boat or any other 12V system
80W 12V folding solar charging kit for motorhome, caravan, boat or any other 12V system
SKU:SWD-FWP-80M
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
80W 12V Folding Solar Charging Kit
Portable Power for Motorhomes, Caravans & Boats | Model: SWD-FWP-80M

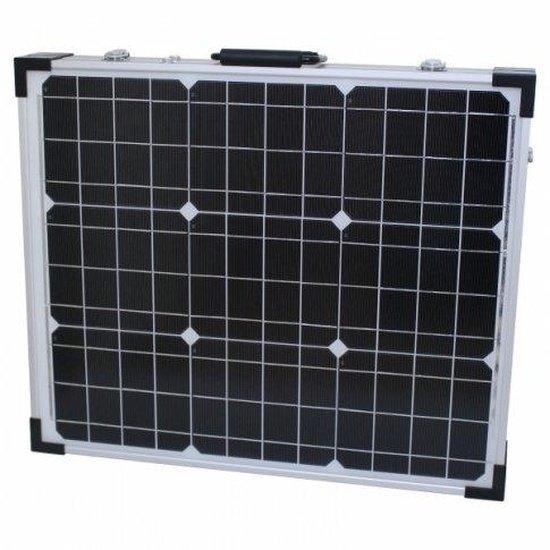

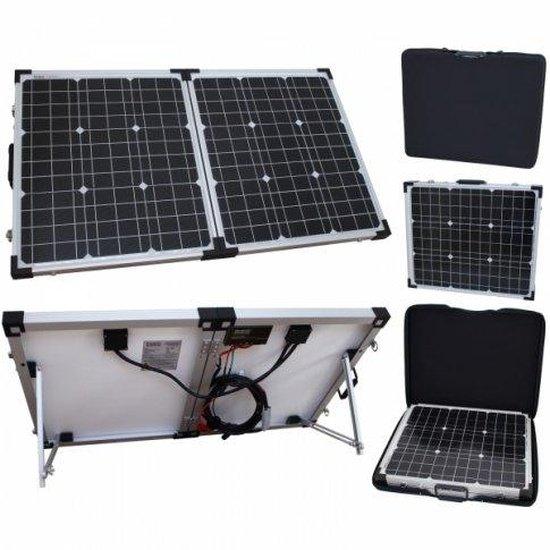

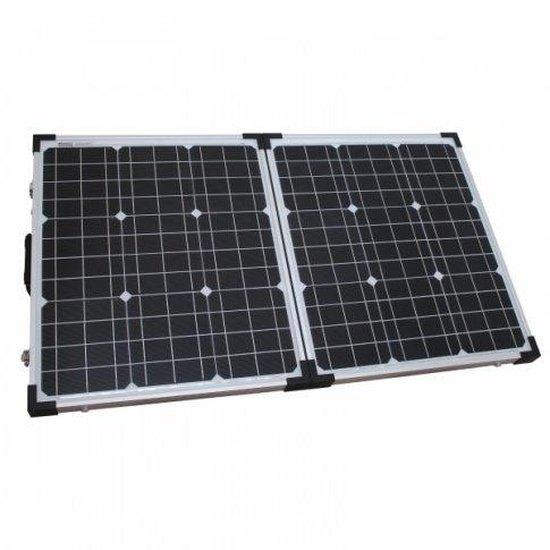

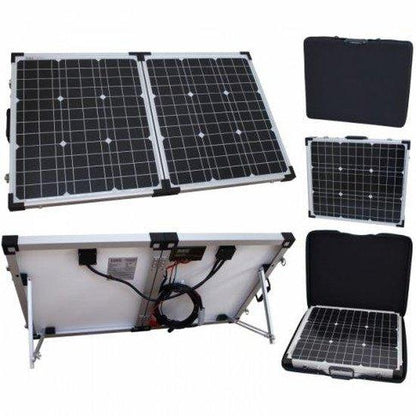

The Photonic Universe 80W 12V Folding Solar Charging Kit (SWD-FWP-80M) provides a robust and portable off-grid power solution for various 12V systems. Designed for adventurers and travellers, this kit delivers reliable energy for motorhomes, caravans, boats, and other mobile applications, ensuring your batteries remain charged and ready for use.
This comprehensive kit includes high-efficiency monocrystalline solar panels, an advanced 10A IP67 waterproof solar charge controller, an adjustable stand, and all necessary cables and accessories for immediate setup and operation.
KIT INCLUDES: 80W folding solar panel, 10A IP67 charge controller, 5m cable with battery plug & fuse, crocodile clips, protective case, manual.
Key Features
| ▶ 80W Monocrystalline Panels — High-efficiency cells for effective power generation. |
| ▶ IP67 Waterproof Controller — Advanced 10A charge controller sealed for all-weather performance. |

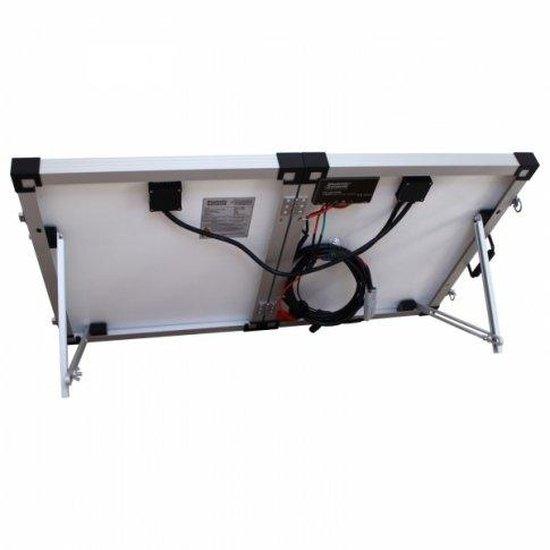

| ▶ Robust & Portable Design — Features an adjustable aluminium stand, integrated handle, and secure latches. |

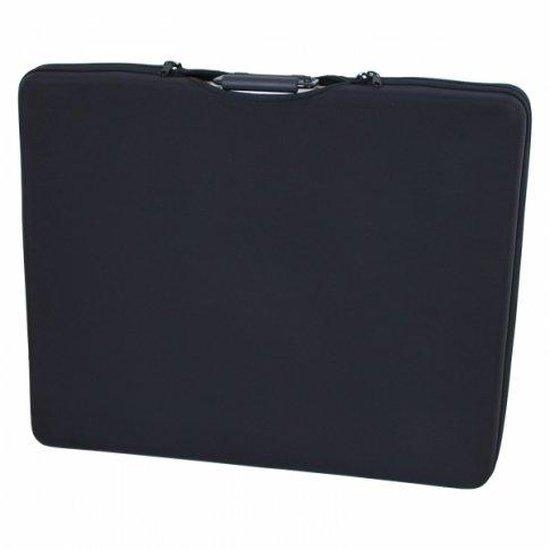

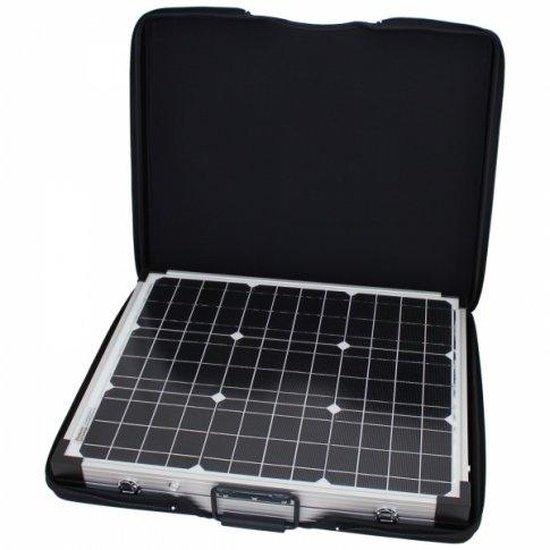

| ▶ Protective Carry Case — Durable, foam-lined case safeguards panels during transport and storage. |
| ▶ Smart Battery Charging — Supports sealed, gel, and flooded 12V batteries with PWM technology. |
| ▶ Optional Monitoring — Compatible with remote meter, Wi-Fi module, or PC connection for detailed control (accessories sold separately). |
| ▶ Ready to Use — Supplied with 5-meter cable, battery plug, fuse, and crocodile clips for quick setup. |
Technical Specifications
| Parameter | Value |
|---|---|
| Peak Power (Pmax) | 80W |
| Max Power Voltage (Vmp) | 17.5V |
| Max Power Current (Imp) | 4.44A |
| Open Circuit Voltage (Voc) | 21.6V |
| Short Circuit Current (Isc) | 4.8A |
| Power Allowance | +/- 3% |
| Dimensions (folded) | 51 x 55 x 6 cm |
| Weight | 10.5kg |
Charging & Battery Modes
The integrated 10A solar charge controller is designed for smart and safe battery management. It features Pulse Width Modulation (PWM) technology to optimise charge acceptance and extend battery lifespan. The controller continuously monitors the battery's charge status and provides comprehensive overcharge protection.
It is compatible with various 12V battery types, including sealed, gel, and flooded batteries, offering specific charging parameters for each to ensure peak efficiency. The IP67 waterproof rating ensures the controller is fully sealed and safe for outdoor use in all weather conditions.
For advanced users, the controller supports optional monitoring and customisation via a Remote Meter MT50, Wi-Fi module with a mobile app, or a PC/laptop connection (RS485 to RJ45/USB cables and accessories sold separately). These options allow access to vital charging data and the ability to adjust settings such as battery type, capacity, charging voltages, and load parameters.
Typical Applications
| Application | Description |
|---|---|
| Motorhomes & Caravans | Provides supplementary or primary charging for leisure batteries, powering lights, pumps, and small appliances on the go. |
| Boats & Marine Vessels | Ideal for maintaining 12V boat batteries, suitable for small craft, yachts, and canal boats for navigation and cabin power. |
| Off-Grid Camps & Sheds | Powers remote setups where mains electricity is unavailable, such as camping trips, garden sheds, or temporary shelters. |
| Emergency Backup | A portable power source for critical 12V devices during power outages or in remote locations. |
Built-In Protection Functions
The advanced 10A solar charge controller features comprehensive protection for your battery and system. This includes overcharge protection to prevent battery damage • the controller constantly monitors the battery's state of charge • its IP67 rating ensures complete sealing against dust and water ingress, making it safe for outdoor use in diverse weather conditions.
Common Questions
What battery types are compatible with this kit?
The included 10A solar charge controller is compatible with 12V sealed, gel, and flooded lead-acid batteries. It offers specific charging parameters for each type to ensure optimal performance and battery longevity.
Can this kit be used in all weather conditions?
Yes, the kit is designed for outdoor use. The solar panels are robust, and the advanced 10A solar charge controller has an IP67 waterproof rating, meaning it is fully sealed against dust and water. However, it is advisable to keep the Anderson plug and metal connectors on the battery cable away from direct moisture to ensure optimal longevity.
Are monitoring accessories included with the kit?
The kit includes the core components for charging. Optional accessories such as the Remote Meter MT50, Wi-Fi module, or PC connection cables (RS485 to RJ45/USB) are available separately if you wish to monitor and customise the controller's settings.
How easy is it to set up?
The kit is designed for immediate use. Simply connect the provided cables to your 12V battery and position the folding panels using the adjustable stand in a well-lit area. A detailed instruction manual is included for guidance.
Installation Notes
- Ensure correct polarity when connecting to your 12V battery system.
- Position the solar panels to maximise exposure to direct sunlight.
- Refer to the included instruction manual for detailed connection diagrams and operational guidelines.
- While the controller is IP67 rated, protect all cable connections from prolonged exposure to moisture.
- For optimal performance, ensure the battery bank is adequately sized for the 80W solar input.
Before You Buy
- Verify this 80W kit meets your specific 12V power requirements.
- Confirm your battery type (sealed, gel, or flooded) is compatible with the charge controller.
- Consider if optional monitoring accessories are required for your application.
- Measure the available space for the folded kit (51 x 55 x 6 cm) for storage and transport.
- Consult a qualified installer if you are unsure about any aspect of system integration.
Please verify all specifications and compatibility requirements before purchase. This product is backed by a 1-year warranty, with solar cells guaranteed to produce at least 90% nominal power for 10 years and 80% for 25 years.
