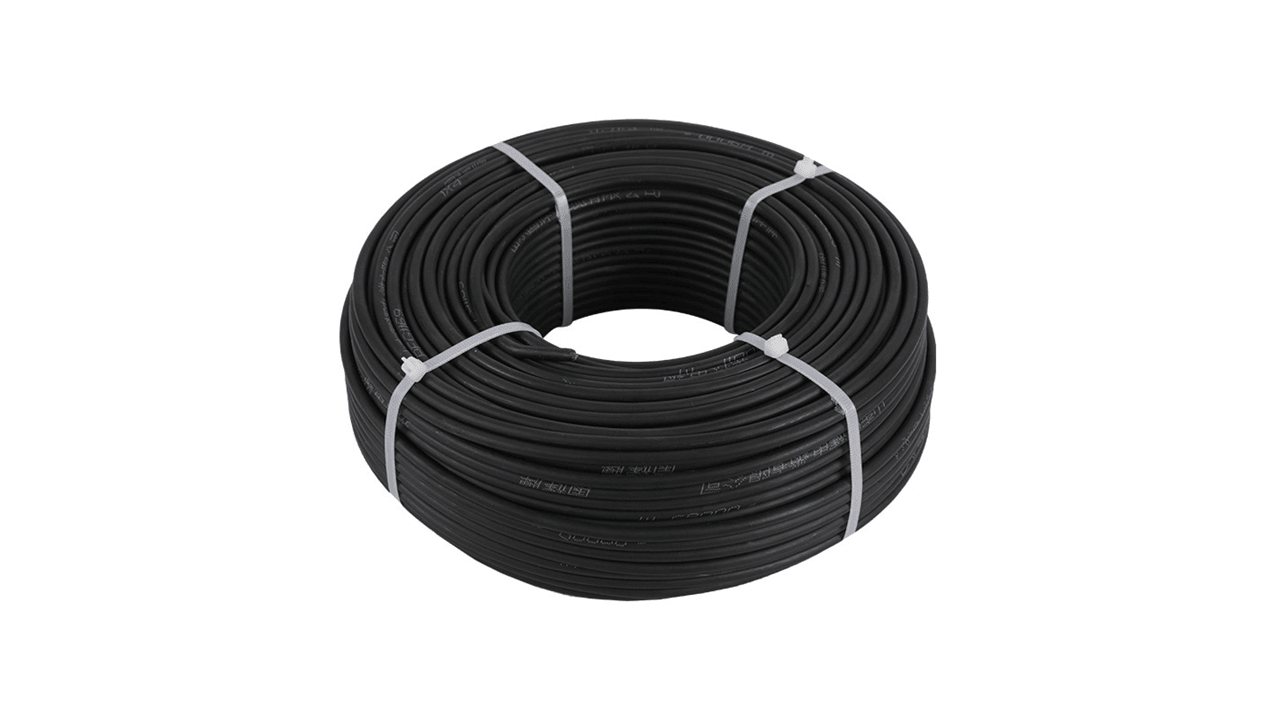

6mm2 single-core DC solar cable 100m - Black

6mm2 single-core DC solar cable 100m - Black

SKU:CABLE6-1-100

Regular price £174.24 GBP
Regular price £209.00 GBP Sale price £174.24 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

6mm2 single-core DC solar cable 50m - Black


#1: CABLE6-1-100 Cables - DC Cables



    6 mm single-core, black, 100m

    100m solar cable with length label

    Manufactured against the latest European Standard EN 50618 and with the harmonised designation H1Z2Z2-K, these Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to�1.5kV�between conductors as well as between conductor and earth, and not exceeding�1800V.�

    EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath.

    Cables are required to be tested at a voltage of 11kV AC 50Hz and have an operating temperature range of -40oC to +90oC. H1Z2Z2-K supersedes the previous T�V approved PV1-F cable.
