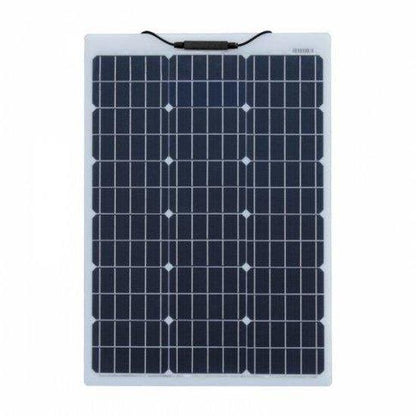

60W Reinforced semi-flexible solar panel with a durable ETFE coating
60W Reinforced semi-flexible solar panel with a durable ETFE coating
SKU:ARFLX-60M
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

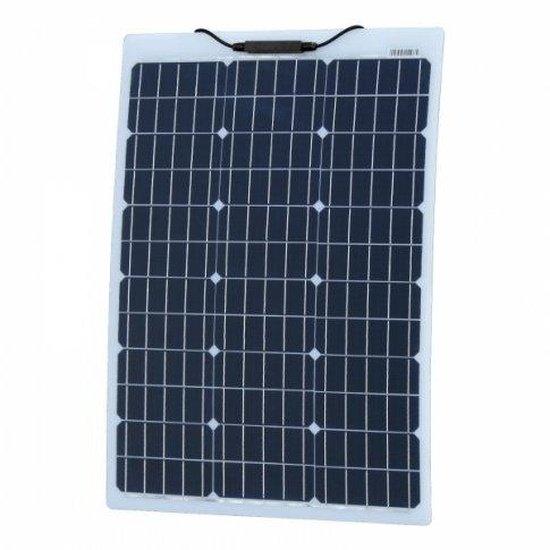

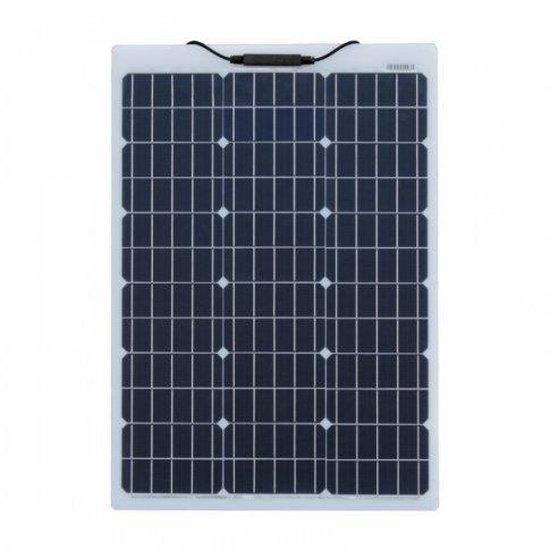

60W Reinforced Semi-Flexible Solar Panel
Durable ETFE Coating | Monocrystalline Cells | Model: ARFLX-60M
The Photonic Universe 60W Reinforced Semi-Flexible Solar Panel (ARFLX-60M) is engineered for demanding outdoor environments, providing reliable free electricity for a variety of 12V applications. Featuring high-efficiency monocrystalline solar cells, this panel is ideal for charging batteries in motorhomes, caravans, campers, and boats, as well as for off-grid solar lighting and backup power systems. Its robust construction ensures long-term performance and durability.
This panel stands out with its unique 7-layer construction, incorporating an embedded sheet of anodised aluminium for enhanced strength and resilience. The surface is protected by a strong ETFE material, known for its superior service life compared to standard semi-flexible panels. This makes the ARFLX-60M highly resistant to cracking, delamination, and corrosion, while its lightly textured, anti-reflective coating maximises light absorption for increased efficiency.
IMPORTANT NOTE: A solar charge controller is required to safely charge 12V batteries with this panel. It cannot be connected directly to a battery.
Key Features
| ▶ Reinforced 7-Layer Design — Features an embedded anodised aluminium sheet for exceptional strength. |
| ▶ Durable ETFE Surface — Offers extended service life, high resistance to cracking, delamination, and corrosion. |
| ▶ High-Efficiency Monocrystalline Cells — Utilises advanced 5-busbar technology for superior power output in limited spaces and warmer climates. |
| ▶ Semi-Flexible Design — Conforms to slightly curved surfaces, allowing for bonding or traditional bolt/screw fixing. |
| ▶ Lightweight Construction — Weighs only 2.35 kg, ideal for vehicles and applications where weight is a concern. |
| ▶ Salt Water & Walkable Resistant — Excellent for marine environments and can be walked on, perfect for boats and yachts. |
| ▶ Waterproof & Pre-wired — Sealed design for all weather conditions, fitted with 0.9m solar cable and MC4 connectors. |
Technical Specifications
| Parameter | Value |
|---|---|
| Peak Power (Pmax) | 60W |
| Maximum Power Voltage (Vmp) | 20.2V |
| Maximum Power Current (Imp) | 2.97A |
| Open Circuit Voltage (Voc) | 23.9V |
| Short Circuit Current (Isc) | 3.15A |
| Power Allowance Range | +/- 5% |

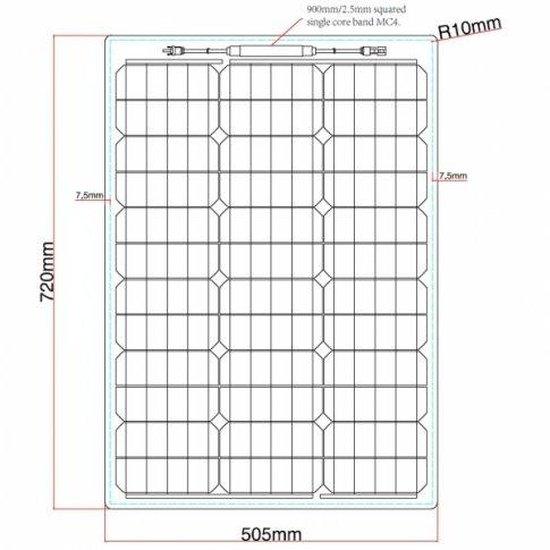

| Solar Panel Dimensions (L x W x D) | 720 x 505 x 4 mm |
| Junction Box Dimensions (L x W x D) | 90 x 16 x 16 mm |
| Weight | 2.35 kg |
| Cable Length & Cross Section | 2 x 0.9m (2.5mm²) |
| Connectors | MC4 Male & Female |
Operating & Power Guidance
This 60W semi-flexible solar panel is designed to convert sunlight into DC electricity, suitable for charging 12V battery banks when paired with an appropriate solar charge controller. Its monocrystalline cells offer high efficiency, meaning more power generation from a smaller footprint. The 5-busbar cell design further enhances performance, especially in conditions with higher ambient temperatures, making it a reliable choice for various climates.
The panel's output voltage (Vmp: 20.2V, Voc: 23.9V) is optimised for 12V battery charging systems. The pre-fitted MC4 connectors simplify integration into existing solar setups or for connecting multiple panels in series or parallel, depending on your system's voltage and current requirements. Always ensure correct polarity and use suitable cabling for your installation.
Typical Applications
| Application | Description |
|---|---|
| Motorhomes & Caravans | Provides auxiliary power for onboard appliances and battery charging, ideal for curved roofs. |
| Boats & Yachts | Resistant to salt water and walkable, perfect for marine environments to maintain battery charge. |
| Off-Grid Systems | Suitable for remote cabins, sheds, or small independent power setups where grid connection is unavailable. |
| Solar Lighting & Backup | Powers outdoor lighting, security cameras, or provides emergency backup power for critical small loads. |
Built-In Protection Functions
The Photonic Universe 60W Reinforced Semi-Flexible Solar Panel is designed with inherent durability and protection. Its robust 7-layer construction with anodised aluminium reinforcement and a strong ETFE surface provides excellent resistance against environmental factors such as UV radiation, moisture, and physical impact. The sealed, waterproof design ensures reliable operation in all weather conditions, while the high resistance to salt water makes it particularly suitable for marine applications. The use of high-quality 5-busbar monocrystalline cells contributes to stable and efficient power generation, reducing the risk of hot spots and degradation over time.
Common Questions
Does this solar panel require a charge controller?
Yes, a solar charge controller is essential for safely charging 12V batteries with this panel. It regulates the voltage and current from the panel to prevent overcharging and damage to your battery. The panel cannot be connected directly to a battery.
How flexible is this semi-flexible solar panel?
This panel is designed to be semi-flexible, allowing it to conform to slight curves on surfaces such as motorhome roofs or boat decks. While it can bend, it is not designed for extreme or repeated flexing. The aluminium reinforcement provides additional rigidity compared to standard flexible panels.
Can this panel be walked on?
Yes, due to its robust aluminium reinforcement and durable ETFE surface, this panel is designed to be walkable, making it suitable for applications like boat decks where occasional foot traffic may occur.
What type of battery can this panel charge?
When used with a compatible 12V solar charge controller, this panel can charge various types of 12V batteries, including lead-acid (sealed, gel, flooded, AGM) and lithium (LiFePO4) batteries. Always ensure your charge controller is set for the correct battery type.
Installation Notes
- Ensure the mounting surface is clean, dry, and structurally sound.
- For bonding, use appropriate marine-grade or automotive-grade adhesive/sealant.
- If bolting, pre-drill holes carefully and use suitable fasteners with washers to prevent damage.
- Connect the panel to a compatible solar charge controller before connecting to a battery.
- Observe correct polarity for all connections to prevent damage to the panel or system components.
- Route cables securely to prevent chafing or damage from movement.
- Consider professional installation for complex systems or if unsure about wiring.
Before You Buy
- Verify the panel's dimensions (720 x 505 x 4 mm) fit your intended installation space.
- Confirm your system voltage is 12V to match this panel's output characteristics.
- Ensure you have a suitable solar charge controller for your battery type and system size.
- Consider your average daily power consumption to determine if 60W is sufficient for your needs.
- Check the maximum open circuit voltage (Voc) of 23.9V is within your charge controller's input limits.
- Review local regulations or requirements for solar panel installations, especially for vehicles or marine use.
Please verify all specifications and compatibility requirements before purchase. This product is covered by a 1-year workmanship warranty provided by Photonic Universe.
