60W 12V Folding Solar Charging Kit
Model: SWD-FWP-60M | Portable Power for Motorhomes, Caravans & Boats
Discover effortless off-grid power with the Photonic Universe 60W 12V Folding Solar Charging Kit, your reliable solution for energy on the move. This all-in-one kit provides clean, silent electricity, ensuring your adventures are powered up, whether you're in a motorhome, caravan, boat, or any other 12V system. Designed for convenience and efficiency, it offers peace of mind for off-grid living and travel.

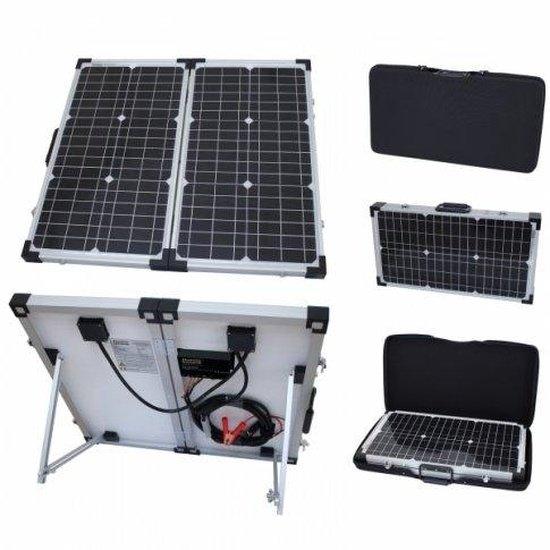

This kit comes complete with everything needed to start generating power straight out of the box, making setup incredibly simple. It features high-efficiency monocrystalline solar panels and an advanced 10A solar charge controller, all housed in a durable, protective case.
KEY COMPONENT: Includes an integrated, fully waterproof IP67-rated 10A PWM solar charge controller.
Key Features

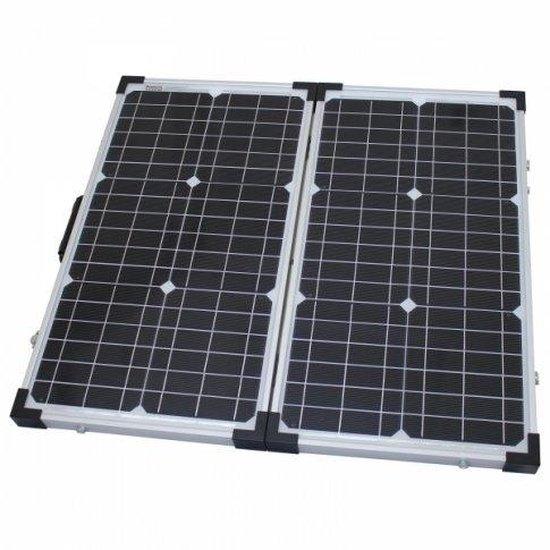

| ▶ 60W Monocrystalline Panels — High-efficiency 30W + 30W folding panels for maximum power capture. |
| ▶ Integrated 10A PWM Controller — Fully automatic, waterproof (IP67) charge controller with comprehensive protection. |

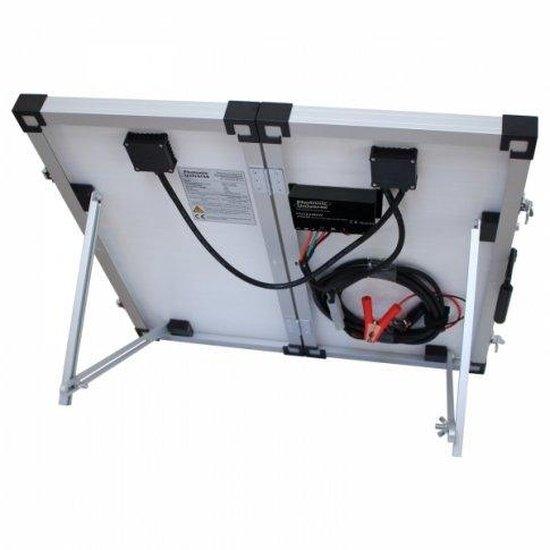

| ▶ Adjustable Aluminium Stand — Easy setup and optimal sun positioning for enhanced energy harvest. |
| ▶ Complete Cable Set — Includes 5-meter cable with battery plug, built-in fuse, and crocodile clips for immediate use. |

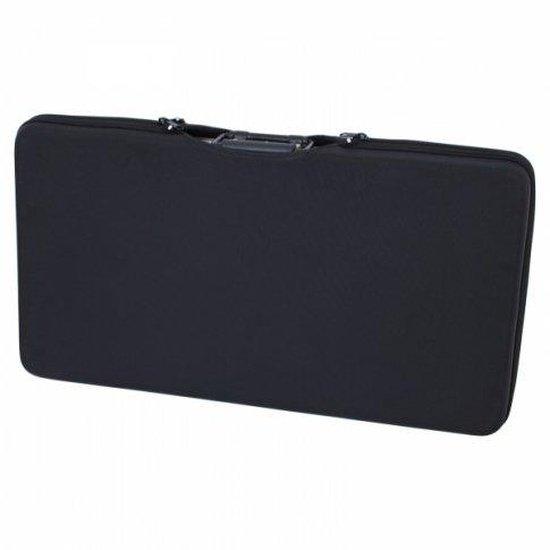

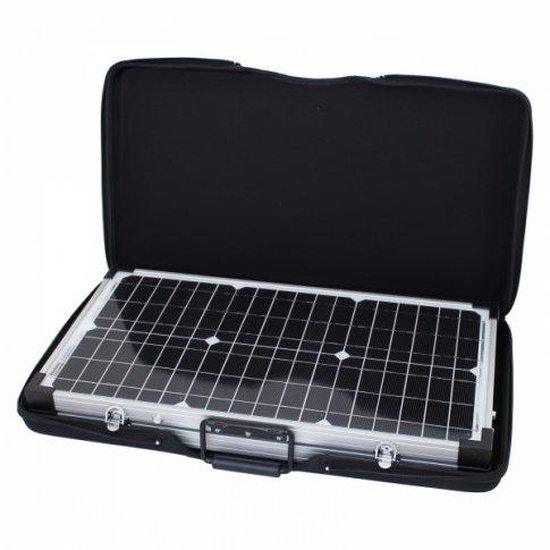

| ▶ Durable Protective Case — Foam-lined storage case prevents damage during transport and storage. |
| ▶ All-Weather Design — Fully waterproof construction ensures reliable performance in various conditions. |
Technical Specifications
| Parameter | Value |
|---|---|
| Peak Power | 60W |
| Maximum Power Voltage (Vmp) | 17.5V |
| Maximum Power Current (Imp) | 3.4A (2 x 1.7A) |
| Open Circuit Voltage (Voc) | 21.6V |
| Short Circuit Current (Isc) | 3.6A (2 x 1.8A) |
| Power Allowance | +/- 3% |
| Dimensions (folded) | 35 x 65 x 6 cm |
| Weight | 7.5 kg |
| Controller Type | 10A PWM, IP67 Rated |
| Battery Compatibility | 12V Sealed, Gel, Flooded Lead-Acid |
| Min. Recommended Battery Capacity | 30Ah |
| Operating Temperature | -35°C to +55°C |
Charging & Battery Modes
The advanced 10A PWM solar charge controller included in this kit is designed for optimal 12V battery charging and protection. It utilises Pulse Width Modulation (PWM) technology to enhance charge acceptance and extend battery lifespan.
| Feature | Description |
|---|---|
| PWM Charging | Optimises charge acceptance and prolongs battery life through intelligent pulsing. |
| Battery Type Selection | Compatible with 12V sealed, gel, and flooded lead-acid batteries, allowing selection for maximum efficiency. |
| 3-Stage Charging | Utilises bulk, absorption, and float stages for thorough and safe battery charging. |
Typical Applications
| Application | Description |
|---|---|
| Motorhomes & Caravans | Provides essential 12V power for lighting, appliances, and leisure batteries while touring. |
| Boats & Yachts | Ideal for charging marine 12V batteries, supporting navigation, communication, and onboard systems. |
| Camping & Off-Grid | Offers portable power for remote campsites, cabins, or any standalone 12V battery system. |
| Emergency Backup | A reliable power source for critical 12V devices during power outages or remote work. |
Built-In Protection Functions
The integrated 10A solar charge controller is equipped with a comprehensive set of safety features to protect your battery and system. These include protection against overcharge, reverse current flow (from battery to panel at night), incorrect polarity, short circuits, over-discharge, over-voltage, and overheating.
Common Questions
What battery types are compatible with this kit?
This kit is designed for use with 12V sealed, gel, and flooded lead-acid batteries. It is not suitable for lithium battery types.
Is the kit waterproof for outdoor use?
Yes, the kit features a completely waterproof design, including an IP67-rated solar charge controller, making it suitable for all weather conditions.
What is the minimum recommended battery capacity?
For optimal performance and to prevent over-discharge, a minimum battery capacity of 30Ah is recommended for use with this 60W kit.
Does the kit come with everything needed for immediate use?
Yes, the kit is supplied with all necessary components for immediate battery charging, including the panels, controller, cables, fuse, crocodile clips, and a protective case.
Installation Notes
- The kit comes with a clear instruction manual for straightforward setup and connections.
- Ensure the adjustable stand is positioned to angle the panels directly towards the sun for maximum energy output.
- While the kit is fully waterproof, keep the Anderson plug and any metal connectors on the battery cable away from prolonged moisture for optimal performance and longevity.
- Connect the kit directly to your 12V lead-acid battery using the supplied cables and clips.
Before You Buy
- Verify your battery type is 12V lead-acid (sealed, gel, or flooded) as this kit is not compatible with lithium batteries.
- Consider your daily power needs to ensure 60W is sufficient for your intended applications.
- Ensure you have adequate space for the folded dimensions (35 x 65 x 6 cm) during transport and storage.
- Familiarise yourself with the basic principles of solar charging for safe and efficient operation.
Always verify product specifications and compatibility with your existing system before purchase. This product is covered by a 1-year workmanship warranty from Photonic Universe for the solar panel and by the manufacturer for the charge controller. Solar cells are guaranteed to maintain at least 90% nominal power for 10 years and 80% for 25 years.
