RELIABILITY: Features an advanced aluminum heat-sink chassis and comprehensive circuit protection, ensuring stable performance even under maximum load.

Key Features

• ✔ High Power Output: Delivers continuous 60A (720W)
• ✔ Efficiency: >90% conversion rate for minimal heat loss
• ✔ Protection Suite: Overload, Short-circuit & Over-temp
• ✔ Compact Design: Robust aluminum cooling fins
• ✔ Safety: Low and high battery voltage shutdown

Technical Specs

Input Voltage	20V – 37V DC
Output Voltage	12.5V – 13.5V DC
Output Current	60A (Peak 72A)
Isolation	Non-Isolated
Operating Temp	-40°C to +85°C
Dimensions	Approx. 150 x 86 x 56 mm

System Type	Application	Notes
Heavy Commercial	Trucks, Buses, Coaches	Radios, GPS, Fleet Tracking
Marine Vessels	Yachts & Boats	12V Navigation & Lighting
Renewable Energy	24V Solar Battery Banks	Runs 12V Appliances
Earthmoving	Excavators & Machinery	Auxiliary Power Support

Mount the unit in a well-ventilated area to allow the aluminum fins to dissipate heat. Use appropriately gauged wiring for a 60 Amp load to prevent voltage drop. Connect the 24V input and 12V output to the provided terminal blocks, ensuring correct polarity. Professional installation is recommended for marine and heavy machinery applications.

Is this a genuine original part?

This is a premium-grade aftermarket replacement part, manufactured by solarika to meet or exceed original equipment (OE) standards for durability and electrical performance.

How do I know if it is compatible?

If your current system operates on 24V and you need to power 12V equipment requiring up to 60 Amps, this unit is a direct fit. Please verify the Cross Reference list above for specific part number matches.

Can this be used as a battery charger?

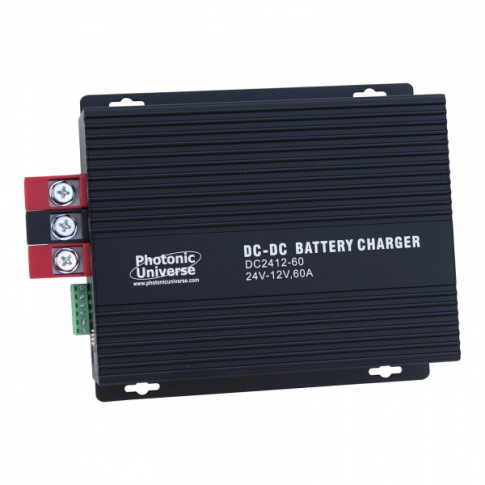

Yes, models with a 13.8V output characteristic, like the DC2412-60, can effectively maintain a 12V battery from a 24V source, though it is primarily designed as a constant voltage regulator.
