60A 12V Intelligent Automatic Multi-Stage Mains Battery Charger
Model BC1260 | 7-Stage Charging | For Lead Acid Batteries

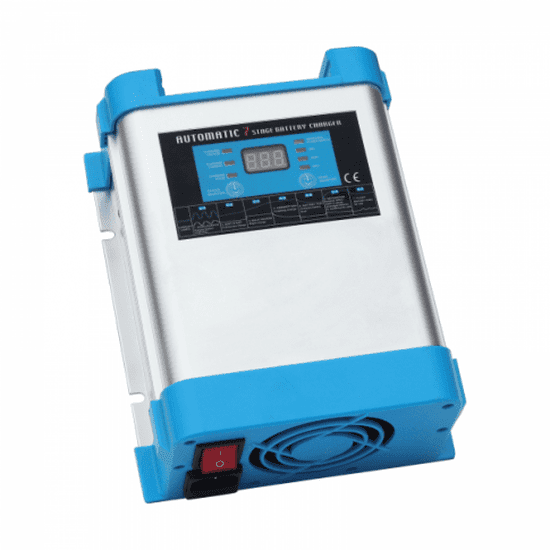

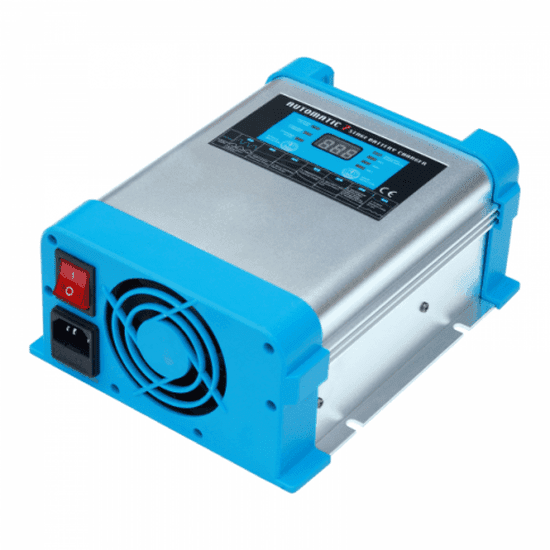

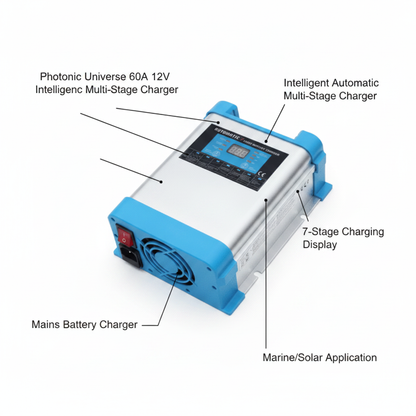

The Photonic Universe 60A 12V Intelligent Automatic Multi-Stage Mains Battery Charger (Model BC1260) is engineered for safe and efficient charging of 12V batteries or battery banks from a standard 220-240V AC mains power source. This advanced unit features a comprehensive 7-stage charging process, ensuring optimal battery health, faster charging, and protection against voltage fluctuations. It is designed for unattended operation, making it ideal for maintaining batteries in various applications.
Compatible with a range of 12V Lead Acid battery types, including AGM, Gel, and Wet cell, this charger can handle single batteries or multiple 12V batteries connected in parallel (provided they are of the same type, capacity, and age). Its robust design includes essential safety features and a clear LCD display for monitoring the charging process.

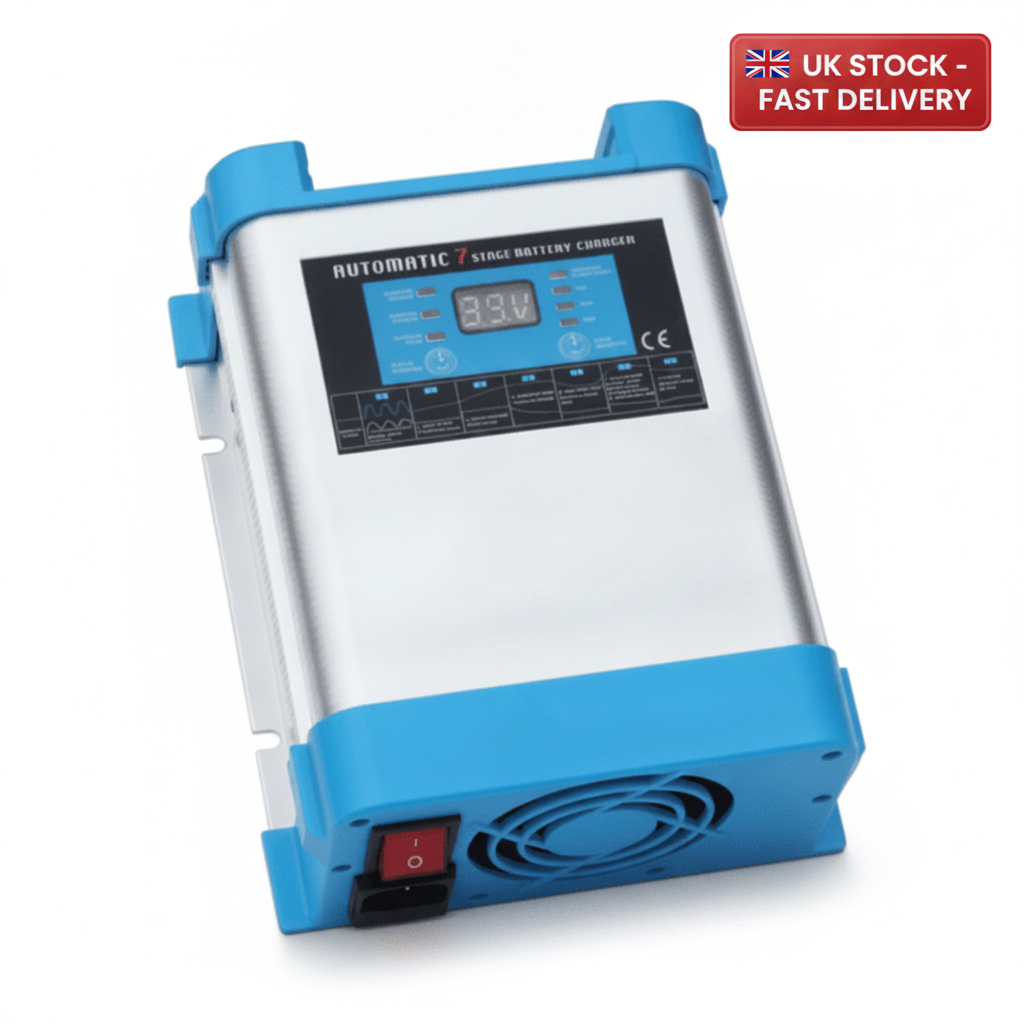

UK MAINS COMPATIBLE: Operates from 190V - 265V AC with a UK 3-pin plug for direct connection.
Key Features
| ▶ 7-Stage Intelligent Charging — Ensures optimal battery health and efficient power delivery. |
| ▶ Safe Unattended Operation — Built-in protections allow permanent connection without supervision. |
| ▶ Dead Battery Recovery — Desulphation stage helps restore deeply discharged batteries. |
| ▶ Power Pack Function — Provides direct 12V power to loads without a battery connected. |
| ▶ Automatic Temperature Control — Integrated fan activates to maintain optimal internal temperature. |

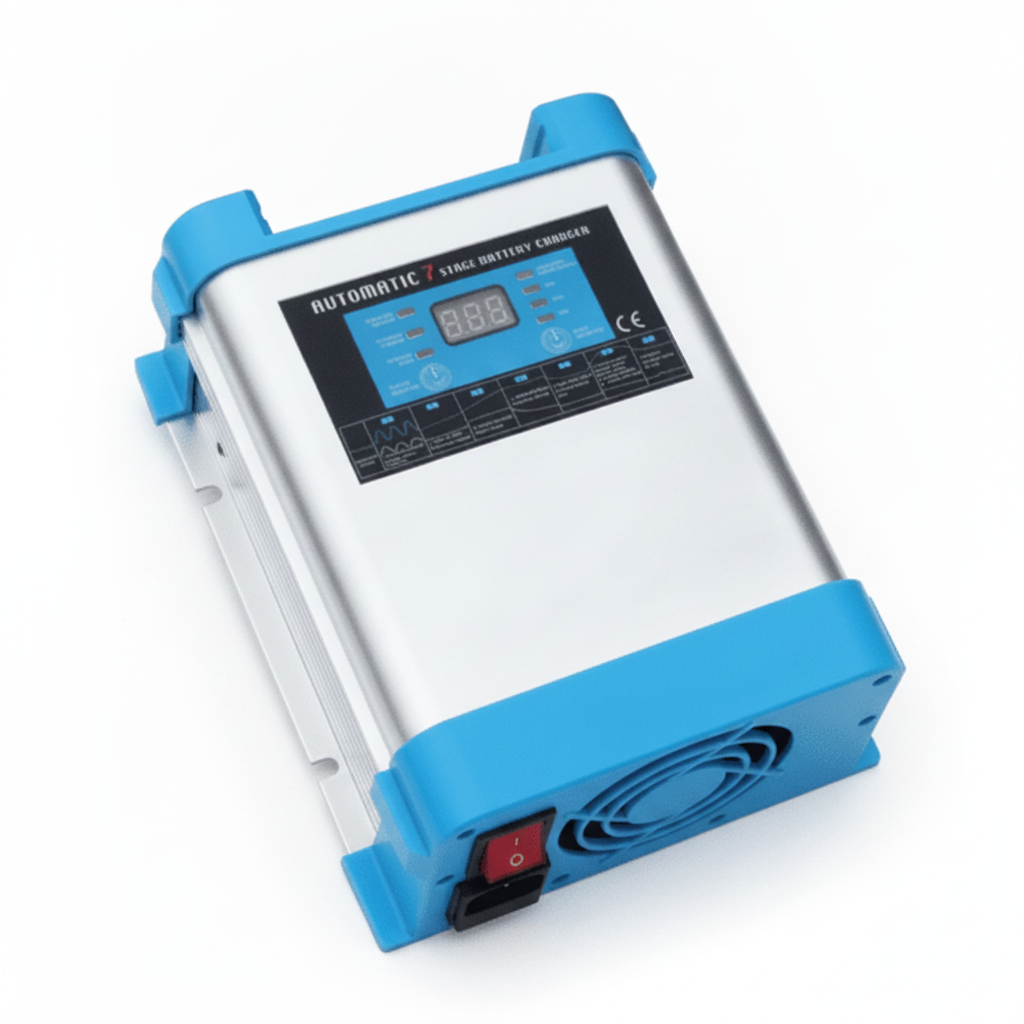

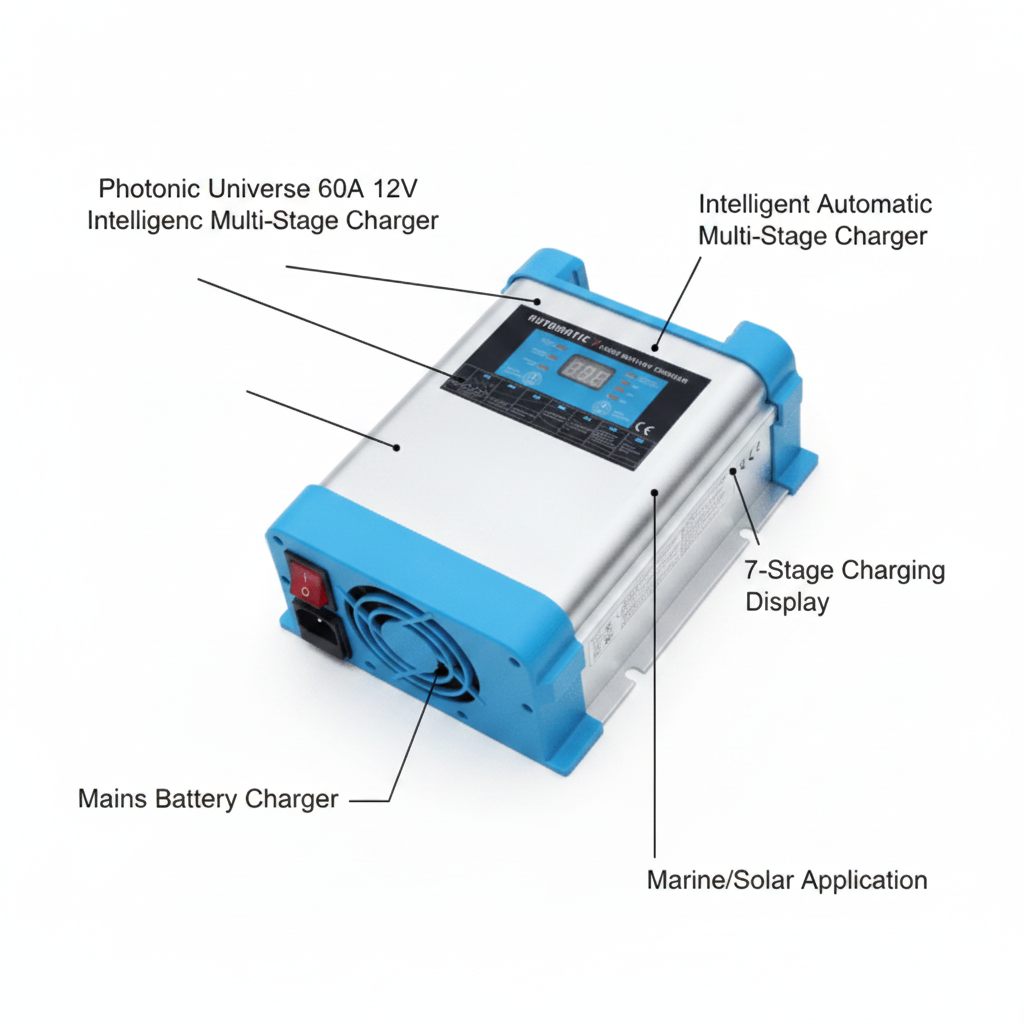

| ▶ Clear LCD & LED Display — Shows charging voltage, current, stage, and battery type at a glance. |
| ▶ Robust & Compact Design — Durable construction with isolated DC output for reliability. |
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage Range (AC) | 190V - 265V |
| Frequency | 50 Hz |
| DC Output Current | 60A |
| DC Output Voltage | 12V |
| Suggested Battery Capacity | 100 - 500Ah |
| Bulk/Absorption Voltage | 14.2V - 14.8V DC |
| Float Charging Voltage | 13.2V - 13.8V DC |
| Efficiency | <88% |
| Operating Temperature | 0°C to 40°C |
| Dimensions (L x W x H) | 226 x 175 x 95 mm |
| Weight | 2.5 kg |
Charging & Output Modes
| Mode | Description |
|---|---|
| 7-Stage Charging Process | An advanced algorithm that optimises charging for efficiency and battery longevity. |
| Desulphation Stage | Recovers lost capacity from older or deeply discharged batteries by breaking down sulphation. |
| Boost-Charging Feature | Improves battery condition and can recover lost capacity, extending battery life. |
| Float Charging | Maintains full charge without overcharging, ideal for long-term connection. |
| Power Pack Function | Provides a direct, stable 12V power supply to a load (e.g., a 12V fridge) even without a battery connected. |
Typical Applications
| Application | Description |
|---|---|
| Caravans & Motorhomes | Efficiently charge leisure batteries when connected to campsite mains power. |
| Marine Vessels | Maintain boat service batteries from shore power, ensuring readiness for voyages. |
| Off-Grid Systems | Provides a reliable mains charging option for battery banks in cabins or remote setups. |
| Workshop & Garage Use | Ideal for charging and maintaining vehicle batteries, ensuring they are always ready for use. |
Built-In Protection Functions
This Photonic Universe charger incorporates multiple safety features for reliable and secure operation. It includes protection against DC short circuit, overheating, overcharging, and reverse polarity of the battery. The charging voltage is smooth and uninterrupted, free from damaging peaks, ensuring safe charging even when left unattended.
Common Questions
What battery types is this charger compatible with?
This charger is compatible with 12V Lead Acid batteries, including AGM, Gel, and Wet cell types.
Can I leave the charger connected to my battery indefinitely?
Yes, the charger features built-in safety functions and a float charging stage, allowing it to be left permanently connected for automatic, unattended charging without risk of overcharging.
What is the 'Power Pack Function' for?
The Power Pack Function allows the charger to provide a direct supply of 12V power to a load (e.g., a 12V fridge) even when no battery is connected, which is useful during battery replacement or for direct power needs.
How does the 7-stage charging process benefit my battery?
The advanced 7-stage charging process ensures a more efficient and thorough charge, including stages for desulphation and boost charging, which can recover lost capacity and extend the overall lifespan of your battery.
Installation Notes
- Ensure adequate ventilation around the charger and battery during operation.

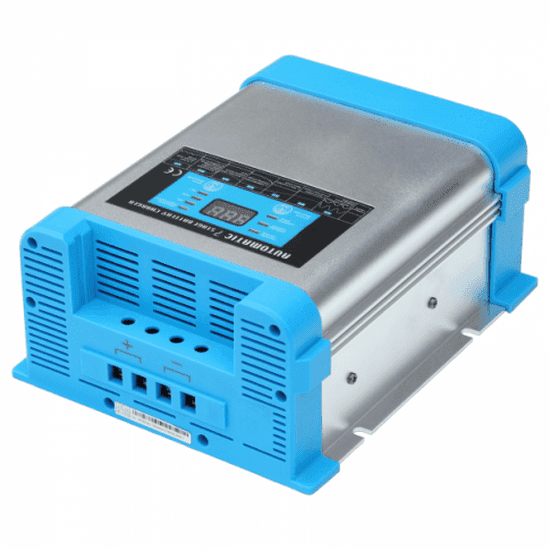

- Connect the charger to the battery terminals correctly, observing polarity.
- Always connect the battery first, then plug the charger into the mains power.
- Disconnect the mains power before disconnecting the battery.
- Consider installing an inline fuse or circuit breaker between the battery and charger for added protection, rated according to the charger's maximum output current.
Before You Buy
- Verify your battery system is 12V DC to ensure compatibility with this charger.
- Confirm your battery type is Lead Acid (AGM, Gel, or Wet cell) for optimal performance.
- Check your battery capacity falls within the suggested range of 100Ah to 500Ah.
- Ensure you have a suitable 220-240V AC mains power outlet available.
- Review the user manual for full wiring and operational details upon receipt.
Always verify product specifications and compatibility with your specific system requirements before purchase. This product is covered by a 1-year manufacturer warranty.
