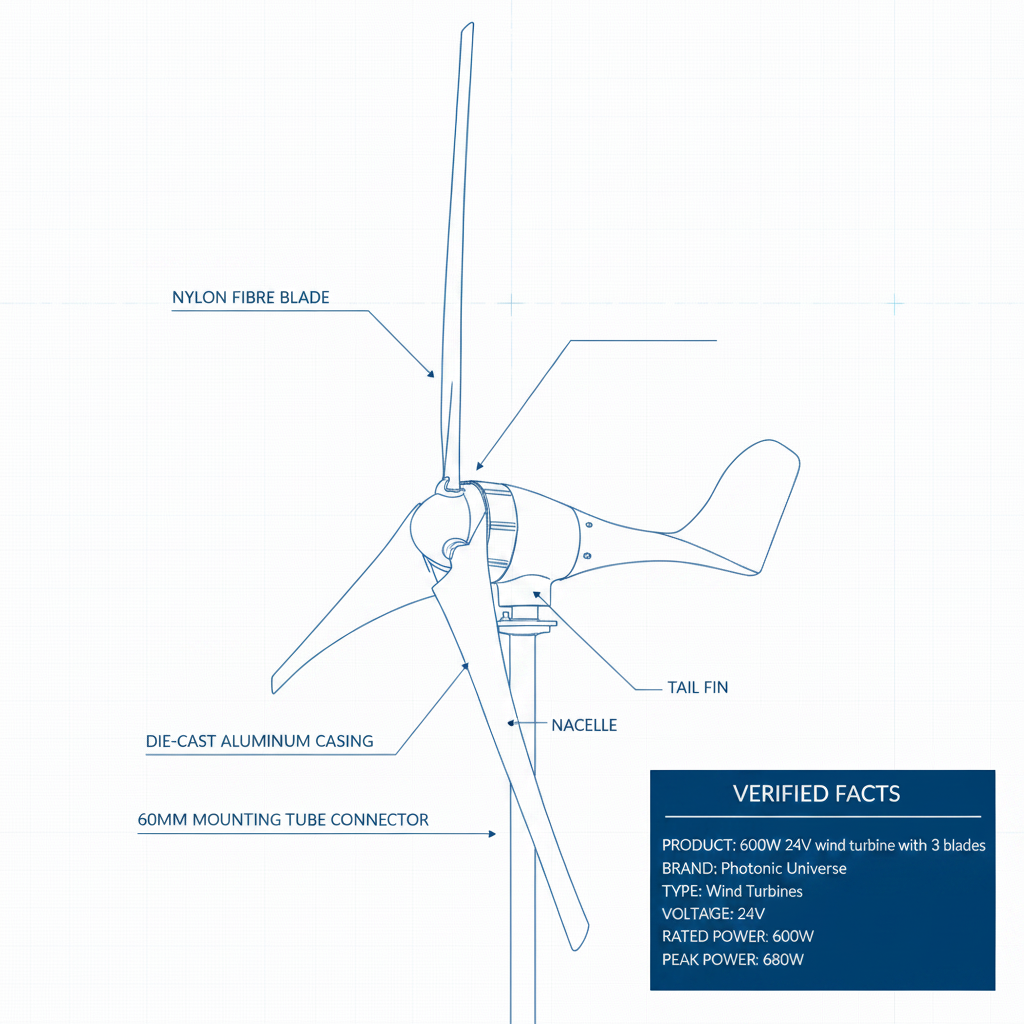

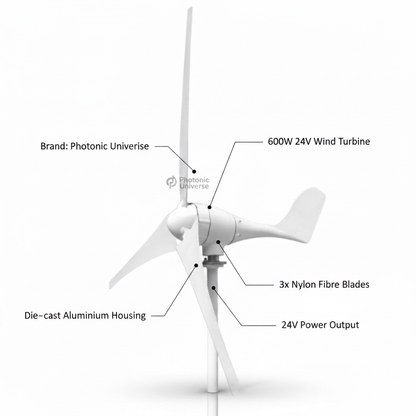

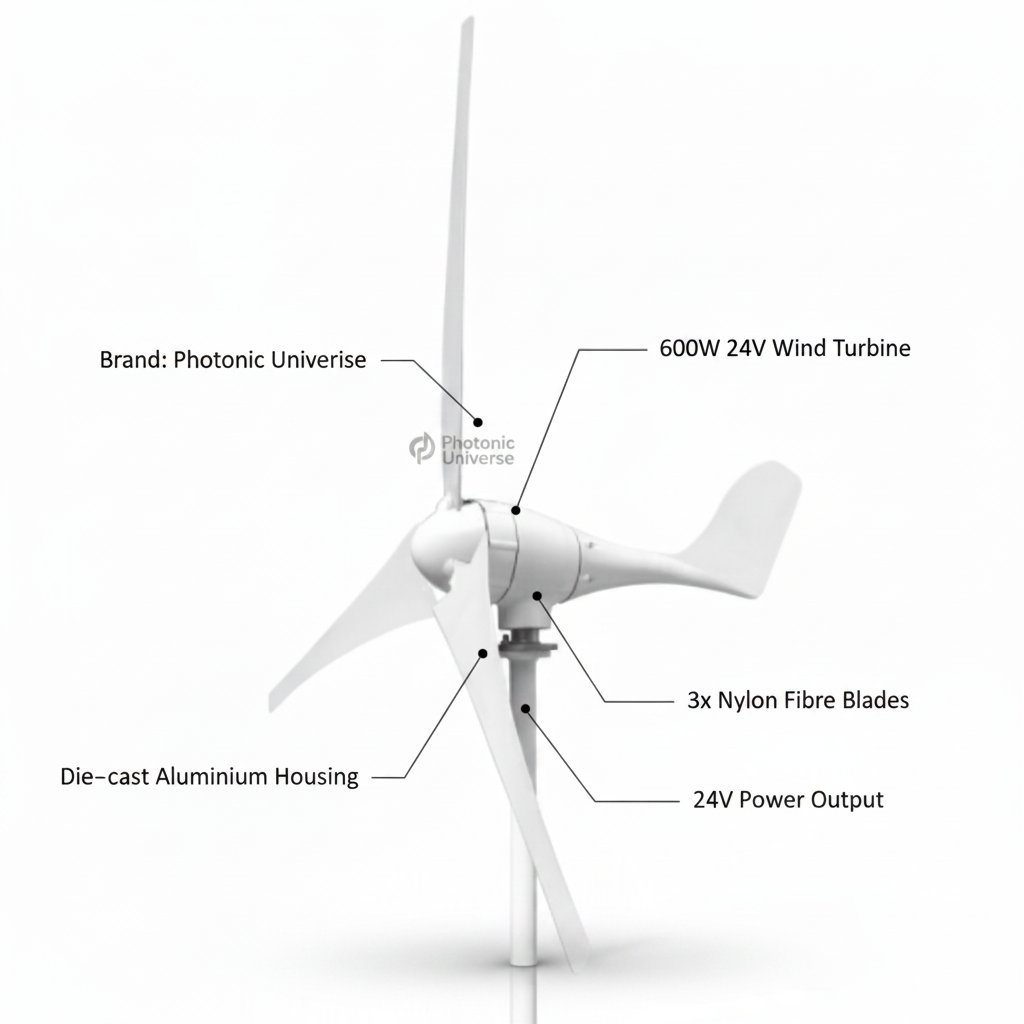

ADVANCED GENERATION: Utilizes a three-phase permanent magnet AC synchronous generator with high-performance NdFeB (Neodymium) magnets for maximum efficiency.

Key Features

• ✔ High-Strength Blades: Crafted from premium Nylon Fibre for durability.
• ✔ Robust Housing: Die-cast aluminium alloy casing for weather resistance.
• ✔ Low Startup: Begins generating at just 2.5 m/s wind speed.
• ✔ Universal Mounting: Standard 60mm tube connector.

Technical Specs

Rated Power	600W
Max Power	680W
Rated Voltage	24V DC (System)
Startup Wind Speed	2.5 m/s
Rated Wind Speed	11.5 m/s
Survival Wind Speed	45 m/s
Blade Number	3

System Element	Requirement	Notes
Battery Bank	24V Systems	Lead-Acid, AGM, or Gel recommended.
Mounting Pole	60mm Diameter	Tube connector fits over 60mm poles.
Charge Controller	3-Phase AC Controller	Requires a 600W+ 24V wind controller.

Installation requires a mounting pole (not included) and a 3-phase AC wind charge controller. The turbine generates 3-phase AC voltage; the controller converts this to DC to safely charge your 24V battery bank. Warning: Never connect the turbine directly to a battery without a suitable controller, as this will cause damage to the battery and turbine.

Is this a genuine original part?

This is a premium high-performance wind turbine distributed by Solarika, manufactured to exceed original industry standards for off-grid power efficiency.

How do I know if it is compatible?

Please verify your mounting pole is 60mm in diameter and your battery bank is configured for 24V. This unit uses a 3-wire AC connection common in 600W systems.

What is included in the box?

The package includes the WTJ600-24 turbine body, 3 nylon fibre blades, and the necessary assembly screws. Note that the mounting pole and charge controller are sold separately.
