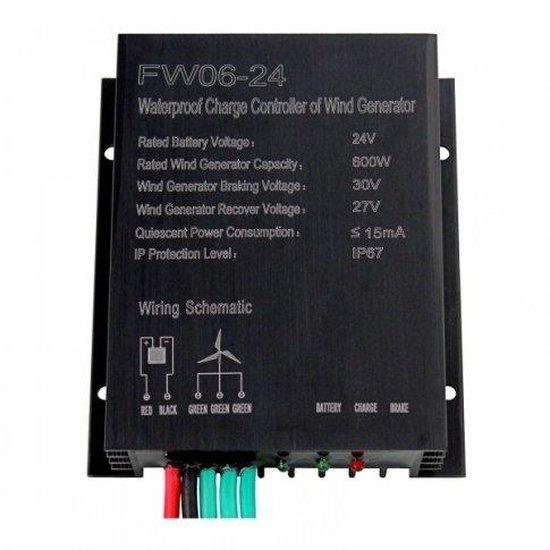

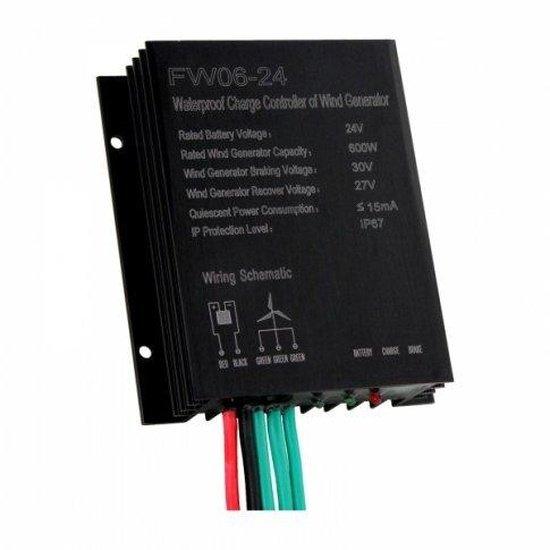

600W 24V Waterproof Wind Charge Controller
Model FW06-24 | For 24V Wind Turbines up to 600W | IP67 Rated
The Photonic Universe FW06-24 wind charge controller is engineered for efficient and safe charging of 24V lead-acid batteries using power generated from wind turbines. This robust regulator seamlessly converts the three-phase AC output from your wind generator into stable DC power, making it ideal for various off-grid and remote applications.
Featuring an intelligent automatic braking function, the controller safeguards both your battery from overcharging and the wind turbine from damage during high wind speeds. Its fully waterproof IP67-rated casing ensures reliable performance even when mounted outdoors, while clear LED indicators provide real-time status updates on system connection and turbine rotation.
SYSTEM COMPATIBILITY: Designed for 24V lead-acid battery banks and 24V three-phase AC wind turbines ranging from 100W to 600W.
Key Features
| ▶ 24V System Optimisation — Efficiently charges 24V lead-acid battery banks. |
| ▶ Automatic Braking — Protects the battery from overcharging and the turbine from high winds. |
| ▶ IP67 Waterproof Casing — Ensures full protection and suitability for outdoor installation. |
| ▶ AC to DC Conversion — Converts three-phase AC wind generator output to stable DC for charging. |
| ▶ LED Status Indicators — Provides clear visual feedback on system operation and turbine speed. |
| ▶ Dual Safety Protection — Advanced safeguards for both the battery and the wind turbine. |
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FW06-24 |
| System Voltage | 24V |
| Max Wind Turbine Power | 600W (Min 100W) |
| Battery Type | Lead-Acid |
| Protection Rating | IP67 |
| Braking Method | Automatic |
| Wind Generator Braking Voltage | 30V |
| Wind Generator Recovery Voltage | 27V |
| Display Mode | LED Indicators |
| Ambient Temperature | -35°C to +75°C |
| Dimensions (L x W x H) | 100 x 87 x 28 mm |
| Weight | 400g |
| Quiescent Current | ≤15 mA |
Charging & Battery Management
The Photonic Universe FW06-24 controller is designed to manage the charging process from a wind turbine to a 24V lead-acid battery bank with precision and safety. It continuously monitors the battery voltage and wind turbine output to ensure optimal charging.
When the battery reaches a full charge or if high wind speeds are detected, the intelligent automatic braking system activates. This slows down the wind turbine, preventing overcharging of the battery and protecting the turbine from potential damage, thereby extending the lifespan of your entire wind power system.
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Power Systems | Essential for charging batteries in remote homes, cabins, or workshops relying on wind energy. |
| Caravans & Motorhomes | Provides reliable auxiliary power for mobile living and touring. |
| Marine Vessels | Suitable for charging 24V battery banks on boats and yachts, especially in windy coastal areas. |
| Remote Monitoring Stations | Ensures continuous power supply for weather stations, security cameras, or telecommunication equipment. |
Built-In Protection Functions
The Photonic Universe FW06-24 wind charge controller incorporates multiple safety features to ensure the longevity and safe operation of your wind power system. These include: Automatic braking for overcharge protection • High wind speed protection • Battery reverse polarity protection • Over-current protection.
Common Questions
What type of batteries is this controller compatible with?
This controller is specifically designed for use with 24V lead-acid battery banks.
Can this controller be installed outdoors?
Yes, with its IP67 waterproof rating, the FW06-24 is fully protected against dust and water ingress, making it suitable for outdoor mounting in various weather conditions.
How does the automatic braking function work?
The intelligent automatic braking function engages when the battery is fully charged (at 30V) or when excessively high wind speeds are detected. This action protects the battery from overcharging and prevents damage to the wind turbine. The turbine will recover charging when the voltage drops to 27V.
What type of wind turbine is compatible with this controller?
This controller is compatible with 24V three-phase AC wind turbines with a power output between 100W and 600W.
Installation Notes
- Ensure the wind generator's output voltage matches the controller's rated battery voltage (24V).
- Connect battery positive and negative cables to the controller first, before connecting the three wind generator cables.
- Verify all connections are correct and secure to prevent abnormal system operation or component damage.
- Mount the controller in a well-ventilated area, even though it is waterproof, to aid heat dissipation.
- Refer to the included instruction manual for detailed wiring diagrams and operational guidance.
Before You Buy
- Confirm your wind turbine is a 24V three-phase AC model and its power output is between 100W and 600W.
- Ensure your battery bank is a 24V lead-acid type.
- Consider your installation environment; while IP67 rated, proper mounting and ventilation are always recommended.
- For complex setups, consulting a qualified electrician or renewable energy installer is advisable.
- Always review the product specifications and user manual to ensure full compatibility with your existing system.
Please verify all specifications and compatibility requirements before purchase. This product is covered by a 1-year warranty.
