RELIABILITY: Features M12 tin-plated copper studs for maximum conductivity and corrosion resistance, essential for marine and outdoor solar applications.

Key Features

• ✔ 600A Continuous current rating
• ✔ 2500A Cranking capacity (10 secs)
• ✔ Compatible with 12V, 24V, & 48V DC
• ✔ Ignition protected (safe for gas boats)
• ✔ Removable side plates for easy wiring

Technical Specs

Continuous Rating	600 Amps DC
Intermittent Rating	900 Amps DC
Cranking Rating	2500 Amps DC
Max Voltage	48V DC
Terminal Stud	M12 (12mm)

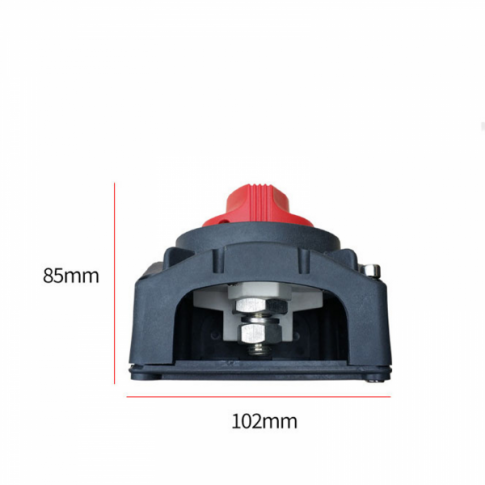

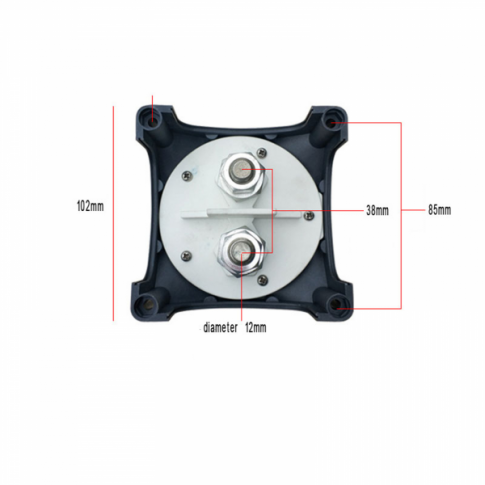

Dimensions	102 x 102 x 85 mm

System Type	Application	Notes
Solar Photovoltaic	Inverter & Battery Bank	Safely disconnects high-wattage inverters for maintenance.
Marine / Yacht	Main Engine Disconnect	Corrosion-resistant studs handle saltwater environments.
Motorhome / RV	Leisure Battery Isolation	Prevents parasitic drain during long-term storage.

1. Ensure all power sources are disconnected before installation. 2. Mount on a flat surface using the four pre-drilled holes. 3. Use M12 ring terminals for battery cable connections. 4. Torque terminals to 13.5 Nm (120 in-lb). 5. Re-check all connections for tightness after initial use. Professional installation by a qualified electrician is recommended for high-current DC systems.

Is this a genuine original part?

This is a premium quality Solarika replacement part, manufactured to meet or exceed original equipment (OE) standards for heavy-duty power isolation.

How do I know if it is compatible?

We recommend checking the SKU/MPN (BS-600). If your system requires a 600A disconnect with M12 studs, this is the industry-standard choice.

Can this be used with 48V Lithium (LiFePO4) batteries?

Yes, the BS-600 is rated for up to 48V DC, making it perfectly suited for modern 48V lithium-ion or LiFePO4 battery banks common in solar storage.
