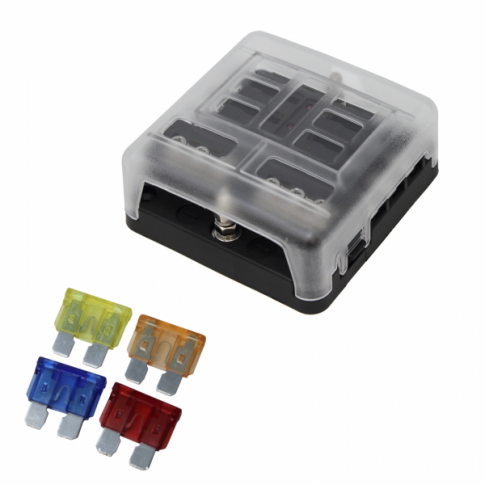

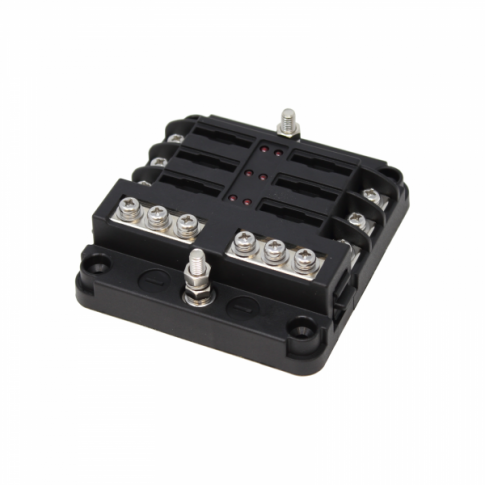

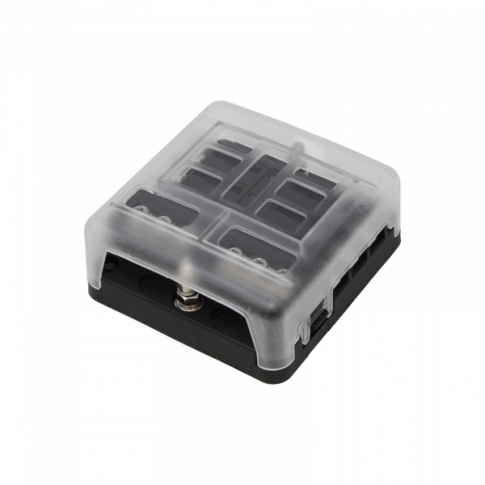

6 way fuse box with 12 blade fuses

6 way fuse box with 12 blade fuses

FB-6WAY

£19.99 GBP
£19.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

6-Way Blade Fuse Block | FB-6WAY

Professional Power Distribution with LED Fault Indicators

The Solarika FB-6WAY is a robust, professional-grade 6-way blade fuse box engineered for reliable circuit protection in 12V, 24V, and 32V DC environments. Designed to simplify complex wiring, this block allows you to distribute power to six independent circuits from a single input source, making it an essential component for campervan conversions, marine electrical systems, and off-grid solar setups.

RELIABILITY: Built with flame-retardant PBT materials and nickel-plated copper terminals to ensure high conductivity and safety in demanding conditions.

Key Features

  • ✔ LED Indicator: Red LED glows instantly when a fuse blows for rapid troubleshooting.
  • ✔ Protective Cover: Transparent PC cover with push-latch system for dust and splash protection.
  • ✔ Standard Compatibility: Accepts standard (ATO/ATC) blade fuses (fuses sold separately).
  • ✔ Simplified Mounting: Pre-moulded holes for secure surface mounting.

Technical Specs

Voltage Rating: 10V - 32V DC
Max Current (Total): 100A
Max Current (Per Circuit): 30A
Input Terminal: M5 Threaded Stud
Output Terminals: 6.3mm Spade
Dimensions: 95mm x 63mm x 36mm

Compatibility / Fitment Guide

System / Application Compatibility Notes
Automotive Cars, Trucks, Vans, RVs Ideal for auxiliary accessories.
Marine Boats, Yachts, Jet Skis Corrosion-resistant terminals.
Off-Grid Solar 12V/24V Battery Banks Protects lighting and pumps.

OEM Cross Reference

Guardian FB6LED
Simply Split FBB6L
Durite Equivalent 0-234-46 (Functionally Similar)
Daier FB-1709L

Installation Guide

  1. Disconnect the power source before installation.
  2. Securely mount the fuse block to a flat, dry surface using the four mounting holes.
  3. Connect your main positive feed to the M5 threaded input stud.
  4. Connect individual device positive wires to the 6.3mm spade terminals on each circuit.
  5. Insert the appropriate ATO/ATC fuses (not included) for each circuit's load.
  6. Replace the protective cover until it clicks into place.

Questions & Answers

Is this a genuine original part?

This is a premium Solarika aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for electrical safety and performance.

How do I know if it is compatible?

This unit is compatible with any DC system between 10V and 32V. If you are replacing an existing block, please verify that the terminal configuration (M5 stud and 6.3mm spade) matches your requirements.

Does it include the negative bus bar?

This specific model (FB-6WAY) is a positive distribution block. If your system requires a common ground/negative bus bar on the same unit, please check our other listings for the 'FB-1901' series.

Note: Fuses are not included. Please ensure you use the correct amperage fuse for your specific wire gauge and device load. Solarika.co.uk.
