TBB Power RiiOsun II 5kW 48V Hybrid Inverter Charger 100A MPPT RSII-5000-48
TBB Power RiiOsun II 5kW 48V Hybrid Inverter Charger 100A MPPT RSII-5000-48
SKU:RIIOSUN-II-48-5K
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

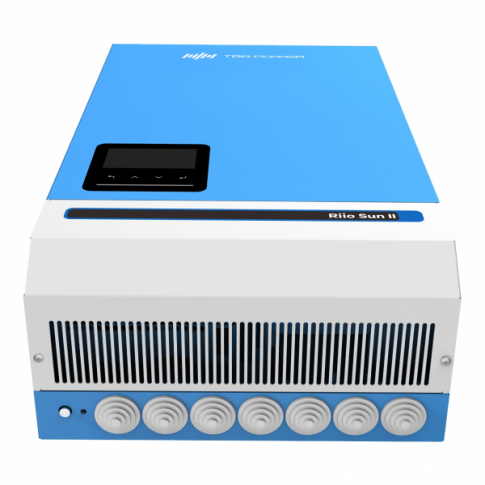

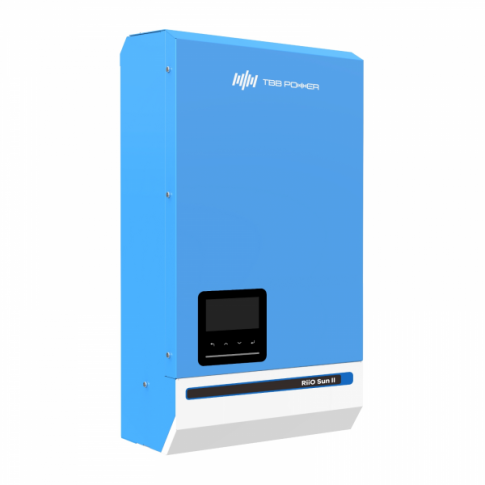

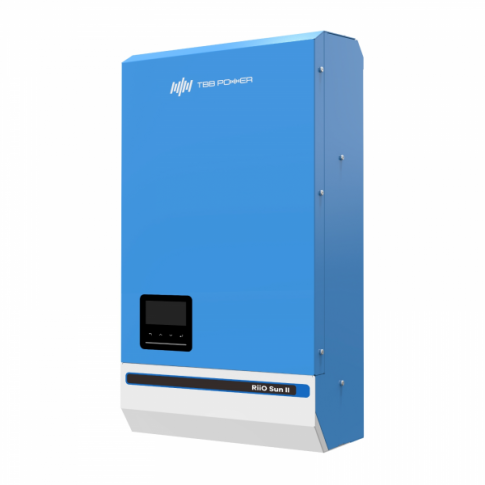

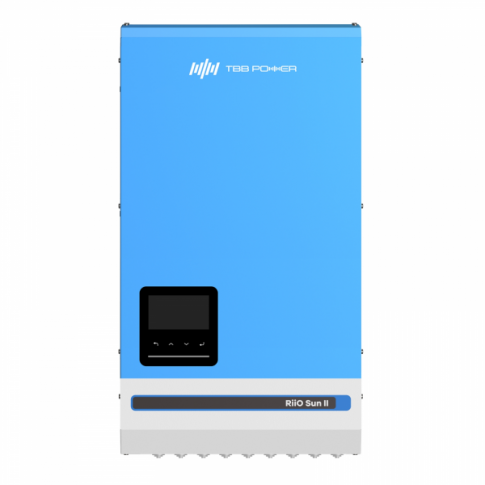

TBB Power RiiOsun II 5kW 48V Hybrid Inverter
Premium All-In-One Solar Solution | Dual MPPT | UPS Grade
The RiiOsun II (RSII-5000-48) is a state-of-the-art transformer-based hybrid inverter charger designed for high-demand off-grid, backup power, and energy storage systems (ESS). Combining a pure sine wave inverter, powerful battery charger, and advanced dual MPPT solar controllers, this unit provides a seamless power management solution for residential and commercial applications.
Key Features
- ✔ 2ms UPS-Grade Transfer Speed
- ✔ Integrated Dual MPPT Solar Controllers
- ✔ Supports Parallel & 3-Phase Systems
- ✔ High Surge Handling (up to 10kW Peak)
- ✔ Programmable Smart Port for Generator
Technical Specs
| Nominal Voltage: | 48V DC |
| Continuous Output: | 5000W / 5000VA |
| Peak Power: | 10,000W |
| Max PV Input Power: | 8800W (4.4kW x 2) |
| Max PV Voc: | 250V |
| Solar Charge Current: | 100A Total |
| Max AC Charge: | 60A (Mains) |
| Max Efficiency: | 94% (Inverter) |
Compatibility / Fitment Guide
| Battery Chemistry | System Application | Notes |
|---|---|---|
| Lithium / LiFePO4 | ESS & High Cycle Off-Grid | Compatible with BMS Communication |
| AGM / GEL | Backup & Leisure | Standard multi-stage charging |
| Lead-Carbon / OPzV | Deep Cycle Off-Grid | Customizable charge parameters |
OEM Cross Reference
| TBB Power SKU: RSII-5000-48 |
| Model Variations: RIIOSUN-II-48-5K, RIIOSUN2-5KVA-S |
| Product Class: RiiOsun II Hybrid Inverter Series |
Installation Guide
Installation should be performed by a qualified electrician or solar technician. This unit is IP21 rated and must be installed in a dry, ventilated environment. Ensure DC cables are sized correctly for 5000W continuous draw at 48V.
Questions & Answers
Is this compatible with mainstream lithium batteries?
Yes, the RiiOsun II supports CAN bus communication and is compatible with most mainstream 48V lithium battery brands and LiFePO4 storage systems.
Can it be used for grid-tie applications?
Yes, it supports Energy Storage System (ESS) and grid-tie functionalities, including peak shaving and time-of-use management via the TBB monitoring suite.
Can this inverter work without a battery connected?
It is optional to work without a battery in specific single-use applications where a stable AC bypass is present and PV energy is used as a supplement.
Note: Technical data provided by 4drive.co.uk is for reference. Please verify your system design requirements before purchasing.
