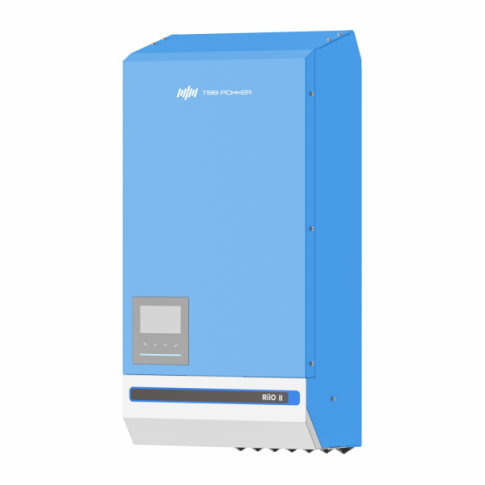

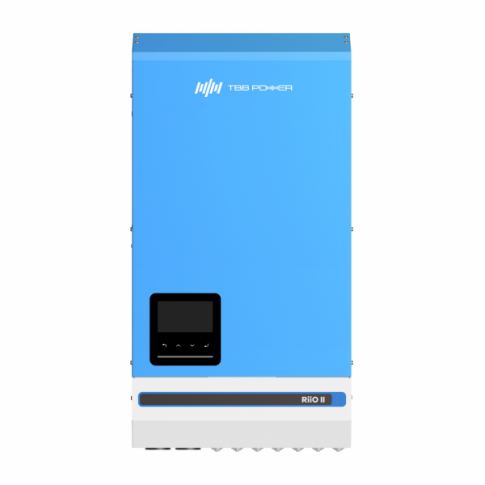

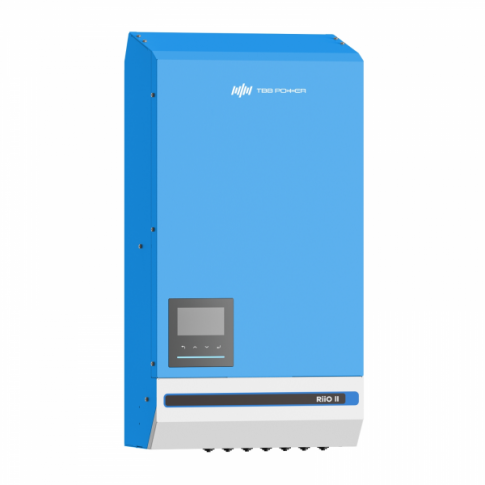

TBB RIIO-II-48-5K INVERTER CHARGER

48V 5000W Pure Sine Wave | Professional Power Solution

The RIIO-II-48-5K by TBB Power is a high-performance, transformer-based inverter charger designed for mission-critical applications. By combining a 5000W pure sine wave inverter, a powerful 60A battery charger, and an ultra-fast automatic transfer switch, it provides seamless backup and off-grid power. Its robust low-frequency design allows it to handle heavy inductive loads like air conditioners and pumps with ease, while the UPS-grade 4ms transfer time ensures your sensitive electronics never lose power during a grid failure.

RELIABILITY: Built with a heavy-duty transformer to meet or exceed OEM specifications for high-surge performance and long-term durability.

Key Features

  • ✔ Transformer-Based: Superior surge capacity for motor starts.
  • ✔ UPS-Class Transfer: Ultra-fast <4ms switching time.
  • ✔ Parallel Ready: Supports up to 9 units for 45kVA capacity.
  • ✔ Smart Port: Programmable for generator start or load management.
  • ✔ Lithium Compatible: CAN/RS485 BMS communication built-in.

Technical Specs

Nominal Battery Voltage 48V DC
Continuous Power Output 5000W / 5000VA
Peak Power (Surge) 10,000W
Max AC Charge Current 60A
AC Transfer Current 50A
Peak Efficiency 94%
Output Waveform Pure Sine Wave
Dimensions (mm) 570 x 310 x 154
Weight Approx. 27kg

Battery Compatibility Guide

Battery Type Mainstream Brands Notes
Lithium (LiFePO4) Pylontech, Dyness, WECO, Shoto, BSLBATT Supports CAN-bus BMS communication for automated charging.
Lead-Acid / AGM / GEL Universal 48V Banks Fully programmable charging profiles via LCD or App.

OEM Cross Reference

Manufacturer TBB Power
Series Name RiiO II Inverter Charger
SKU / Part Number RIIO-II-48-5K

Installation Guide

The RIIO-II unit is designed for wall-mount installation. Ensure proper ventilation with at least 20cm clearance on all sides. Use 50mm² DC cables for 48V battery connection to minimize voltage drop. For Lithium systems, connect the RJ45 communication cable to the ComSync In port. Professional installation by a qualified electrician is heavily recommended.

Questions & Answers

Is this unit compatible with Pylontech batteries?

Yes, the RIIO-II-48-5K is fully compatible with Pylontech US2000, US3000, and US5000 series via the built-in CAN communication port for seamless BMS integration.

Can I use this without a battery?

While this model can pass through AC power, it is primarily designed to work with a 48V battery bank to provide full inverter functionality and backup protection.

Can multiple units be used for 3-phase power?

Yes, up to 9 units can be connected in parallel or configured for three-phase operation (up to 45kVA) using the ComSync ports and appropriate parallel kits.

Note: Please verify your system voltage (48V) and power requirements before purchasing. Standard at Solarika.co.uk.
