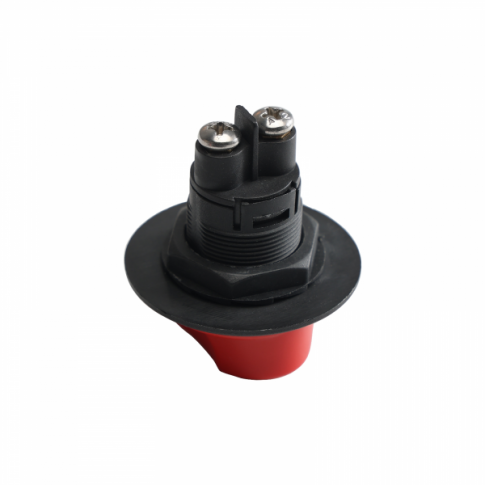

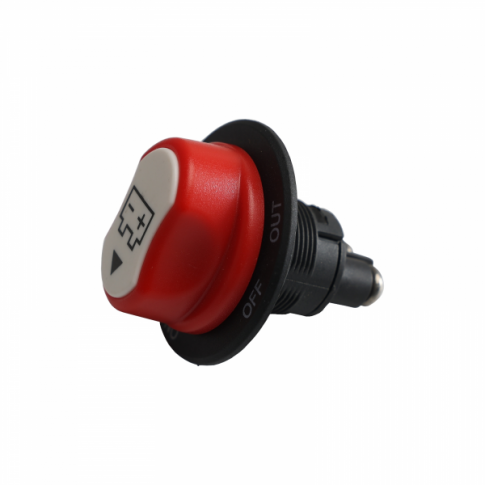

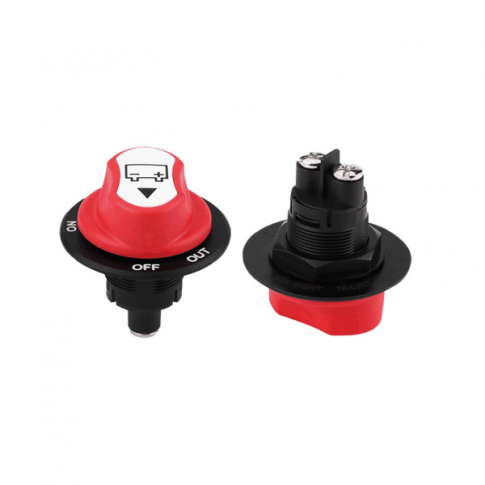

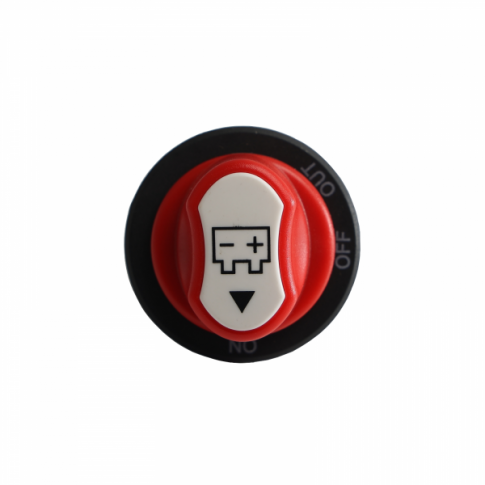

50A 12V/24V/48V panel mount battery isolator switch with M4 terminals
50A 12V/24V/48V panel mount battery isolator switch with M4 terminals
SKU:BS-50
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Solarika BS-50 Battery Switch
Premium 50A DC Battery Disconnect Isolator
The Solarika BS-50 is a compact, high-performance battery isolator switch designed for off-grid solar installations, marine vessels, and recreational vehicles. Rated for 50A continuous current, this switch provides a secure and reliable method to disconnect your battery bank from the rest of the electrical system during maintenance or storage, preventing parasitic drain and ensuring safety.
Key Features

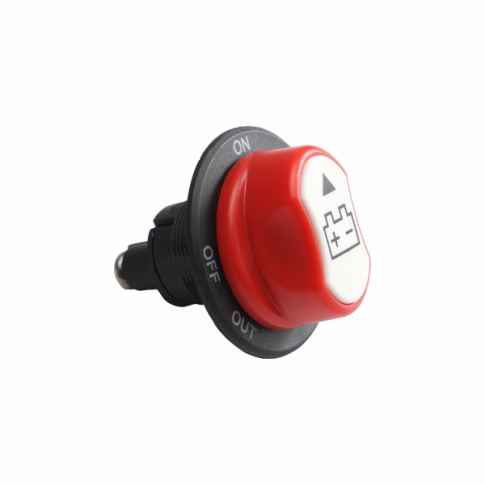

- ✔ 3-Position Operation: ON, OFF, and OUT (removable).
- ✔ Multi-Voltage Use: Compatible with 12V, 24V, and 48V systems.
- ✔ Anti-Drain Security: Removable key prevents unauthorized reconnection.
- ✔ Compact Design: Ideal for panel mounting in tight spaces.
Technical Specs
| Model (SKU) | BS-50 |
| Rated Current | 50A Continuous |
| Intermittent Rating | 75A |
| Working Voltage | 12V / 24V / 48V DC |
| Terminal Size | 2 x M4 Screw Terminals |

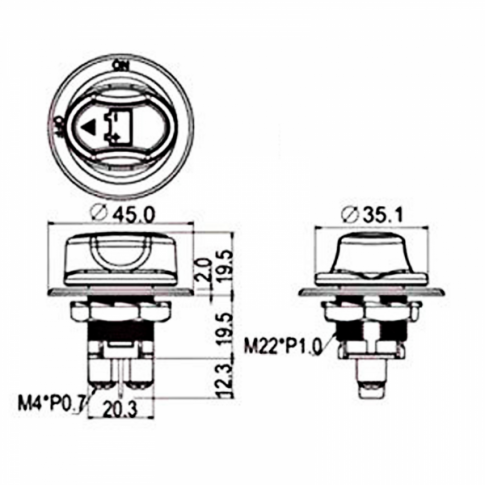

| Dimensions | 45 x 51.3 x 20.3 mm |
Compatibility / Application Guide
| System Type | Application | Notes |
|---|---|---|
| Off-Grid Solar | Panel to Controller / Battery Disconnect | Suitable for small-scale 12V/24V arrays |
| Camper / RV | Main Battery Kill Switch | Isolates house batteries during storage |
| Marine | Bilge Pump / Lighting Circuit Isolation | Not for use as an engine cranking switch |
OEM Cross Reference
| Photonic Universe | BS-50 |
| Generic Reference | 50A Mini Battery Switch |
Installation Guide
Mount the BS-50 switch on a flat surface or panel using the integrated mounting holes. Connect the positive (+) battery lead to one terminal and the load side to the other. Ensure all connections are tightened to appropriate torque settings. Always disconnect power before beginning installation.
Questions & Answers
Is this switch suitable for engine starting?
No. This switch is rated for 50A continuous current. Engine starting (cranking) typically requires 200A-500A+. This switch is designed for auxiliary circuits, solar controllers, and lighting systems.
How do I know if it is compatible?
Check that your continuous load does not exceed 50A and that your system voltage is 48V DC or lower. This fits standard off-grid battery configurations from 12V up to 48V.
What does the "OUT" position do?
In the "OUT" position, the knob/key can be fully removed. This acts as a security feature to prevent anyone from accidentally turning the power back on while you are away or working on the system.
Note: Please verify your total system amperage against the 50A rating before installation. For high-draw inverters, please see our higher-rated isolator models on Solarika.co.uk.
