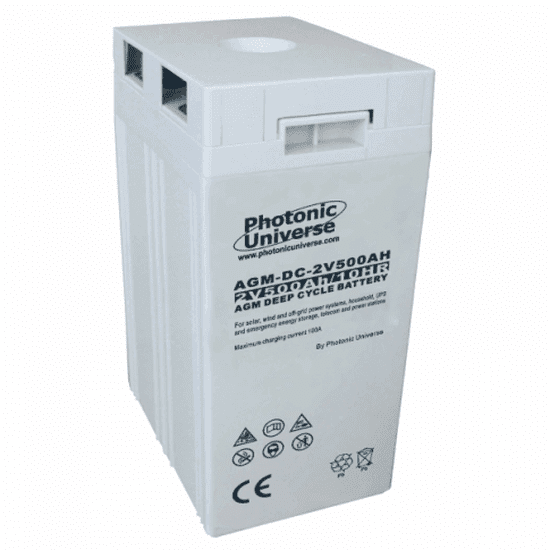

500Ah 2V deep cycle AGM battery
500Ah 2V deep cycle AGM battery
SKU:AGM500AH-2V
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
500AH 2V Deep Cycle AGM Battery
High Capacity Energy Storage | Modular 2V System | UK Renewable Energy
The Photonic Universe 500Ah 2V Deep Cycle AGM Battery (SKU: AGM500AH-2V) is designed for robust and reliable energy storage in various renewable energy systems. This individual 2V battery offers a substantial 500Ah nominal capacity, making it an ideal component for building bespoke, high-capacity battery banks.
Its modular 2V design allows users to create custom 12V, 24V, or 48V battery systems by connecting multiple units in series, providing flexibility for diverse off-grid, hybrid, and backup power applications across the UK.
SYSTEM FLEXIBILITY: Build custom 12V, 24V, or 48V battery banks with multiple 2V units.
Key Features
| ▶ Maintenance-Free — No need for liquid top-ups, reducing upkeep. |
| ▶ Extremely Safe — Non-spillable and completely sealed design with protected terminals. |
| ▶ Long Service Life — Enhanced durability compared to standard wet-cell batteries due to less degradation. |
| ▶ Low Self-Discharge Rate — Retains charge longer, minimising sulfation. |
| ▶ Highly Resilient — Good resistance to shock and vibration for diverse installations. |
| ▶ Better Recovery from Deep Discharge — Withstands deep discharges more effectively than flooded batteries. |
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Voltage | 2V |
| Nominal Capacity (10h rate) | 500Ah |
| Nominal Capacity (20h rate) | 508Ah |
| Maximum Charging Current | 100A |
| Cycle Lifetime (30% D.O.D.) | 1200 cycles |
| Pressure Control | Safety valve installed |
| Terminal Type | M10 bolts |
| Operating Temperature | -10°C to +40°C |
| Dimensions (L x W x H) | 242 x 174 x 365 mm |
| Weight | 27 kg |
Battery Compatibility & System Notes
This 2V deep cycle AGM battery is designed to be a foundational component for custom energy storage solutions. By connecting multiple 2V units in series, you can achieve higher system voltages such as 12V (6 batteries), 24V (12 batteries), or 48V (24 batteries). This modularity allows for precise tailoring of your battery bank to match the requirements of your inverter and charge controller.
For optimal performance and longevity, it is crucial to use a compatible charge controller that supports AGM battery charging profiles and the chosen system voltage. Ensure all batteries within a single bank are of the same type, age, and capacity to maintain balance and efficiency.
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Solar Systems | Provides reliable energy storage for remote homes, cabins, and other standalone power setups. |
| Grid-Tied with Battery Backup | Offers emergency power during mains outages, ensuring continuity for essential loads. |
| Telecommunications | Ideal for backup power in critical communication infrastructure and remote stations. |
| UPS Systems | Suitable for Uninterruptible Power Supply (UPS) applications, protecting sensitive electronic equipment. |
Built-In Protection Functions
The Photonic Universe 500Ah 2V Deep Cycle AGM Battery incorporates essential safety features for reliable operation. It is a completely sealed, non-spillable unit, making it safe for various installation environments. A built-in safety valve is installed to regulate internal pressure, preventing excessive gas build-up and enhancing overall battery safety and lifespan. The robust construction also provides good resistance to shock and vibration.
Common Questions
What is a 2V deep cycle AGM battery used for?
These batteries are primarily used as building blocks for larger, higher-voltage battery banks (e.g., 12V, 24V, 48V) in off-grid solar, backup power, and other deep cycle applications where long-lasting, reliable energy storage is required.
How do I connect multiple 2V batteries?
To achieve higher voltages, these 2V batteries are connected in series. For example, six 2V batteries connected in series will create a 12V battery bank. Always ensure proper wiring, fusing, and consult a qualified installer.
What kind of charger/controller do I need?
You will need a charge controller compatible with AGM batteries and the total voltage of your assembled battery bank (e.g., a 12V, 24V, or 48V charge controller). Ensure the charge controller's maximum current rating is suitable for your solar array or charging source.
Can this battery be used in any orientation?
AGM batteries are sealed and non-spillable, allowing for greater flexibility in mounting positions compared to flooded batteries. However, for optimal performance and longevity, it is generally recommended to install them upright or on their side, avoiding inverted positions.
Installation Notes
- Consult a qualified electrician or solar installer for safe and correct installation.
- Ensure adequate ventilation around the battery bank to prevent heat build-up.
- Use appropriate gauge cabling and fusing for all connections to prevent overheating and short circuits.
- Connect batteries in series to achieve the desired system voltage (e.g., 6 units for 12V, 12 units for 24V).
- Ensure all batteries in a bank are of the same type, age, and capacity for balanced charging and discharging.
Before You Buy
- Verify your system's total voltage requirements (e.g., 12V, 24V, 48V) to determine the number of 2V batteries needed.
- Confirm the physical dimensions and weight of the battery to ensure it fits your intended installation space.
- Check compatibility with your existing or planned charge controller and inverter.
- Consider your daily energy consumption and desired autonomy to calculate the required total Ah capacity.
- Plan for future expansion if your energy needs are likely to increase.
Always verify product specifications and compatibility with your system requirements before purchase. This product is covered by a 1-year warranty. Consult a qualified professional for installation guidance.
