TBB Power 48V 210Ah 10.08kWh LiFePO4 Battery Pack
TBB Power 48V 210Ah 10.08kWh LiFePO4 Battery Pack
SKU:PS10
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

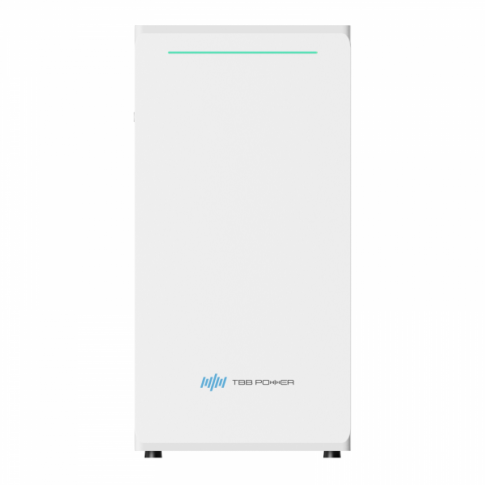

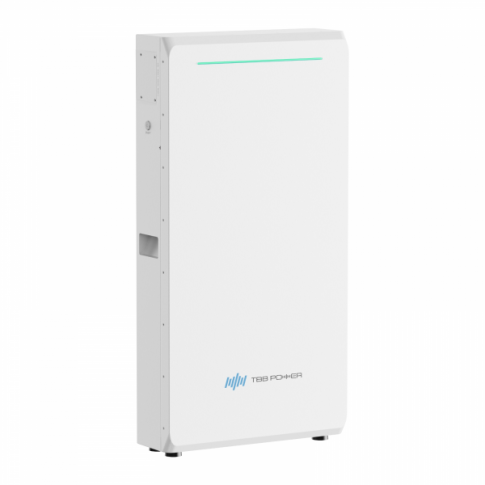

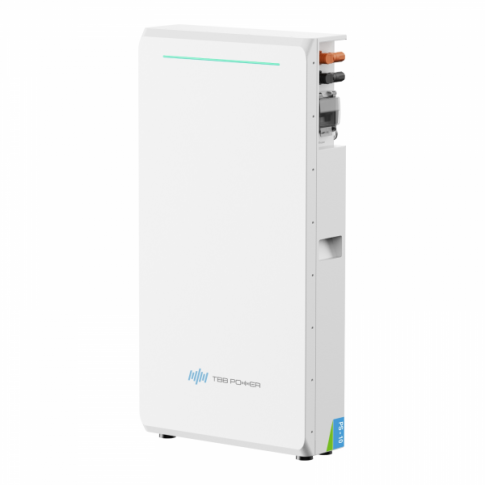

48V 210Ah 10.08kWh IP65 TBB Power Lithium Battery Pack
Robust LiFePO4 Chemistry ย |ย Floor or Wall Mounted ย |ย Integrated BMS
The TBB Power 48V 210Ah 10.08kWh Lithium Battery Pack is a high-performance LiFePO4 (Lithium Iron Phosphate) energy storage solution designed for a wide range of solar and off-grid applications. With a substantial 10.08kWh capacity and a nominal 48V output, this battery is engineered for reliability and longevity in demanding environments. Its robust IP65 rating ensures protection against dust and water jets, making it suitable for both indoor and sheltered outdoor installations.
Featuring an advanced integrated Battery Management System (BMS), this TBB Power battery optimises performance, monitors cell health, and provides critical protection functions. It supports flexible installation as either a floor-standing unit or a wall-mounted system, offering versatility for residential, commercial, and industrial energy storage needs.
SOLARIKA SKU: PS10 โ This TBB Power battery is a reliable choice for UK solar energy systems.
Key Features
| โถย High Capacity 10.08kWh โ Provides substantial energy storage for extended backup or self-consumption. |
| โถย Long Cycle Life โ Offers over 6000 cycles at 80% Depth of Discharge, ensuring long-term reliability. |
| โถย Integrated BMS โ Manages cell balancing, over-charge, over-discharge, over-current, and temperature protection. |
| โถย IP65 Rated Enclosure โ Dust-tight and protected against water jets, suitable for various installation environments. |
| โถย Flexible Mounting โ Designed for both floor-standing and wall-mounted installations, optimising space. |
| โถย Parallel Scalability โ Connect up to 16 units in parallel to expand total energy storage capacity. |
| โถย Wide Inverter Compatibility โ Communicates with leading hybrid and off-grid inverters via CAN/RS485. |
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Voltage | 48V |
| Nominal Capacity | 210Ah |
| Energy Capacity | 10.08kWh |
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | >6000 cycles @ 80% DoD |
| Ingress Protection (IP) Rating | IP65 |
| Communication Ports | CAN / RS485 |
| Operating Temperature (Discharge) | -20ยฐC to +55ยฐC |
| Operating Temperature (Charge) | 0ยฐC to +55ยฐC |
| Dimensions (H x W x D) | 968 x 484 x 195 mm |
| Weight | 94.0 kg |
| Certifications | CE, UN38.3 |
Battery Compatibility & System Notes
This TBB Power LiFePO4 battery, also known as the PS10 or Power Stack 10, is designed for seamless integration into various solar energy systems. Its 48V nominal voltage makes it compatible with a wide range of hybrid and off-grid inverters.
| Feature | Guidance |
|---|---|
| Inverter Compatibility | Compatible with most leading 48V hybrid and off-grid inverters that support LiFePO4 batteries and CAN/RS485 communication, including brands like Victron Energy, Deye, Growatt, and SMA. |
| Parallel Connection | Up to 16 units can be connected in parallel to increase total storage capacity, offering modular design flexibility. |
| Battery Management System (BMS) | Integrated BMS ensures safe operation, cell balancing, and optimises battery lifespan. |
Typical Applications
| Application | Description |
|---|---|
| Residential Solar Storage | Store excess solar energy for use during peak times or at night, reducing reliance on grid power. |
| Off-Grid Systems | Provide reliable power for remote homes, cabins, or facilities without grid access. |
| Commercial Backup Power | Ensure continuous operation for critical loads during power outages in small businesses. |
| Energy Self-Consumption Optimisation | Maximise the use of self-generated solar power, reducing electricity bills and carbon footprint. |
Built-In Protection Functions
The integrated Battery Management System (BMS) provides comprehensive protection for safe and reliable operation. This includes safeguards against over-charging ย โขย over-discharging ย โขย over-current ย โขย short circuits ย โขย high temperature ย โขย low temperature. The BMS also performs cell balancing to ensure optimal battery health and longevity.
Common Questions
What type of inverter is compatible with this battery?
This TBB Power battery is compatible with most 48V hybrid and off-grid inverters that support LiFePO4 battery chemistry and communicate via CAN or RS485 protocols. Always verify your inverter's specifications for full compatibility.
Can I expand the capacity of my battery system?
Yes, this battery pack supports parallel connection of up to 16 units, allowing you to scale your energy storage capacity as needed for larger systems.
Is this battery suitable for outdoor installation?
With an IP65 rating, the battery is protected against dust ingress and low-pressure water jets. This makes it suitable for sheltered outdoor installations where it will not be exposed to direct heavy rain or prolonged submersion.
What are the mounting options?
The battery is designed for flexible installation and can be either floor-mounted or wall-mounted, depending on your available space and system requirements.
Installation Notes
- Installation should only be carried out by a qualified and certified electrician or solar installer, adhering to all relevant UK electrical standards.
- Ensure adequate ventilation around the battery pack to maintain optimal operating temperatures and prevent heat build-up.
- Follow all local electrical codes, building regulations, and safety guidelines during installation.
- Refer to the manufacturer's official installation manual for detailed instructions, wiring diagrams, and specific safety precautions.
- Verify correct polarity and securely fasten all electrical connections to prevent arcing, short circuits, or damage to the system.
- For residential installations, ensure compliance with PAS 63100:2024 for battery energy storage systems.
Before You Buy
- Inverter Compatibility: Confirm your existing or planned 48V inverter supports LiFePO4 batteries and CAN/RS485 communication protocols for seamless integration.
- System Voltage: Ensure your entire solar or off-grid system is designed for 48V operation to match this battery.
- Space & Mounting: Measure your available installation space and confirm suitability for either floor or wall mounting, considering the battery's dimensions (968 x 484 x 195 mm) and weight (94.0 kg).
- Capacity Requirements: Calculate your daily energy consumption to ensure the 10.08kWh capacity is sufficient for your needs, or plan for parallel expansion if greater storage is required.
- Professional Consultation: We recommend consulting with a certified solar professional to design and install your energy storage system correctly and safely.
All specifications are based on verified manufacturer data. Always confirm compatibility with your specific system components before purchase. Product details are subject to change by the manufacturer.
