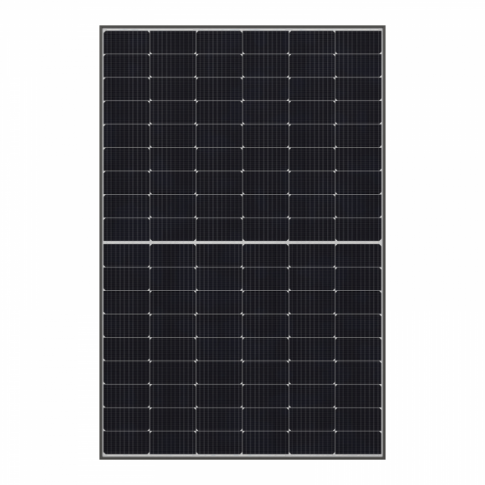

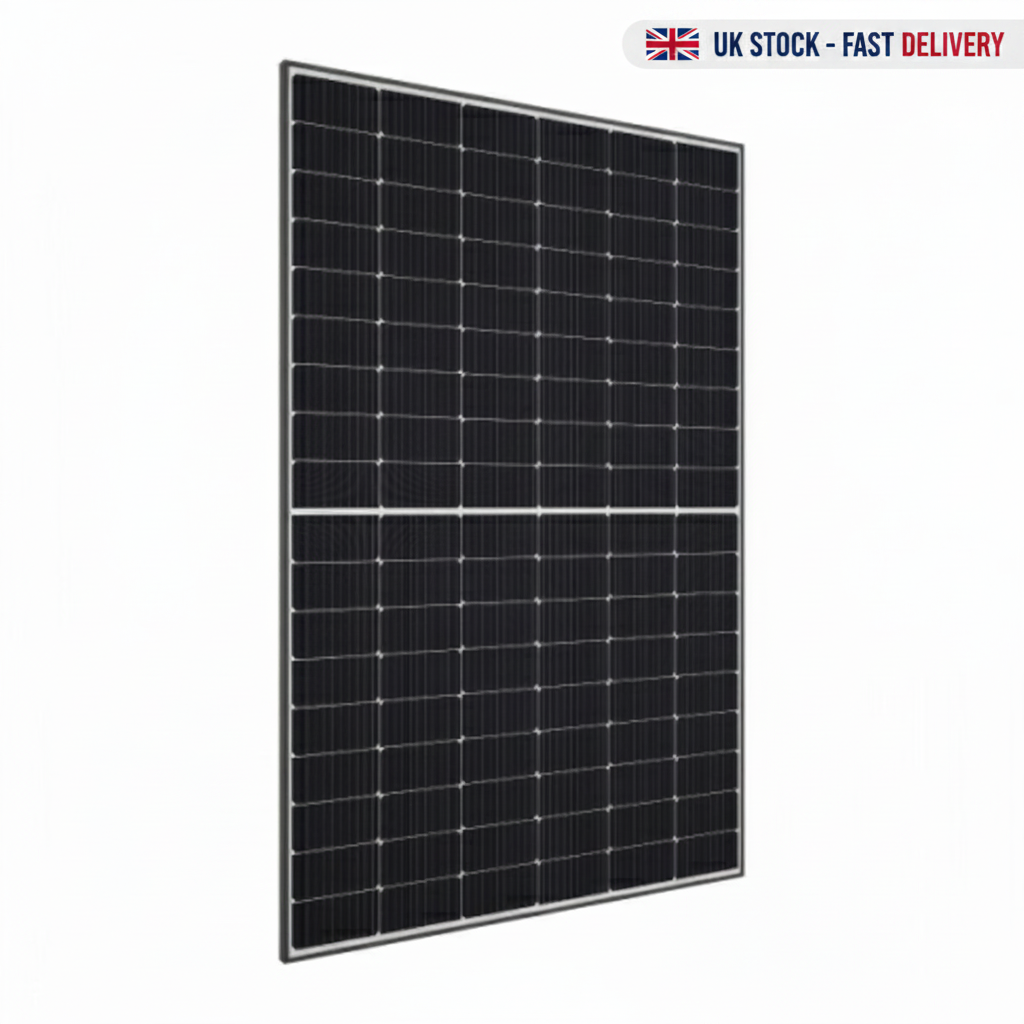

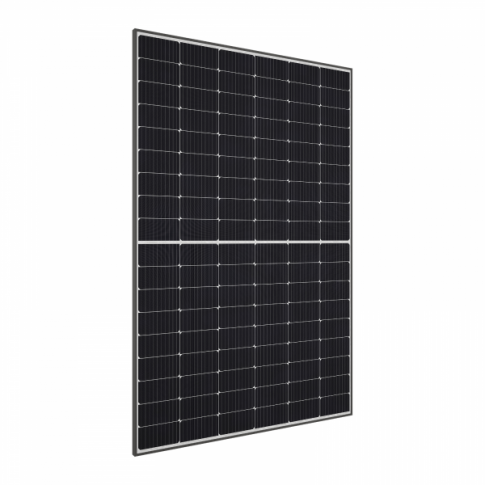

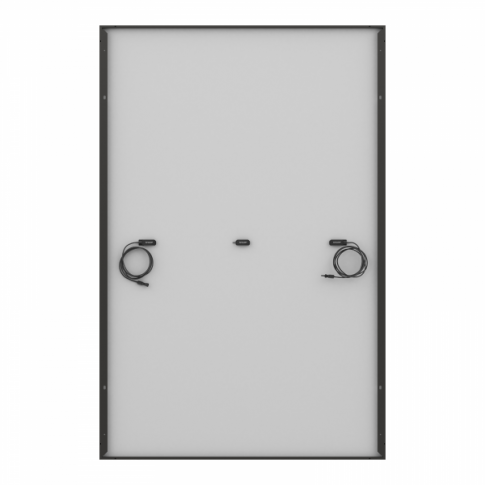

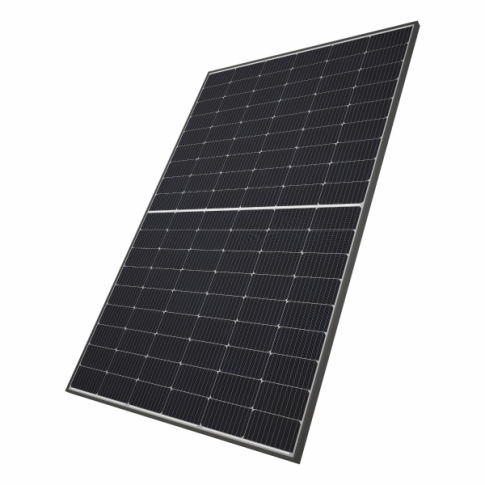

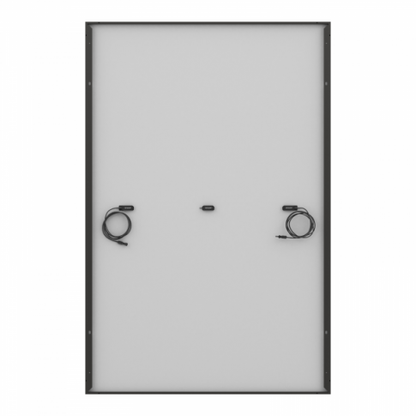

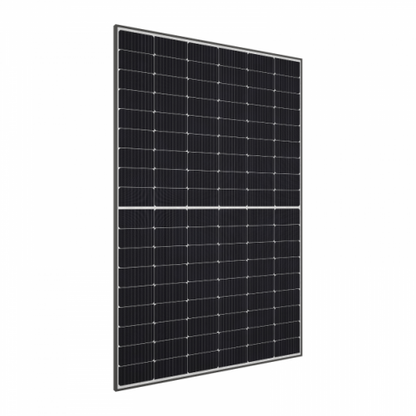

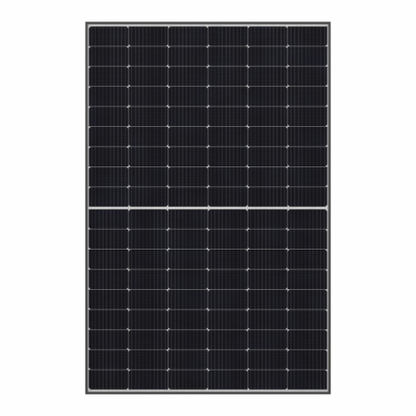

410W Sharp NU-JC410B Black Frame Monocrystalline Solar panel with high-efficiency PERC cells
410W Sharp NU-JC410B Black Frame Monocrystalline Solar panel with high-efficiency PERC cells
SKU:SRP-410B
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Sharp NU-JC410B 410W Black Frame Monocrystalline Solar Panel
High-Efficiency PERC Cells | MCS Certified | UK Ready
The Sharp NU-JC410B is a high-performance 410W monocrystalline solar panel, engineered by Sharp, a global leader in solar technology. This panel features advanced PERC (Passivated Emitter Rear Cell) technology and a 108 half-cut cell design, optimising energy yield and performance, especially in shaded conditions.
Designed with a sleek black frame, the NU-JC410B offers an aesthetic solution for residential, commercial, and off-grid solar installations across the UK. Its robust construction ensures durability and reliability, backed by MCS certification for peace of mind.
UK COMPLIANCE: This Sharp NU-JC410B solar panel is MCS certified, making it suitable for eligible installations within the United Kingdom.
Key Features
| ▶ 410W Peak Power — Delivers high energy output for efficient solar generation. |
| ▶ High-Efficiency PERC Cells — Maximises power conversion from a compact module size. |
| ▶ 108 Half-Cut Cell Design — Reduces internal losses and improves performance under partial shading. |
| ▶ Sleek Black Frame — Provides an attractive aesthetic for various installation environments. |
| ▶ MCS Certified — Meets UK standards for quality, safety, and performance. |
| ▶ Robust & Durable — Tested for high snow (5400 Pa) and wind (2400 Pa) loads, with IP68 junction box. |
| ▶ MC4 Connectors — Ensures simple and secure plug-and-play connections. |
Technical Specifications (STC)
| Parameter | Value |
|---|---|
| Peak Power (Pmax) | 410W |
| Module Efficiency | 21.0% |
| Maximum Power Voltage (Vmp) | 31.3V |
| Maximum Power Current (Imp) | 13.1A |
| Open Circuit Voltage (Voc) | 37.79V |
| Short Circuit Current (Isc) | 13.81A |
| Maximum System Voltage | 1000V DC |
| Power Tolerance | 0/+5% |
| Dimensions (L x W x D) | 1722 x 1134 x 30 mm |
| Weight | 20.7 kg |
| Connector Type | Stäubli MC4 |
| Cable Length | 2 x 1250 mm |
Typical Applications
| Application | Description |
|---|---|
| Residential Rooftop PV | Ideal for home solar systems, offering high efficiency and a discreet black frame aesthetic. |
| Small-Scale Commercial | Suitable for small business premises and industrial rooftops requiring reliable power generation. |
| Off-Grid Systems | Powers remote cabins, caravans, motorhomes, and boats where mains electricity is unavailable. |
Built-In Protection Functions
The Sharp NU-JC410B is built for long-term reliability, featuring robust protection against environmental factors. This includes proven resistance to Potential Induced Degradation (PID), salt mist, ammonia, sand, and dust. The panel's junction box is IP68 rated for complete waterproofing, and the module is tested to withstand heavy snow loads of up to 5400 Pa and wind loads of 2400 Pa. An integrated over-current protection of 25A further safeguards the system.
Common Questions
What are the benefits of PERC and half-cut cell technology?
PERC (Passivated Emitter Rear Cell) technology enhances light capture and electron flow, boosting overall efficiency. The half-cut cell design reduces internal resistance and improves performance in shaded conditions, meaning more power generation even when parts of the panel are shaded.
Is this solar panel suitable for UK installations?
Yes, the Sharp NU-JC410B is MCS certified, which is a key requirement for many solar installations in the UK, particularly for those seeking government incentives or grid connection.
What type of inverter is compatible with this panel?
This 410W panel is compatible with most modern string inverters and micro-inverters that can handle its electrical characteristics (Vmp 31.3V, Imp 13.1A, Voc 37.79V). For off-grid systems, a compatible MPPT solar charge controller is required.
Installation Notes
- Installation of solar panels should always be carried out by an MCS-certified professional or a qualified electrical contractor to ensure safety and compliance with local regulations.
- The panel uses standard MC4 connectors for easy integration into existing or new solar PV systems.
- Ensure your chosen mounting system is compatible with the panel's dimensions and 30mm frame thickness.
- Proper grounding of the solar array is essential and must adhere to BS 7671 (IET Wiring Regulations) or relevant local electrical codes.
Before You Buy
- Verify the electrical specifications of this panel against your existing or planned inverter and charge controller to ensure full compatibility.
- Consider the physical dimensions (1722 x 1134 x 30 mm) and weight (20.7 kg) for transport, handling, and roof loading capacity.
- Consult with a qualified solar installer to assess your specific energy needs and system design requirements.
- For UK installations, confirm that your installer is MCS certified to ensure eligibility for any potential grants or incentives.
Please verify all specifications and compatibility requirements with your installer before purchasing. Product specifications are subject to change by the manufacturer.
