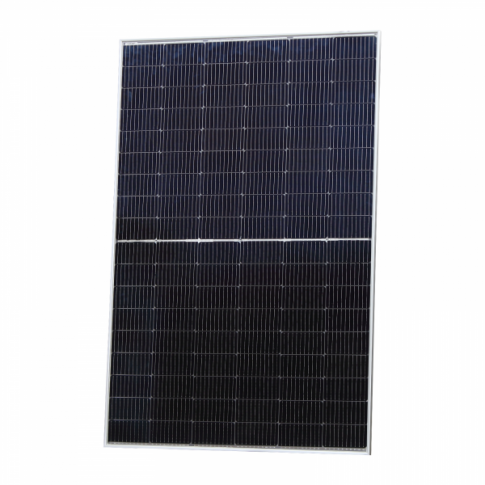

400W bi-facial monocrystalline solar panel with 60cm cable
400W bi-facial monocrystalline solar panel with 60cm cable
SKU:SWB-400M
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
SWB-400M 400W Bifacial Solar Panel
Ultra-High Efficiency Bifacial Monocrystalline Technology

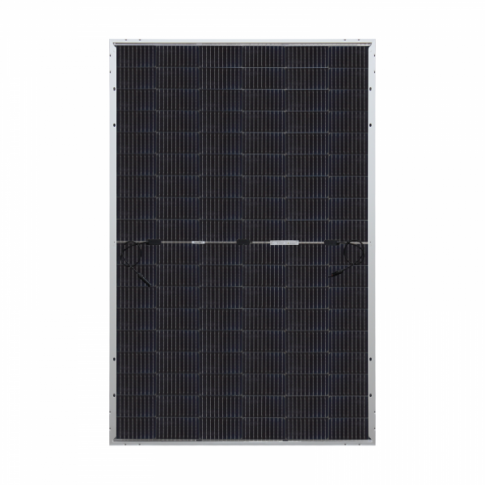

The Solarika SWB-400M is a high-performance 400W bifacial monocrystalline solar panel engineered for maximum energy harvest. Unlike traditional monofacial panels, the SWB-400M utilizes advanced dual-sided solar cells to capture sunlight on both the front and rear surfaces, harnessing reflected light from the ground to increase energy output by up to 20%.
Key Features
- ✔ Bifacial Gain: Up to 20% extra yield from rear-side light
- ✔ All-Weather Design: IP68 rated junction box
- ✔ Pre-Wired: 60cm cable with MC4 connectors
- ✔ Space Efficient: High power density for limited roof space
Technical Specs
| Peak Power (Pmax) | 400W |
| Max Power Voltage (Vmp) | 30.98V |
| Max Power Current (Imp) | 12.91A |
| Open Circuit Voltage (Voc) | 37.10V |
| Short Circuit Current (Isc) | 13.80A |

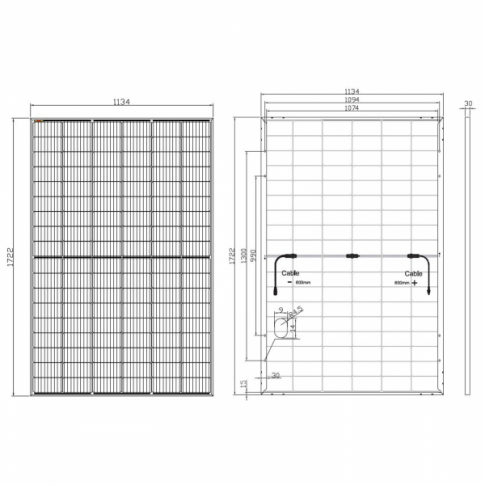

| Dimensions | 1722 x 1134 x 30 mm |
| Weight | 21.0 kg |
Compatibility & Fitment Guide
| Application | Requirement | Notes |
|---|---|---|
| 12V Battery Charging | MPPT Controller (30A+) | Ideal for motorhomes/caravans |
| 24V Battery Charging | MPPT Controller (20A+) | Efficient off-grid storage |
| Mounting Systems | Standard 30mm Profile | Compatible with Z-brackets & rails |
OEM Cross Reference
| Manufacturer | Part Number / Reference |
| Photonic Universe | SWB-400M |
| Industry Equivalent | 400W Bifacial Mono 108-Cell |
Installation Guide
The SWB-400M is designed for plug-and-play integration via its pre-installed 60cm solar cables and MC4 connectors. For bifacial gain, it is recommended to mount the panel at least 0.5m above a light-coloured or reflective surface (such as white gravel or light roofing). Always use a high-quality MPPT charge controller to manage the high current output of this panel.
Questions & Answers
Is this a genuine Solarika part?
Yes, this is a premium Solarika branded panel manufactured to the specific technical standards of the SWB-400M design for long-term off-grid performance.
How do I know if it is compatible with my controller?
Check the "Max Power Current" (12.91A). Ensure your MPPT charge controller is rated for at least 30A for a 12V system or 20A for a 24V system to handle the full output.
What is the benefit of bifacial technology on a flat roof?
Even with limited ground clearance, bifacial panels capture diffuse light and reflections, typically resulting in a 5-10% increase in yield compared to standard panels on flat surfaces.
Note: Solarika.co.uk recommends verifying your mounting area dimensions and charge controller capacity before purchase.
