4000W 12V pure sine wave power inverter 230V AC output (UK sockets), with remote on/off switch
4000W 12V pure sine wave power inverter 230V AC output (UK sockets), with remote on/off switch
SKU:IPC-4000
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
4000W 12V Pure Sine Wave Power Inverter
230V AC Output | UK Sockets | Remote On/Off Switch
The Photonic Universe 4000W 12V Pure Sine Wave Power Inverter (SKU: IPC-4000) is a robust off-grid solution designed to convert 12V DC battery power into stable 230V AC mains electricity. This inverter is ideal for powering a wide range of domestic appliances and sensitive electronics in locations without access to the national grid, such as motorhomes, caravans, boats, or remote cabins.
With a continuous power output of 4000W and a surge capacity of 8000W, this unit can handle demanding loads and appliances with high startup requirements. Its pure sine wave output ensures compatibility and efficient operation for virtually all AC devices, mirroring the quality of standard utility power.
KEY ADVANTAGE: Pure sine wave output is essential for sensitive electronics and appliances with electric motors, providing clean, stable power.
Key Features
| ▶ 4000W Continuous Power — Reliably runs multiple appliances simultaneously. |
| ▶ 8000W Peak Surge Capacity — Handles high startup currents for motors and compressors. |
| ▶ Pure Sine Wave Output — Provides clean, stable power identical to mains electricity, safe for all electronics. |
| ▶ Integrated UK Sockets — Direct compatibility with standard British plugs. |

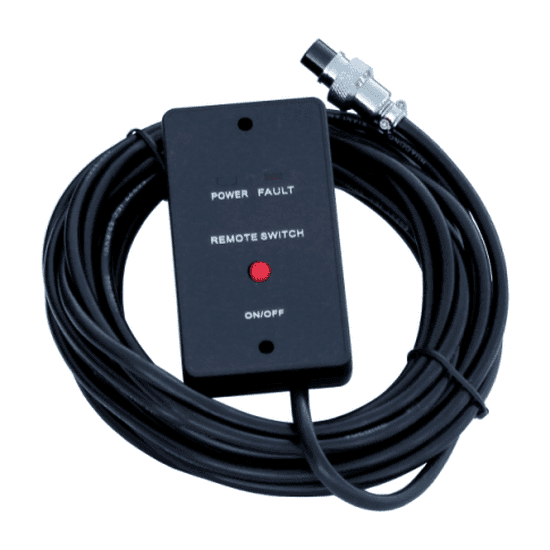

| ▶ Remote On/Off Switch (5m Cable) — Convenient control and monitoring from a distance. |
| ▶ 2.1A USB Charging Port — Fast charging for mobile phones and other USB-compatible devices. |
| ▶ Comprehensive Protection Features — Safeguards the inverter and connected appliances. |
Technical Specifications
| Parameter | Value |
|---|---|
| Continuous Power: | 4000W |
| Surge Power (Peak): | 8000W |
| Input Voltage: | 12V DC (10-15.5V) |
| Output Voltage: | 220-240V AC |
| Output Frequency: | 50-60 Hz |
| Output Waveform: | Pure Sine Wave |
| Total Harmonic Distortion (THD): | < 3% |
| Peak Efficiency: | 87% |
| USB Output: | 2.1A |
| Low Battery Alarm: | 11.5V ± 0.5V DC |
| Low Battery Shutdown: | 10.5V ± 0.5V DC |
| High Voltage Shutdown: | 15.5V ± 0.5V DC |
| Dimensions (L x W x H): | 54 x 23 x 11 cm |
| Weight: | 9 kg |
Operating & Power Guidance
This 4000W pure sine wave inverter is designed to power a wide array of 230V AC appliances from a 12V battery bank. The high continuous power rating makes it suitable for many common household and professional tools. Always check the power consumption of your appliances before connecting them to ensure they do not exceed the inverter's continuous or surge power limits.
| Appliance Type | Typical Suitability (4000W) |
|---|---|
| Small Electronics (Laptops, Phones, Tablets) | Excellent (via AC or USB) |
| Lighting (LED, CFL) | Excellent |
| Kitchen Appliances (Microwaves, Kettles, Toasters) | Generally suitable (check individual wattage) |
| Power Tools (Drills, Saws, Grinders) | Suitable for many models (consider surge power) |
| Refrigeration (Fridges, Freezers) | Suitable (pure sine wave is ideal for motors) |
Typical Applications
| Application | Description |
|---|---|
| Motorhomes & Caravans | Powering domestic appliances on the go, enhancing comfort during travel. |
| Boats & Marine Vessels | Providing reliable AC power for electronics, galley appliances, and tools at sea. |
| Off-Grid Homes & Cabins | Enabling full household functionality in remote locations independent of grid power. |
| Backup Power Systems | Essential for maintaining power during outages, keeping critical appliances running. |
| Mobile Workstations & Field Operations | Powering laptops, tools, and lighting for professional use in remote areas. |
Built-In Protection Functions
The Photonic Universe 4000W inverter incorporates multiple safety features to ensure reliable and safe operation for both the unit and your connected devices. These include: Over-discharge protection • Overload protection • Overheating protection • Short-circuit protection • Low battery alarm • Low battery shutdown • High voltage shutdown.
Common Questions
What is a pure sine wave inverter?
A pure sine wave inverter produces an AC waveform that is almost identical to the electricity supplied by utility companies. This makes it suitable for all types of AC loads, especially sensitive electronics, medical equipment, and appliances with motors, which can be damaged by modified sine wave inverters.
How do I connect this inverter to my 12V system?
Connect the inverter directly to your 12V battery or battery bank using appropriately sized cables. Ensure correct polarity (positive to positive, negative to negative). If you have a solar charge controller, connect the inverter to the battery in parallel, not to the controller's load terminals, as the inverter's power draw may exceed the controller's capacity.
What is the remote on/off switch for?
The remote on/off switch allows you to power the inverter on or off from a convenient location, especially useful if the inverter is installed in a hard-to-reach area. The included 5-metre cable provides flexibility for installation and monitoring.
Can I use an adapter for more sockets?
Yes, a multi-socket adapter can be used, provided that the total continuous power consumption of all connected appliances does not exceed the inverter's 4000W continuous power rating.
Installation Notes
- Ensure the inverter is installed in a dry, cool, and well-ventilated area, away from flammable materials.
- Use appropriate gauge cabling for DC input connections to minimise voltage drop and ensure safety.
- Always connect the inverter to the battery with correct polarity (positive to positive, negative to negative).
- Consider professional installation for complex off-grid systems to ensure optimal performance and safety.
- Do not connect the inverter's AC output to any other AC power source, such as the mains grid.
Before You Buy
- Verify the continuous and surge power requirements of all appliances you intend to power.
- Confirm your battery bank voltage is 12V DC to match this inverter.
- Assess your battery bank's capacity (Ah) to ensure it can support the inverter's power draw for your desired duration.
- Plan for adequate ventilation around the inverter to prevent overheating.
- Review the user manual for detailed safety guidelines and operational instructions.
Always verify product specifications and compatibility with your specific system requirements before purchase. This product is covered by a 1-year warranty.
