Photonic Universe 3m 16mm2 Battery Cable with 60A Fuse
Photonic Universe 3m 16mm2 Battery Cable with 60A Fuse
SKU:BCAB3160FH
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

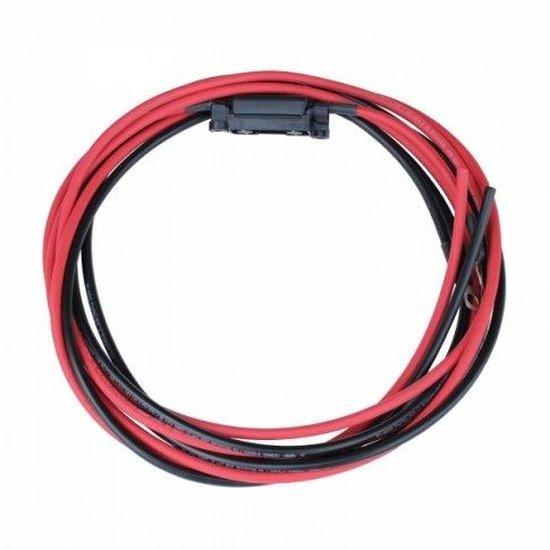

3m 16mm² Battery Cable with 60A Fuse & Ring Terminals
Pre-assembled | Red & Black | 8mm Ring Lugs
This Photonic Universe 3m 16mm² single core battery cable set provides a convenient and reliable solution for connecting batteries in various DC applications. It includes both red and black cables, pre-assembled with an inline fuse holder, a 60A midi fuse, and 8mm ring terminals, making it ready for immediate use.
Designed for versatility, these cables are commonly used in solar charging kits to link a solar charge controller to a battery bank. They are also suitable for general wiring in vehicles, boats, and other off-grid or automotive electrical systems where robust and fused DC connections are required.
IMPORTANT NOTE: Always verify cable sizing and fuse rating for your specific application's current draw and voltage.
Key Features
| ▶ Pre-assembled Convenience — Ready to connect with fuse holder and terminals. |
| ▶ High Current Capacity — 16mm² cable suitable for currents up to 60A. |
| ▶ Integrated 60A Midi Fuse — Provides essential overcurrent protection. |
| ▶ Durable Copper Cable — Ensures minimal power loss and reliable conductivity. |
| ▶ 8mm Ring Terminals — For secure and easy connection to battery posts or busbars. |
| ▶ Clear Polarity — Red and black cables for straightforward positive and negative identification. |
Technical Specifications
| Parameter | Value |
|---|---|
| Cable Length | 3 metres |
| Cable Cross-Section | 16mm² |
| Max Current Rating | Up to 60A |
| Fuse Type | Midi Fuse |
| Fuse Rating | 60A |
| Terminal Type | Ring Terminals |
| Terminal Size | 8mm |
| Cable Colour | Red & Black |
| Vendor | Photonic Universe |
| SKU | BCAB3160FH |
Typical Applications
| Application | Description |
|---|---|
| Solar Charging Systems | Connecting solar charge controllers to battery banks. |
| Vehicle & Automotive | Auxiliary power connections, battery links, or general DC wiring in cars, vans, and motorhomes. |
| Marine & Boat Wiring | Robust DC power distribution for marine electrical systems. |
| Off-Grid Power Systems | General battery connections for small to medium off-grid setups. |
| DIY Electrical Projects | Any project requiring a reliable, pre-fused, and high-current DC cable. |
Built-In Protection Functions
The integrated 60A midi fuse provides critical protection for your electrical system. This fuse is designed to safeguard against: Overcurrent Protection • Automatically breaks the circuit if the current exceeds 60A, preventing damage to the cable and connected equipment. Short Circuit Protection • Offers a rapid response to short circuits, helping to minimise fire risk and component failure.
Common Questions
What is the maximum current this cable can safely handle?
This 16mm² cable, with its included 60A fuse, is rated for applications drawing up to 60 Amperes. It is crucial not to exceed this rating to ensure safety and prevent overheating.
What are the 8mm ring terminals used for?
The 8mm ring terminals are designed for secure connection to M8 studs, which are commonly found on battery posts, busbars, and some charge controllers or inverters.
Can I use a different fuse rating with this cable?
While the fuse holder is compatible with midi fuses, the cable's cross-section is specified for up to 60A. Using a fuse with a higher rating than 60A could compromise safety by not protecting the cable adequately in an overcurrent situation. Always match the fuse to the lowest rated component in the circuit.
Is this cable suitable for outdoor installations?
The cable is durable, but for prolonged outdoor exposure or harsh environments, additional protection such as conduit or UV-resistant sleeving is recommended to extend its lifespan and maintain performance.
Installation Notes
- Ensure correct polarity: connect the red cable to positive (+) and the black cable to negative (-).
- Tighten all connections securely to prevent resistance and potential overheating.
- Route cables carefully, avoiding sharp edges, moving parts, or areas of high heat.
- Always disconnect power before making or breaking electrical connections.
- If unsure about installation, consult a qualified electrician or solar installer.
Before You Buy
- Confirm the required cable length for your specific application.
- Verify that your system's maximum continuous current draw does not exceed 60A.
- Check that your battery terminals or connection points are compatible with 8mm ring terminals.
- Ensure the 60A fuse rating is appropriate for the protection of your entire circuit.
- Consider the environment where the cable will be installed for any additional protection needs.
Please verify all specifications and compatibility requirements for your specific installation before purchase. Solarika recommends professional installation for all electrical components.
