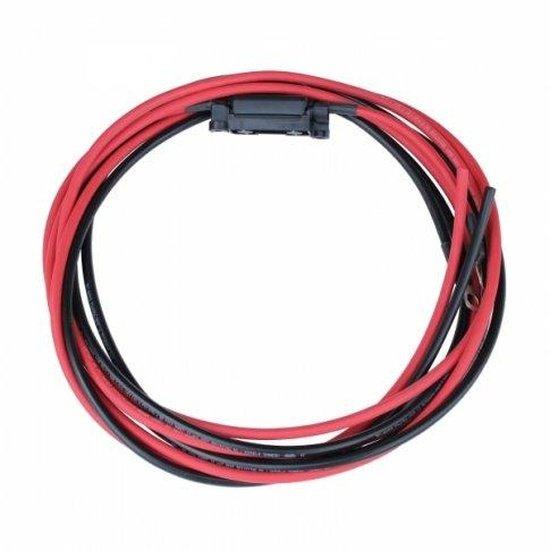

3m 10mm2 single core red and black extension cable with a fuse holder, 40A fuse and ring terminals (8mm)
3m 10mm2 single core red and black extension cable with a fuse holder, 40A fuse and ring terminals (8mm)
SKU:BCAB3100FH
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
3m 10mm² Battery Cable Kit
Red & Black Pair | 40A MIDI Fuse | 8mm Ring Terminals
The Photonic Universe 3m 10mm² Battery Cable Kit (SKU: BCAB3100FH) provides a reliable and pre-assembled solution for connecting batteries in solar charging systems, vehicles, boats, and various general DC applications. This kit includes a pair of 3-metre single-core cables, one red and one black, designed for straightforward and secure power connections.
Each cable comes pre-fitted with a fuse holder, a 40A MIDI fuse, and 8mm ring terminals, ensuring quick installation and essential overcurrent protection. The robust 10mm² cross-section is engineered to handle currents up to 40A, minimising power loss and ensuring efficient energy transfer in your DC setup.
ESSENTIAL FOR DC SYSTEMS: Pre-assembled for reliable and safe battery connections.
Key Features
| ▶ Pre-Assembled Convenience — Ready for immediate connection to batteries and charge controllers. |
| ▶ Robust 10mm² Cable — Designed for currents up to 40A with minimal power loss. |
| ▶ Integrated 40A MIDI Fuse — Provides crucial overcurrent protection for your system. |
| ▶ Durable 8mm Ring Terminals — Ensures secure and stable connections to battery posts. |
| ▶ Versatile Application — Ideal for solar, automotive, marine, and off-grid DC setups. |
| ▶ Red & Black Colour Coding — Simplifies polarity identification for safe installation. |
Technical Specifications
| Parameter | Value |
|---|---|
| Cable Length | 3 metres (each) |
| Cable Cross-Section | 10mm² |
| Cable Colour | Red & Black |
| Fuse Type | MIDI Fuse |
| Fuse Rating | 40A |
| Terminal Type | Ring Terminals |
| Terminal Hole Diameter | 8mm |
| Manufacturer | Photonic Universe |
| SKU | BCAB3100FH |
System Integration & Power Guidance
This Photonic Universe battery cable kit is designed for straightforward integration into various DC power systems. Its pre-fitted components simplify installation, making it suitable for both new setups and upgrades.
| Aspect | Guidance |
|---|---|
| Max Current Rating | Rated for continuous currents up to 40 Amps, protected by the included MIDI fuse. |
| Voltage Compatibility | Suitable for common 12V, 24V, and 48V DC battery systems. |
| Application Suitability | Ideal for connections between charge controllers and batteries, or general DC power distribution. |
Typical Applications
| Application | Description |
|---|---|
| Solar Charging Systems | Connecting solar charge controllers to 12V, 24V, or 48V battery banks. |
| Automotive & Marine | Supplying power to auxiliary equipment in cars, vans, motorhomes, and boats. |
| Off-Grid Power Systems | Essential wiring for small off-grid cabins, sheds, or backup power setups. |
| General DC Wiring | Various low-voltage DC applications requiring robust and protected power delivery. |
Built-In Protection Functions
The integrated 40A MIDI fuse provides essential overcurrent protection, safeguarding your battery and connected equipment from potential damage due to excessive current draw or short circuits. • The 10mm² cable cross-section is specifically rated to handle continuous currents up to 40A, ensuring safe and efficient power transfer without overheating. • The robust construction of the cables and terminals contributes to overall system reliability and safety.
Common Questions
What is the primary use of this cable kit?
This kit is designed for connecting solar charge controllers to batteries, or for general DC power applications in vehicles, boats, and off-grid systems requiring a 40A rated connection.
Why is a fuse included?
The 40A MIDI fuse protects your battery and connected devices from overcurrents and short circuits, which is crucial for safety and preventing damage in DC electrical systems.
Can I use this cable for higher currents than 40A?
No, the 10mm² cable and 40A fuse are rated for a maximum continuous current of 40A. Exceeding this can lead to overheating, fuse blowing, and potential damage to your equipment or the cable itself.
Are the cables supplied as a pair?
Yes, this kit includes one red and one black 3-metre cable, both pre-fitted with a fuse holder, 40A MIDI fuse, and 8mm ring terminals for positive and negative connections.
Installation Notes
- Ensure correct polarity (red for positive, black for negative) when connecting to avoid damage.
- Verify all connections are tight and secure to prevent arcing, overheating, and power loss.
- Mount the fuse holder in an accessible location for easy inspection and replacement of the fuse.
- Route cables carefully to avoid sharp edges, excessive bending, heat sources, and areas of potential abrasion or damage.
Before You Buy
- Confirm the 40A fuse rating is appropriate for your specific application and connected devices.
- Check that the 8mm ring terminals are compatible with your battery posts or other connection points.
- Measure the required cable length to ensure 3 metres is sufficient for your intended setup.
- Consult a qualified electrician or solar professional if you are unsure about any aspect of system design or installation.
Always verify product specifications and compatibility with your existing system components before purchase. Professional installation is recommended for electrical systems.
