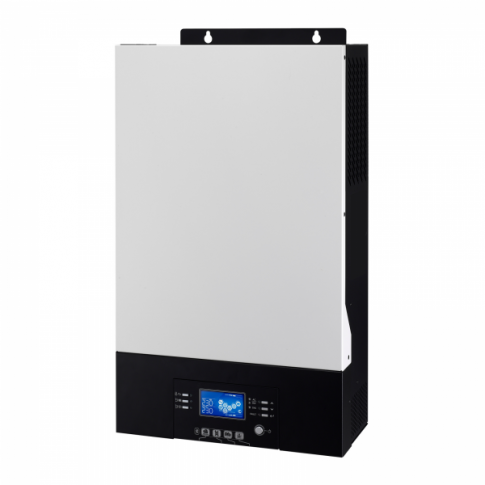

ADVANCED PERFORMANCE: Equipped with a powerful 60A MPPT solar charge controller and a pure sine wave output to ensure clean, stable power delivery for all household and commercial appliances.

Key Features

• ✔ 0ms Transfer Time: Instant switching for critical electronics.
• ✔ Pure Sine Wave: Clean output for sensitive loads.
• ✔ Built-in 60A MPPT: High-efficiency solar charging.
• ✔ Parallel Ready: Can be scaled up for larger power requirements.
• ✔ Multi-Function: Combined Inverter, Solar, and AC Charger.

Technical Specs

Rated Power	3000W / 3000VA
Nominal DC Voltage	24V
Surge Power	6000VA
Max Solar Input	1500W
Max Solar Voltage (VOC)	145V DC
MPPT Range	30 - 115V DC
Transfer Time	0ms (Zero)
Weight	13 kg

Application Type	Recommended Configuration	Notes

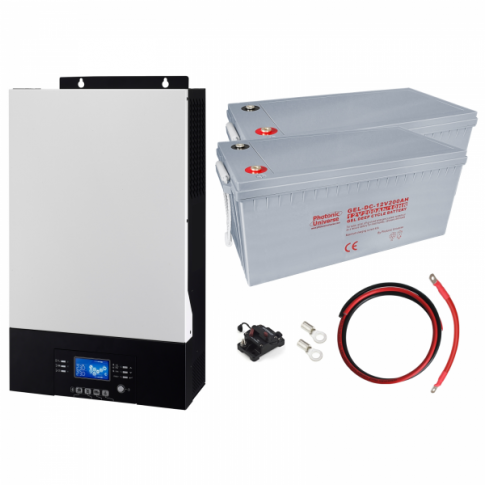

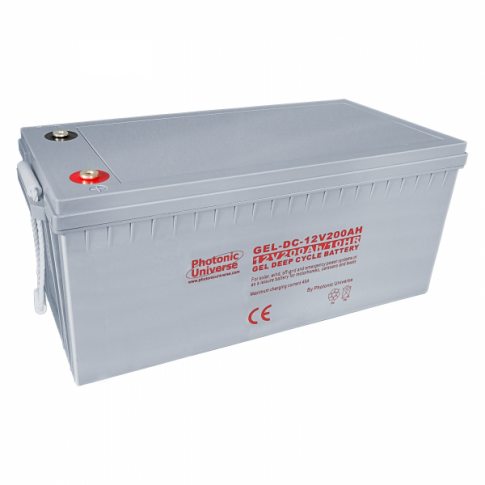

Battery System	24V DC Banks	Supports AGM, Gel, and Lead-Acid.
Solar Array	Up to 1500W PV	Ensure VOC is below 145V.
Critical Backup	IT / Medical / Labs	Ideal for items requiring 0ms transfer.

Installation requires a 24V battery bank. The unit must be installed in a well-ventilated area. Safety Note: This is an off-grid inverter system. External AC sources (Grid or Generator) must be connected strictly to the AC Input terminals and must remain isolated from the AC Output to prevent internal damage.

Is this a genuine original part?

This is a premium quality Photonic Universe series hybrid inverter, supplied by Solarika, built to exact OEM specifications for the ZT-series hardware.

How do I know if it is compatible?

Check your existing unit for the SKU "UPS-ZT3K-24". This unit is designed for 24V battery systems. If you are replacing a standard inverter, ensure your battery bank is 24V (typically 2x 12V batteries in series).

Can I run my computer server on this without it crashing during a power cut?

Yes. Because this unit uses Zero-Transfer technology (0ms delay), the power flow is truly uninterrupted. Standard inverters have a 10-20ms lag which can cause some servers to reboot, but the ZT-series prevents this entirely.
