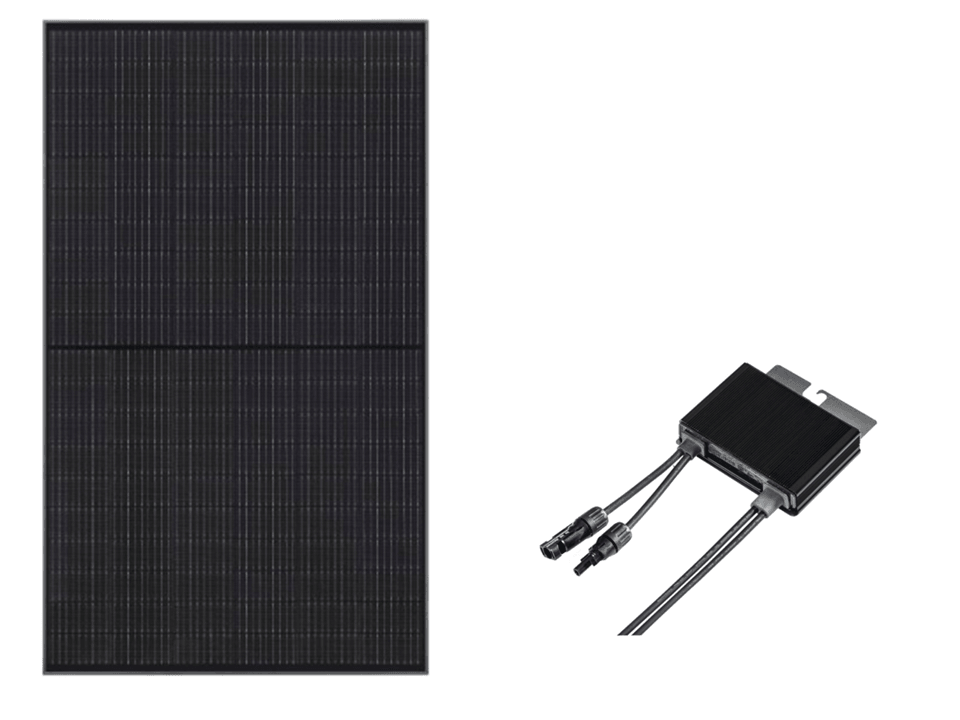

4pcs x 370W SolarEdge Smart Module All Black Mono Solar Panel with S440 optimiser

370W SolarEdge Smart Module All Black Mono Solar Panel with S440 optimiser
#1: SE-SPV370-R60-6M - Monocrystalline

#4 SPV370-R60DBMG-6M4C50

 Solar Edge 370 Data Sheet

 Solar Edge 370 Inst. Manual

 Solar Edge 370 Opt. Warranty

 Solar Edge 370 Pnl Warranty

 Solar Edge 370 MCS Certificate

*Collections are not permitted due to health & safety regulations

A smart, all-black monocrystalline PERC panel. The integrated optimisers make for a quicker installation than either frame mounted or rail mounted versions, saving time on the roof, and cost as well. With built-in optimisers, you save time on mapping the optimisers as well. What's more, you don't need to worry about matching an optimiser to a panel any more!

SolarEdge's integrated power optimisers and half-cut cell technology increase power from each module. On top of this, superior quality control is guaranteed by SolarEdge, as well as maximum protection afforded by their built-in SafeDC safety feature.

Rating: 370W
Efficiency: 20.3%
Width: 1,038mm
Height: 1,755mm

KEY FEATURES

60-cell module with pre-assembled power optimiser
Output is optimised by constantly tracking the maximum power point (MPPT) of each module individually
Module-level voltage shutdown for installer and firefighter safety
Full visibility of system performance from module to grid
Excellent mechanical loading and shock resistance performance
Elegant black design with black frame
Specifically designed to work with SolarEdge inverters
RELIABLE QUALITY

Fully automated production line and 100% EL triple inspection

Warranty:

25-Year product warranty on the module
25-Year linear power warranty on the module
25-Year product warranty on the optimiser

Length: 1,755 mm

Width: 1,038 mm
Depth: 40 mm
VMPP: 34.17 V
IMPP: 10.83 A
Isc: 11.29 A
Voc: 41.96 V
Temp. Coefficient (Mpp): -0.328 %
Clamp position on panel: Long and short side
Connector Type: MC4
Efficiency: 20.3 %
