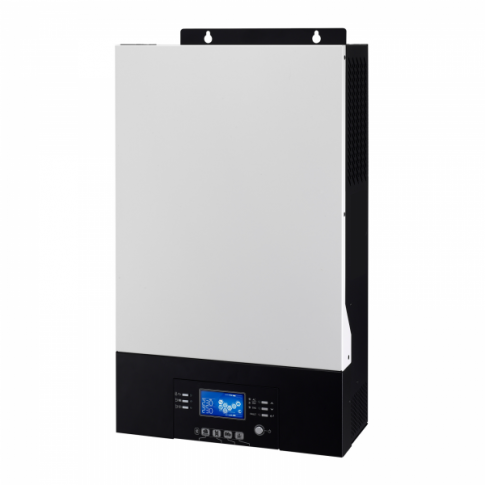

RELIABILITY: Engineered with 6 parallel-connected 5000W hybrid inverters and massive 48kWh storage to provide stable, pure sine wave AC power under any load condition.

Key Features

• ✔ 0ms Transfer Time: Instant switching for IT/Data centers
• ✔ 30kW Continuous Output: Supports massive AC loads
• ✔ 48kWh Storage: High-capacity 500Ah battery banks
• ✔ Hybrid Functionality: Integrated MPPT solar charging
• ✔ Scalable Design: Expandable up to 45kW (9 units)

Technical Specs

Total Power	30,000W / 30,000VA
Surge Power	60,000VA (Combined)
Battery Voltage	48V DC
Storage Capacity	48kWh (2x 24kWh Banks)
Output Waveform	Pure Sine Wave
Max Solar Input	24,000W (6x 4000W)
Max AC Charge	360A Combined

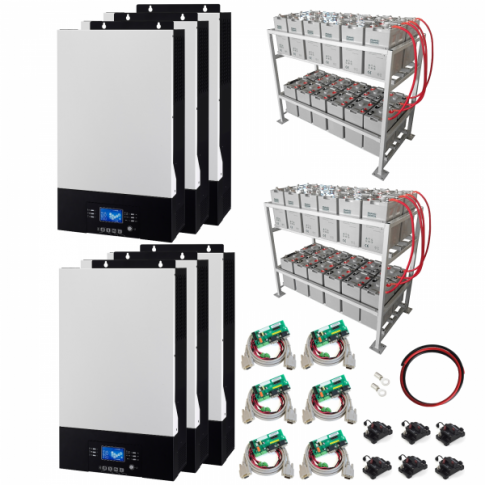

Component	Quantity	Specification
Zero-Transfer Inverter	6 Units	5000W 48V Pure Sine

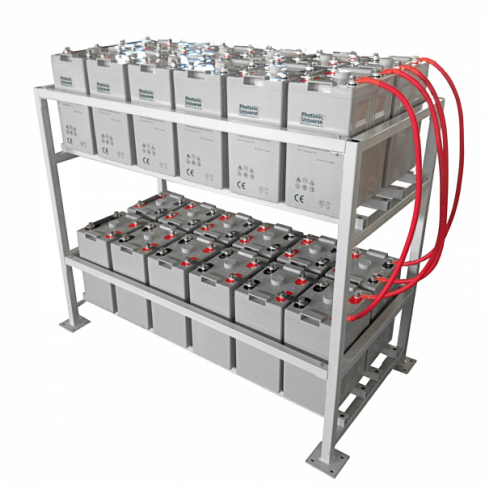

Battery Bank	2 Banks	24kWh 500Ah Deep Cycle
Parallel Connection Kit	6 Kits	Communication & Current Sharing
Protection	6 Breakers	Thermal Over-Current Protection

This is a high-power industrial system. Professional electrical installation is mandatory. The inverters utilize predictive cooling fans and are not recommended for noise-sensitive living areas. Battery banks are provided with racking and require significant floor space (approx. 1290 x 1140 x 670 mm per bank).

Is this a genuine original part?

This system is a premium professional-grade assembly using high-quality Photonic Universe components, branded and supported by Solarika to meet European performance standards.

How do I know if it is compatible?

If your application requires 48V battery storage and up to 30kW of power with 0ms transfer time, this system is a guaranteed solution. It is "battery agnostic" and can be programmed for various chemistries.

What does "Zero-Transfer" actually mean?

Standard UPS units have a 10ms-20ms gap when switching to battery, which can cause servers to reboot. This system features a 0ms transfer time, meaning the power transition is completely invisible to the connected equipment.
