RELIABILITY: Engineered with high-quality components from ST, IR, and Infineon to ensure an extended product lifespan and stable performance under full load.

Key Features

• ✔ Auto-System Voltage: 12V/24V/36V/48V DC auto detection.
• ✔ 3-Stage Charging: Intelligent Bulk, Boost/Equalize, and Float modes.
• ✔ Dual USB Ports: 5V/2.4A output for charging phones and electronics.
• ✔ LCD Display: Real-time operating data and working status visibility.
• ✔ Battery Support: Pre-programmed for Sealed, Gel, and Flooded batteries.

Technical Specs

Rated Charge Current	30A
System Voltage	12/24/36/48V DC Auto
Max. PV Input Voltage	96V
Battery Input Range	9V to 64V
Terminals	16mm² / 6AWG
Enclosure	IP30
Dimensions	181 x 100.9 x 59.8 mm
Net Weight	0.58 kg

12V System	24V System	36V System	48V System
390W	780W	1170W	1560W

1. Connect the Battery: First, connect the battery terminals to the controller. This allows the unit to auto-detect the system voltage (12/24/36/48V).
2. Connect the Load: Connect any DC loads to the load terminals (optional).
3. Connect the Solar Panel: Finally, connect the PV array to the solar terminals.
4. Note: Disconnect in reverse order (Solar first, then Battery). Always install a fuse within 150mm of the battery terminal.

Is this a genuine original part?

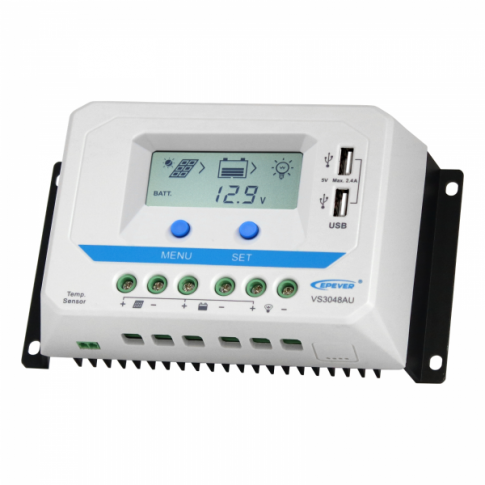

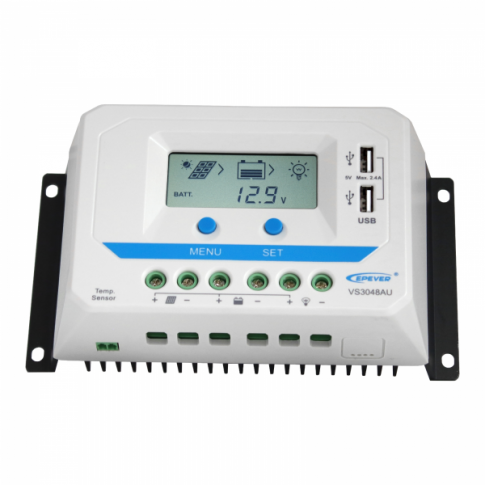

Yes, this is an authentic EPEVER ViewStar AU series controller, supplied by Solarika, ensuring high performance and safety compliance.

How do I know if it is compatible?

If your system requires a 30A charge current and operates on 12V, 24V, 36V, or 48V, this controller is compatible. Please ensure your PV open circuit voltage (Voc) does not exceed 96V.

What protections are built into this unit?

The VS3048AU includes comprehensive protection against PV reverse polarity, battery overcharge, battery over-discharge, battery reverse polarity, load overload, and load short circuiting.
