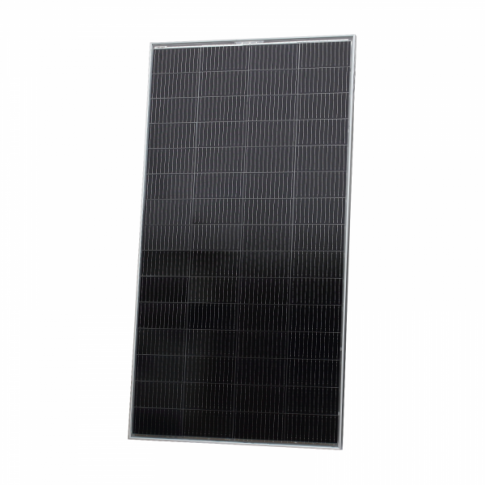

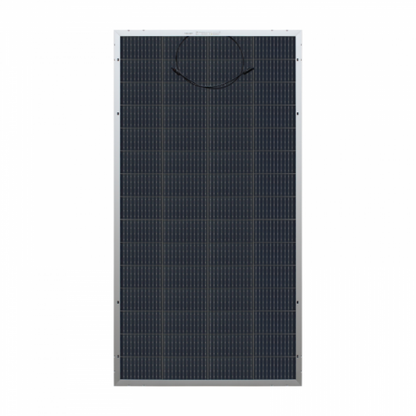

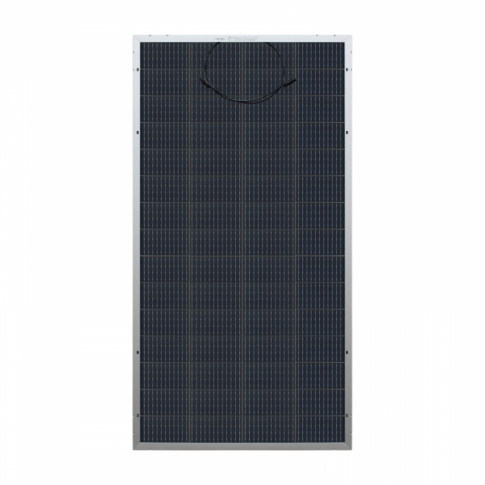

300W bi-facial monocrystalline solar panel with 60cm cable
300W bi-facial monocrystalline solar panel with 60cm cable
SKU:SWB-300M
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Solarika SWB-300M 300W Solar Panel
Premium Bi-facial Monocrystalline Technology
The Solarika SWB-300M is a high-performance 300W bi-facial monocrystalline solar panel designed for superior energy harvest. Unlike traditional panels, the SWB-300M features bi-facial technology, allowing it to capture sunlight on both the front and rear surfaces. This can increase total energy output by up to 20% by harnessing reflected light from the ground or mounting surface.
Key Features
- ✔ Bi-facial Generation: Dual-side power harvesting
- ✔ High Efficiency: 5-busbar monocrystalline cells
- ✔ Weatherproof: IP65/IP67 rated junction box
- ✔ Durable Build: Corrosion-resistant aluminum frame
Technical Specs
| Peak Power (Pmax) | 300W |
| Max Power Voltage (Vmp) | 34.53V |
| Max Power Current (Imp) | 8.69A |
| Open Circuit Voltage (Voc) | 41.83V |
| Short Circuit Current (Isc) | 9.25A |

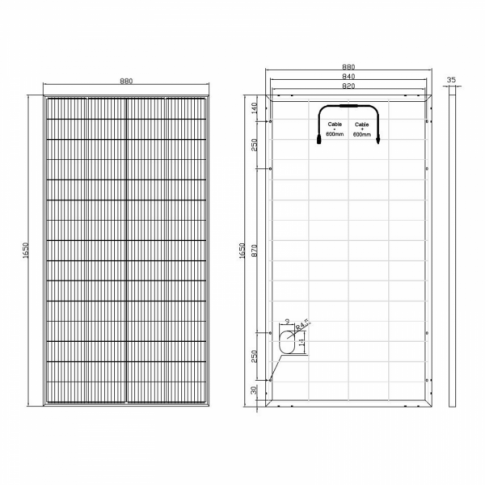

| Dimensions | 1650 x 880 x 35 mm |
| Weight | 15.5 kg |
Compatibility / Fitment Guide
| System Type | Requirement | Notes |
|---|---|---|
| 12V Battery Systems | MPPT Controller Required | High voltage requires MPPT for 12V charging. |
| 24V Battery Systems | MPPT or PWM Controller | Ideal native voltage for 24V setups. |
| Off-Grid/Marine | Standard MC4 Connections | Compatible with most standard solar hardware. |
OEM Cross Reference
| Brand Reference | Photonic Universe SWB-300M |
| Standard Part Code | SWB-300M / 300W-BF-MONO |
Installation Guide
This panel is fitted with 2 x 60cm of high-quality single core solar cable (4.0mm² cross-section) with male and female MC4 connectors. For maximum bi-facial gain, mount the panel with a minimum clearance of 100mm from the surface to allow reflected light to reach the back of the panel.
Questions & Answers
Is this a genuine original part?
This is a premium Solarika branded panel manufactured to international standards (IEC), comparable to OEM specifications found under part number SWB-300M.
How does bi-facial technology work?
Bi-facial panels have transparent backing or glass on both sides, allowing the rear cells to absorb light reflected from the ground (albedo), significantly increasing the daily Amp-hour yield compared to standard mono panels.
What size charge controller do I need?
For a single SWB-300M panel, we recommend a minimum 30A MPPT controller to handle the high voltage and optimize the 300W output for a 12V or 24V battery bank.
Note: Please verify your installation space dimensions against the 1650 x 880 mm frame size before purchasing. Visit Solarika.co.uk for technical support.
