HCM3000-48-240 Wind Controller
3000W 48V MPPT Premium Wind Power Module
The HCM3000-48-240 is a high-performance MPPT wind charge controller engineered to handle large-scale wind turbine outputs up to 3000W (3kW). Designed specifically for 48V battery banks, this buck-type controller efficiently converts high-voltage turbine input (up to 320V) into a stable charging current, ensuring maximum energy harvest even at varying wind speeds.
Key Features
- ✔ Advanced MPPT tracking for 3kW turbines
- ✔ Wide input voltage range (40V – 320V)
- ✔ Includes external dump load resistor

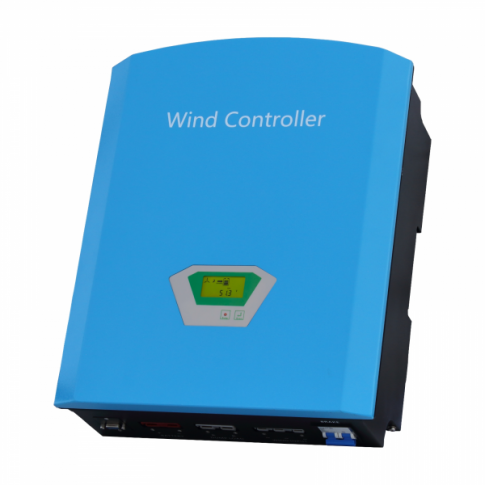

- ✔ LCD display for real-time monitoring
- ✔ Manual brake switch for maintenance
Technical Specs
| Nominal Battery Voltage: | 48V DC |
| Max Turbine Power: | 3000W (3kW) |
| Input Voltage Range: | 40V – 320V DC |
| Max Input Current: | 13A |
| Conversion Efficiency: | ≥92% |
| Static Power Loss: | <5W |
| Controller Weight: | 15.5 kg |
Compatibility / Fitment Guide
| System Type | Turbine Compatibility | Notes |
|---|---|---|
| Off-Grid Power | 3000W 120V Wind Turbines | Ideal for WTD3000-120 series |
| Energy Storage | 48V Battery Banks | Lead-Acid or LiFePO4 (check settings) |
| Industrial Wind | Up to 3kW Rated Generators | Requires external dump load (included) |
OEM Cross Reference
| Photonic Universe: | HCM3000-48-240 |
| MWM Series: | MWM-3000-48-V1.3 |
| Generic Series: | 3kW 48V Wind MPPT Buck Controller |
Installation Guide

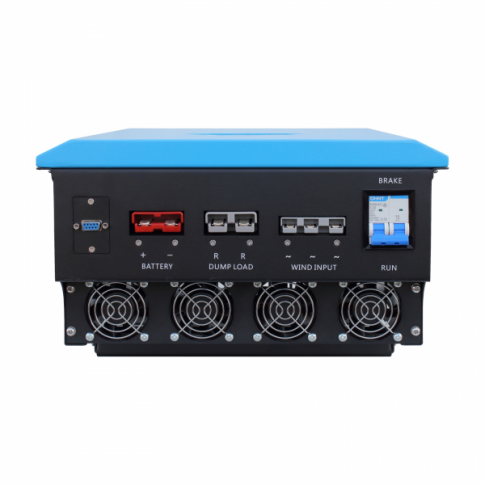

1. Connect the 48V battery bank to the controller terminals first to power up the logic board.
2. Securely wire the external dump load resistors to the "Dump Load" terminals.
3. Connect the three-phase wind turbine output to the controller via the appropriate rectifier (if required).
4. Configure the MPPT tracking curve via the RS232 port or LCD interface before high wind operation.
Questions & Answers
Is this a genuine original part?
This is a premium quality solarika Aftermarket replacement part, manufactured to meet or exceed the original HCM3000 specifications for wind power management.
How do I know if it is compatible?
This unit is specifically designed for 120V-rated 3000W wind turbines charging a 48V battery system. Check your turbine's peak voltage output; if it stays below 320V, this is the correct controller.
Does it include the dump load resistors?

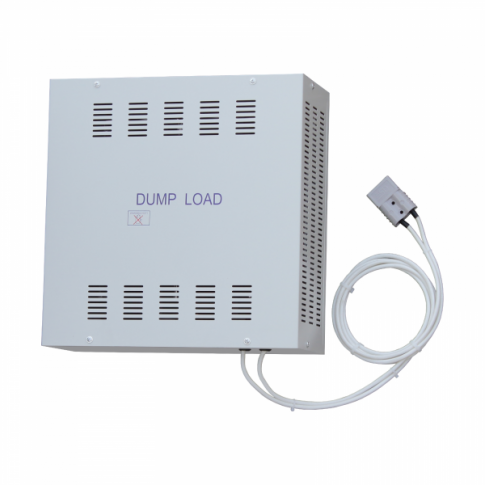

Yes, this SKU (HCM3000-48-240) includes the secondary dump load box (400 x 390 x 210 mm) as standard to ensure the turbine can be safely braked in storm conditions.
Note: Please verify your original equipment specifications against the data provided above at solarika.co.uk before purchasing.
