3000W 24V pure sine wave power inverter with On/Off remote control
3000W 24V pure sine wave power inverter with On/Off remote control
SKU:IPR-3000-24
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

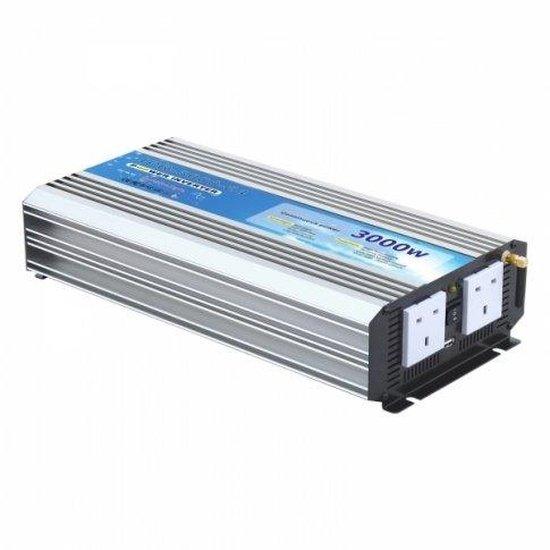

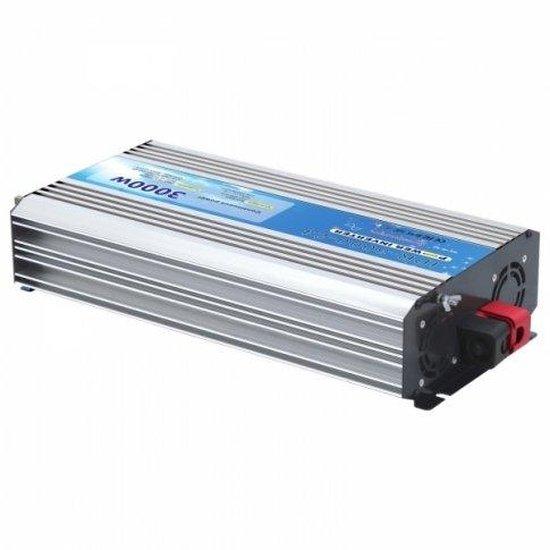

3000W 24V Pure Sine Wave Power Inverter
Model: IPR-3000-24 | Continuous 3000W | Wireless Remote Control
The Photonic Universe 3000W 24V Pure Sine Wave Power Inverter (model IPR-3000-24) converts 24V DC battery power into stable 230-240V AC mains electricity. Ideal for off-grid systems, backup power, and mobile applications, this inverter delivers a clean pure sine wave output, making it suitable for a wide range of sensitive domestic appliances and electronics. With a continuous power rating of 3000W and a surge capacity of up to 6000W, it can handle demanding loads and initial power spikes from motors or compressors.
Equipped with a convenient USB port for charging devices and a wireless On/Off remote control with approximately 50m range, this inverter offers flexibility and ease of use in various settings, from motorhomes and caravans to remote cabins and small business backup systems.
KEY ADVANTAGE: Pure sine wave output is almost identical to utility mains power, ensuring compatibility and efficient operation for sensitive electronics.
Key Features
| ▶ Pure Sine Wave Output — Ensures clean, stable power for all appliances, including sensitive electronics. |
| ▶ 3000W Continuous Power — Capable of running multiple household appliances simultaneously. |
| ▶ 6000W Peak Surge Capacity — Provides extra power for starting high-demand inductive loads. |

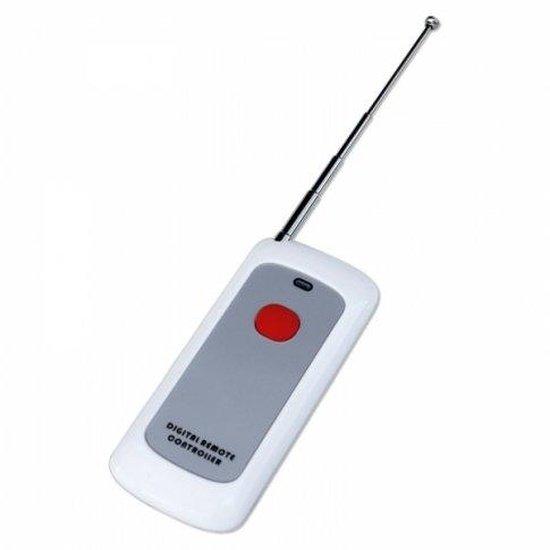

| ▶ Wireless Remote Control — Convenient On/Off operation from up to 50 metres away. |
| ▶ Integrated USB Port (2A) — Directly charge mobile phones, tablets, and other USB-powered devices. |
| ▶ Comprehensive Protection — Built-in safeguards against common electrical issues. |
| ▶ Robust 24V DC Input — Optimised for 24V battery banks, offering system stability. |
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 24V DC (20-30V) |
| Output Voltage | 230-240V AC |
| Output Frequency | 50 Hz |
| Output Waveform | Pure Sine Wave |
| Total Harmonic Distortion (THD) | < 4% |
| Continuous Power | 3000W |
| Surge Power (Peak) | 6000W |
| Peak Efficiency | 90% |
| Low Battery Alarm | 21.0V ± 1.0V DC |
| Low Battery Shutdown | 20.0V ± 1.0V DC |
| High Voltage Shutdown | 31.0V ± 1.0V DC |
| Thermal Shutdown | 60 ±5°C |
| Rated USB Output | 2A |
| Remote Control Radius | Approx. 50m |
| Dimensions (L x W x H) | 460 x 220 x 95 mm |
| Weight | 6 kg |
Operating & Power Guidance
This 3000W pure sine wave inverter is designed for direct connection to a 24V DC battery or battery bank. It converts the stored DC energy into a stable 230-240V AC output, suitable for powering most standard UK domestic appliances. The pure sine wave output ensures that even sensitive electronics, such as laptops, medical equipment, and audio systems, operate without interference or damage.
For optimal performance and system stability, it is recommended to use this inverter with a 24V battery system. Compared to 12V systems, 24V setups typically allow for thinner cabling and result in a lower current (Amps) at the inverter input for the same power output, contributing to overall system reliability and efficiency.
When integrating with existing solar charging systems, connect the inverter directly to your 24V battery bank in parallel with your solar charge controller. Avoid connecting the inverter to the "load" terminals of a solar charge controller, as the power demands may exceed the controller's capacity. Always ensure the total power consumption of connected appliances remains within the inverter's continuous power rating of 3000W.
Typical Applications
| Application | Description |
|---|---|
| Mobile Living | Powering appliances in motorhomes, caravans, boats, and campervans. |
| Off-Grid Systems | Providing mains electricity for remote cabins, sheds, and workshops without grid access. |
| Backup Power | Emergency power during outages for essential home or small business equipment. |
| Field Work & Events | Powering tools, lighting, and sound systems at outdoor sites or events. |
Built-In Protection Functions
This Photonic Universe inverter incorporates multiple safety features for reliable operation and protection of your system and appliances. These include automatic shutdown for over-discharge • overload • overheating (at 60 ±5°C) • short-circuit • low battery voltage (shutdown at 20.0V ± 1.0V DC, alarm at 21.0V ± 1.0V DC) • and high voltage shutdown (at 31.0V ± 1.0V DC).
Common Questions
What is a pure sine wave inverter?
A pure sine wave inverter produces an AC waveform that is smooth and consistent, almost identical to the electricity supplied by the national grid. This makes it suitable for all types of electronic devices, especially sensitive ones like medical equipment, laptops, and appliances with motors, reducing the risk of damage or malfunction.
Can I use this inverter with a 12V battery system?
No, this inverter is specifically designed for 24V DC input. Connecting it to a 12V battery will not provide the correct operating voltage and may prevent it from functioning or cause damage. Always match the inverter's input voltage to your battery bank's voltage.
What kind of appliances can a 3000W inverter power?
A 3000W continuous inverter can power a wide range of household appliances, including fridges, microwaves, kettles, power tools, televisions, and charging multiple electronic devices. Always check the power consumption of your appliances and ensure the total does not exceed 3000W continuously or 6000W for brief surge periods.
How far does the wireless remote control work?
The included wireless On/Off remote control has an approximate operating radius of 50 metres, offering convenient control of the inverter from a distance, which is particularly useful in larger vehicles or remote installations.
Installation Notes
- Connect the inverter directly to your 24V battery or battery bank using appropriately sized cables.
- Ensure all connections are secure and correctly polarised (positive to positive, negative to negative).
- Position the inverter in a well-ventilated area, away from direct sunlight, moisture, and flammable materials.
- Do not connect the inverter to the "load" terminals of a solar charge controller if the power demand is high; connect directly to the battery.
- An adaptor can be used for multiple sockets, provided the total power consumption remains within 3000W.
Before You Buy
- Verify your battery bank voltage is 24V DC to ensure compatibility with this inverter.
- Calculate the total continuous power (Watts) of all appliances you intend to run simultaneously.
- Consider the surge power requirements of motor-driven appliances (e.g., fridges, pumps) and ensure they are within the 6000W surge capacity.
- Ensure you have adequate battery capacity (Ah) to support your desired run times.
- Consult the user manual for detailed wiring diagrams and safety instructions.
Always verify product specifications and compatibility with your specific system requirements before purchase. This product is supplied with a 1-year manufacturer warranty.
