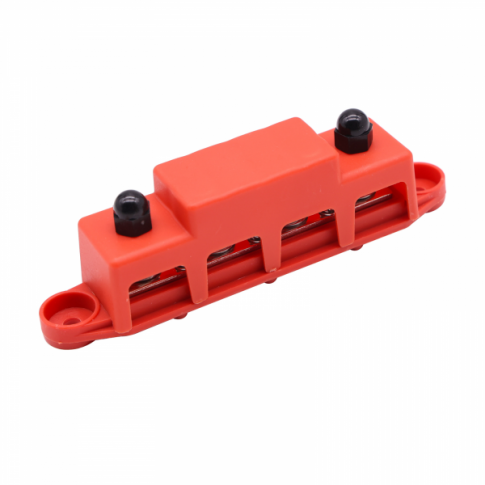

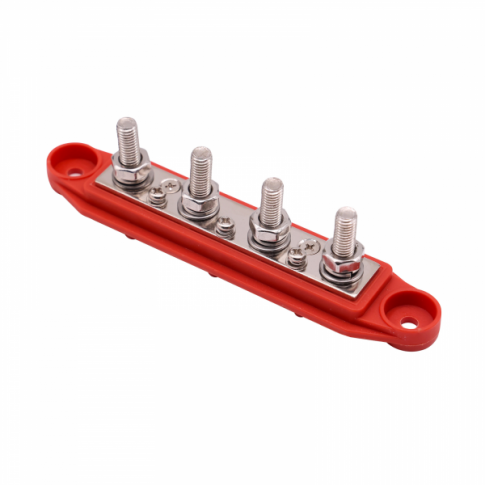

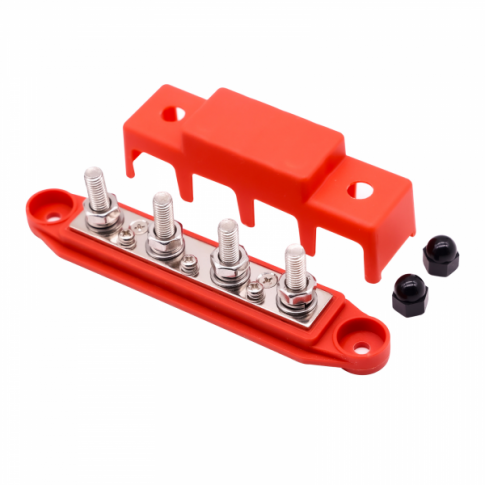

250A 48V red 4 way copper busbar with cover and M8 terminals
250A 48V red 4 way copper busbar with cover and M8 terminals
SKU:BBR-250
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Heavy Duty 250A Busbar [BBR-250]
Premium Power Distribution for Marine & Off-Grid Systems
The BBR-250 is a high-performance power distribution busbar designed for demanding electrical environments. Featuring a continuous rating of 250A and four heavy-duty M8 (8mm) stainless steel studs, it provides a secure and efficient way to connect multiple high-power cables to a single positive rail.
Key Features
- ✔ 250A Continuous current rating
- ✔ 4 x M8 (8mm) Stainless Steel studs
- ✔ Includes protective insulating cover
- ✔ Tin-plated copper for low resistance
- ✔ Flame-retardant Nylon base
Technical Specs
| Max Current | 250 Amps |
| Voltage Range | 12V - 48V DC |
| Terminals | 4 x M8 (8mm) |
| Bus Material | Tin-Plated Copper |
| Base Material | Glass Reinforced Nylon |
Compatibility / Fitment Guide
| System Type | Common Application | Notes |
|---|---|---|
| 12V/24V DC Systems | Campervans & RVs | Main battery distribution |
| 48V DC Systems | Off-Grid Solar Storage | High voltage battery banks |
| Marine 12V-48V | Boats & Yachts | Corrosion-resistant fixings |
OEM Cross Reference
| Manufacturer | Part Number |
|---|---|
| Photonic Universe | BBR-250 |
| Solarika | BBR-250 |
| Related Part (Black) | BBB-250 |
Installation Guide
1. Select a secure, flat mounting location near the battery bank. 2. Mount using the two pre-drilled holes in the base (fixings not included). 3. Attach cables using appropriately sized M8 ring terminals. 4. Tighten nuts to ensure a low-resistance connection. 5. Clip the insulating cover onto the base for safety. Professional installation recommended for high-amperage systems.
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket component manufactured to meet or exceed original equipment standards for electrical conductivity and mechanical durability.
How do I know if it is compatible?
If your system requires a positive distribution point rated up to 250A with M8 stud connections, this part is a universal solution. Check your required amperage before purchase.
Can I use this for a 48V battery system?
Yes, the BBR-250 is rated for DC voltages up to 48V, making it fully compatible with modern 48V lithium and lead-acid battery banks.
Note: Please verify your required terminal size (M8) and amperage rating (250A) before purchasing.
