DURABILITY: Manufactured with a high-conductivity tin-plated copper bar and corrosion-resistant stainless steel fixings, ensuring peak performance in harsh or marine environments.

Key Features

• ✔ 250A High-Current Capacity
• ✔ 4 x M8 (8mm) Stainless Steel Studs

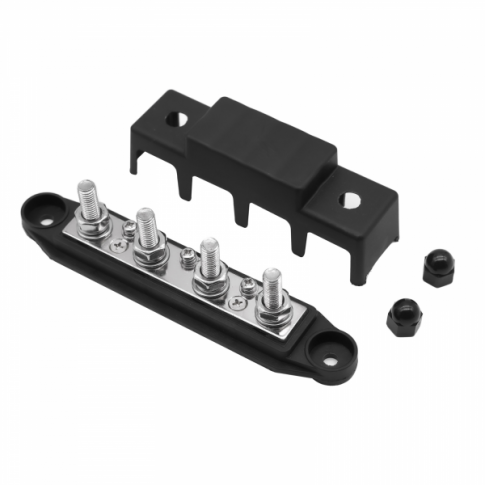

• ✔ Insulating Protection Cover Included
• ✔ Marine Grade Anti-Corrosive Design
• ✔ Low-Profile Space Saving Footprint

Technical Specs

Voltage Range	12V - 48V DC
Continuous Current	250 Amps
Terminal Stud Size	4 x M8 (8mm)
Bus Material	Tin-Plated Copper
Screw/Nut Material	Stainless Steel
Base Material	Glass Reinforced Nylon

System Type	Typical Application	Notes
Solar / Off-Grid	Battery bank parallel connections	Ideal for 48V battery stacks
Marine	Boat & Yacht DC distribution	Salt-spray resistant hardware
Automotive	RV, Campervan, 4x4 Auxiliary power	Fits standard ring terminals

1. Secure the base to a flat surface using the provided mounting holes.
2. Ensure all cable ring terminals are clean and free of oxidation.
3. Tighten M8 nuts to the appropriate torque for your cable size (avoid over-tightening).
4. Snap the insulating cover into place to prevent accidental short circuits.

Is this a genuine original part?

This is a premium-grade Solarika power distribution component, designed to meet or exceed original equipment standards for high-current DC applications.

How do I know if it is compatible?

If you require a 4-way connection point for a system up to 48V and a total draw of 250A or less, the BBB-250 is the correct choice. Check your ring terminal size—this unit uses M8 (8mm) studs.

Can I use this for both Positive and Negative distribution?

Yes. While often sold in pairs (Black for Negative, Red for Positive), this black BBB-250 unit is functionally identical and can be used for either polarity, though standard practice uses black for negative/ground.
