24V 500Ah AGM deep cycle battery bank (12 x 2V batteries) for large power systems and energy storage

24V 500Ah AGM deep cycle battery bank (12 x 2V batteries) for large power systems and energy storage

AGM500AH-12SET

£1,999.99 GBP
£1,999.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

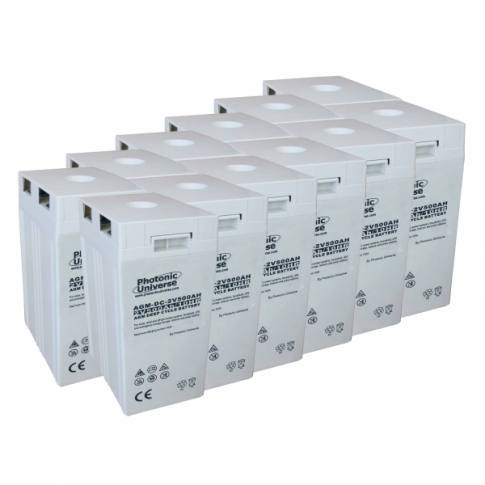

AGM500AH-12SET Battery Bank

24V 500Ah (12kWh) Premium AGM Storage Solution

The Solarika AGM500AH-12SET is a professional-grade energy storage solution designed for large-scale off-grid power systems. This set comprises twelve individual 2V 500Ah AGM batteries, which when wired in series, create a robust 24V 500Ah (12kWh) bank. Unlike standard 12V battery configurations, the use of 2V cells ensures significantly better cell balancing, increased thermal stability, and a much longer service life.

RELIABILITY: Engineered with high-density lead plates and advanced AGM technology, this bank is built to withstand deep discharge cycles in demanding solar and backup environments.

Key Features

  • ✔ Maintenance-Free: Sealed AGM design
  • ✔ Long Cycle Life: ~1200 cycles at 30% DoD
  • ✔ Low Self-Discharge: Ideal for backup power
  • ✔ Heavy Duty: Thick plates for deep discharge
  • ✔ Safety: Non-spillable and explosion-proof

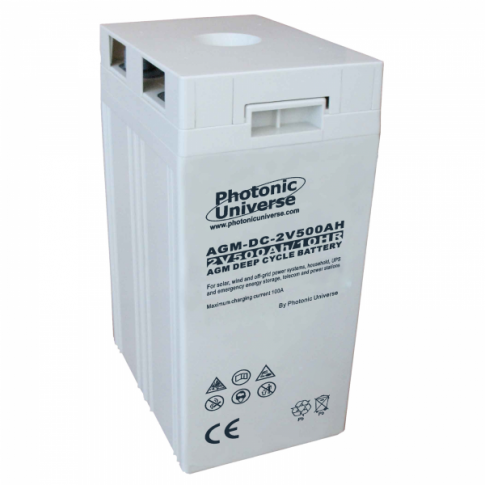

Technical Specs (Per 2V Unit)

Nominal Voltage: 2V
Capacity: 500Ah (10h rate)
Max Charge Current: 100A
Terminal Type: M10 Bolts
Weight (Per Cell): 27 kg
Unit Dimensions: 242 x 174 x 365 mm

Full Bank Specifications (24V)

Total Voltage 24V DC
Total Energy Capacity 12kWh
Total Bank Weight Approx. 340 kg (Includes Connectors)
Cycle Use Charge 28.2V
Standby Use Charge 27.4V

OEM Cross Reference

Photonic Universe AGM500AH-12SET
Eos Solar Solutions AGM500AH-12SET
System Compatibility 24V Solar Off-Grid / UPS Systems

Installation & Wiring

This kit is supplied with metal plate connectors specifically designed to link the 12 cells in series. Due to the high weight (~340kg total), please ensure the installation surface is load-rated. For 24V operation, connect the positive of one cell to the negative of the next in sequence. Always use insulated tools.

Questions & Answers

Is this bank better than two 12V 250Ah batteries?

Yes. Using 2V cells allows for much thicker internal plates and more uniform charging across the bank, which typically results in a 2-3x longer lifespan compared to standard 12V batteries in deep-cycle applications.

How do I know if it is compatible with my inverter?

This bank is compatible with any 24V inverter (Victron, Mastervolt, Growatt, etc.). Simply ensure your inverter supports AGM charging profiles with a bulk voltage of approx 28.2V.

Does it come with the connecting plates?

Yes, the AGM500AH-12SET includes a full set of heavy-duty metal plate connectors and terminal bolts for immediate assembly.

Note: Solarika is a trademark of Solarika.co.uk. Please verify your system voltage requirements before purchasing. Due to weight, this item ships on a pallet.
