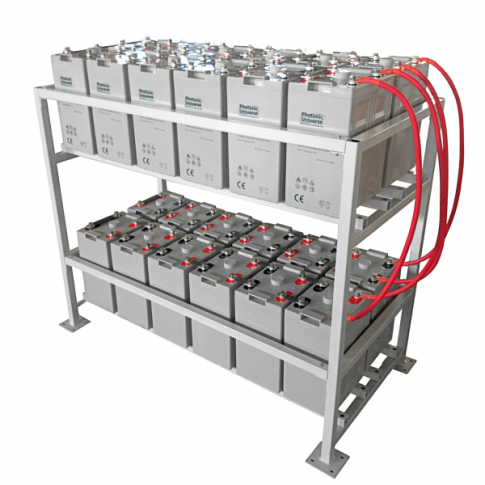

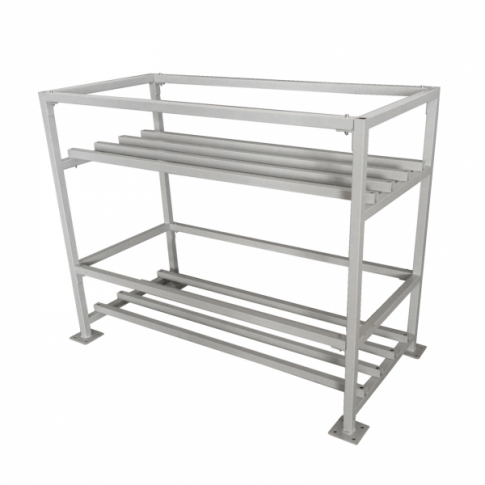

24kWh 48V 500Ah AGM deep cycle battery bank with metal racking (24 x 2V batteries)
24kWh 48V 500Ah AGM deep cycle battery bank with metal racking (24 x 2V batteries)
SKU:AGM500AH-24SETR
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
AGM500AH-24SETR Battery Bank
48V 500Ah (24kWh) High-Capacity Energy Storage
The AGM500AH-24SETR is a professional-grade 48V battery bank system designed for substantial energy requirements. Comprising twenty-four individual 2V 500Ah AGM cells, this setup provides a massive 24kWh of total energy storage. By utilizing 2V cells in series rather than standard 12V blocks, the system ensures balanced charging and a significantly extended service life, making it the gold standard for off-grid residential and industrial power.
Key Features
- ✔ 24kWh total energy capacity
- ✔ Maintenance-free sealed AGM tech
- ✔ ~1,200 cycles at 30% D.O.D.
- ✔ Heavy-duty M10 bolt terminals
- ✔ Low self-discharge rate
Technical Specs
| System Voltage: | 48V DC |
| Bank Capacity: | 500Ah (24,000Wh) |

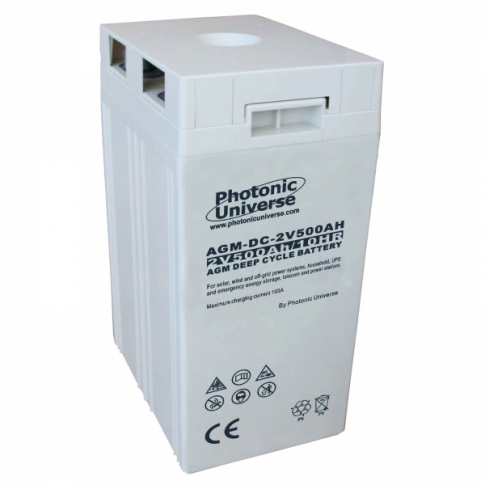

| Cell Type: | 2V AGM Deep Cycle |
| Max Charge Current: | 100A |
| Cycle Voltage: | 56.4V |
| Total Weight: | Approx. 720kg |
Compatibility / Fitment Guide
| System Type | Compatible Inverters/Chargers | Notes |
|---|---|---|
| Solar PV Systems | Victron MultiPlus, SMA Sunny Island, Growatt | Ideal for 48V Off-grid or Hybrid |
| Telecom/Backup | Universal 48V UPS Systems | Sealed for indoor/rack use |
| Wind Power | 48V Wind Turbine Controllers | Handles high recharge currents |
OEM Cross Reference
| Photonic Universe | AGM500AH-24SETR |
| Eos Solar | 24kWh 48V 500Ah Bank |
| Solarika Equivalent | SLK-48V500-AGMSET |
Installation Guide
This system is supplied as 24 individual 2V units. Batteries must be connected in Series to achieve the 48V output. Ensure all terminal bolts (M10) are tightened to manufacturer specifications (approx. 10-12 Nm) to prevent arcing. Due to the significant weight (720kg total), please ensure the floor or racking surface is rated for heavy loads. Professional installation by a qualified electrician or solar technician is highly recommended.
Questions & Answers
Is this a genuine original part?
This is a premium high-capacity AGM battery bank produced by Solarika to the exact performance specifications of the AGM500AH-24SETR series, ensuring 100% compatibility with existing 48V racking systems.
Why use 2V cells instead of 12V batteries?
2V cells allow for a simpler series-only connection. In a 48V bank of 12V batteries, parallel strings are often required which can cause uneven charging. 2V cells ensure all 500Ah is charged and discharged uniformly, extending the life of the bank by several years.
What is the recommended depth of discharge?
For the best balance between usable energy and longevity, we recommend a 30% Depth of Discharge (DOD), which typically yields 1,200 cycles. Occasional 50% DOD is acceptable but will reduce overall cycle life.
Note: Product weight exceeds 700kg. Shipping is typically via palletised freight only. Please verify your installation site accessibility before ordering. Visit Solarika.co.uk for further technical documentation.
