ADVANCED SHADING PERFORMANCE: Equipped with bypass diodes between every single cell, ensuring 10-20% higher energy yields in partially shaded environments compared to standard panels.

Key Features

• ✔ Peel & Stick: Strong self-adhesive backing

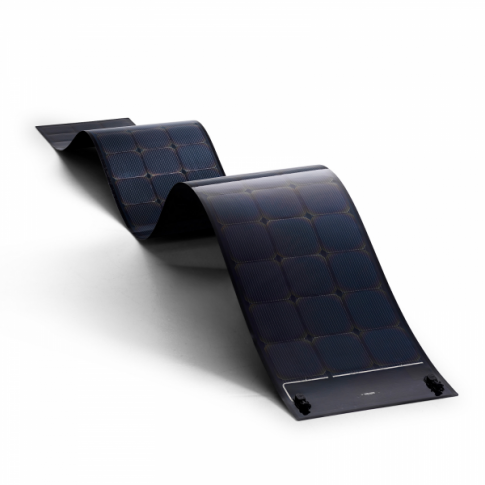

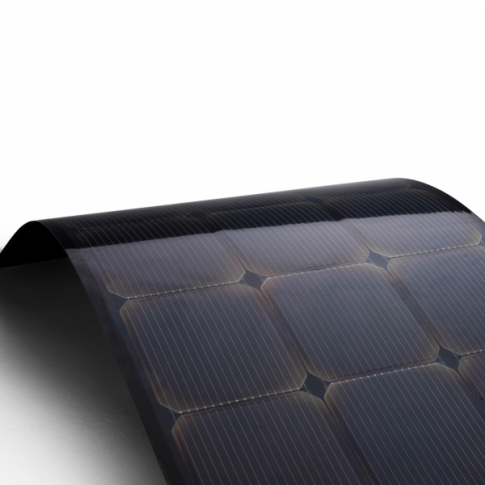

• ✔ Ultra-Flexible: Ideal for curved roofs
• ✔ Shatterproof: No glass or micro-cracking
• ✔ Eco-Friendly: 90% lower CO2 footprint
• ✔ Lightweight: Only 5.8kg for a 4m panel

Technical Specs

Peak Power (Pmax):	245W
Max Power Voltage (Vmp):	36.4V
Max Power Current (Imp):	6.6A
Open Circuit Voltage (Voc):	45.6V
Short Circuit Current (Isc):	7.6A
Dimensions:	4025 x 516 x 2 mm
Weight:	5.8 kg

Application	Surface Compatibility	Benefit
Campervans / RVs	Curved steel or fiberglass roofs	Aerodynamic, no drilling
Marine / Boats	Decks and cabin tops	Walkable and saltwater resistant
Industrial Roofs	Bitumen, PVC, or metal sheets	Low weight for weak structures

Setup: Simply peel the backing and apply to a clean, dry surface. Ensure the surface temperature is between 10°C and 35°C during application for optimal adhesion. This panel requires an MPPT Charge Controller (minimum 20A-30A depending on battery voltage) for efficient operation. Standard MC4 connectors are required for cabling (sold separately).

Is this panel walkable?

Yes, due to the CIGS thin-film technology and lack of glass, this panel is designed to be walkable when fully adhered to a solid surface, making it perfect for marine decks.

How do I know if it is compatible?

Verify the available length (4m+) and ensure you use an MPPT controller. This panel is compatible with almost any flat or curved surface using its adhesive backing.

Why is CIGS better than standard crystalline panels?

CIGS panels are more flexible, thinner, and offer superior performance in low-light and shaded conditions. They also do not suffer from micro-cracking when exposed to mechanical stress or vibrations.
