20W Reinforced Semi-Flexible Solar Panel
Durable ETFE Coating | Monocrystalline | 12V Battery Charging

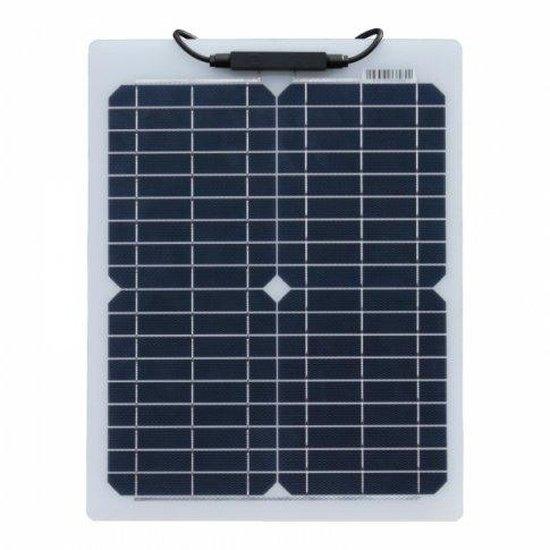

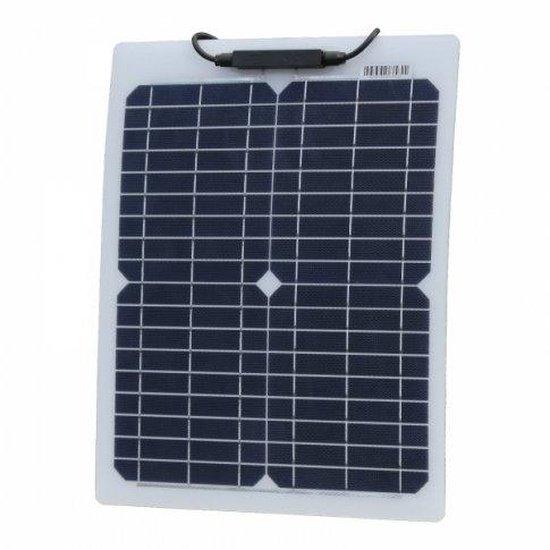

The Photonic Universe 20W Reinforced Semi-Flexible Solar Panel (ARFLX-20M) offers a robust and efficient solution for generating free electricity. Featuring high-efficiency monocrystalline solar cells and a unique 7-layer design with an embedded anodised aluminium sheet, this panel is built for enhanced strength and resilience. Its durable ETFE surface provides superior protection against environmental factors, ensuring a longer service life compared to standard semi-flexible panels.
Designed for permanent outdoor use, this lightweight (1.1kg) and waterproof panel is ideal for charging 12V batteries in a wide range of applications, including motorhomes, caravans, boats, and off-grid systems. Its semi-flexible nature allows for installation on slightly curved surfaces, making it a versatile choice for various mobile and static setups.
IMPORTANT NOTE: A solar charge controller is required to charge 12V batteries safely and efficiently with this panel.
Key Features
| ▶ Reinforced 7-Layer Design — Embedded anodised aluminium for superior strength and resilience. |
| ▶ Durable ETFE Surface — Offers extended service life, resistance to cracking, delamination, and corrosion. |
| ▶ High-Efficiency Monocrystalline Cells — Provides reliable power output for various applications. |
| ▶ Semi-Flexible Construction — Ideal for slightly curved surfaces and bonding installations. |
| ▶ Lightweight & Compact (1.1kg) — Great for vehicles, portable setups, and reducing roof load. |
| ▶ Waterproof & Weatherproof — Sealed design ensures reliable performance in all weather conditions. |
| ▶ Saltwater Resistant — Perfect for marine environments, including boats and yachts. |
| ▶ Walkable Surface — Robust enough to withstand occasional foot traffic without damage. |
| ▶ Anti-Reflective Coating — Lightly textured ETFE enhances light absorption for increased efficiency. |
| ▶ Pre-fitted MC4 Connectors — Simplifies connection to existing solar systems and extension cables. |
Technical Specifications
| Parameter | Value |
|---|---|
| Peak Power (Pmax) | 20W |
| Maximum Power Voltage (Vmp) | 17.5V |
| Maximum Power Current (Imp) | 1.14A |
| Open Circuit Voltage (Voc) | 21.6V |
| Short Circuit Current (Isc) | 1.21A |
| Power Allowance Range | +/- 5% |

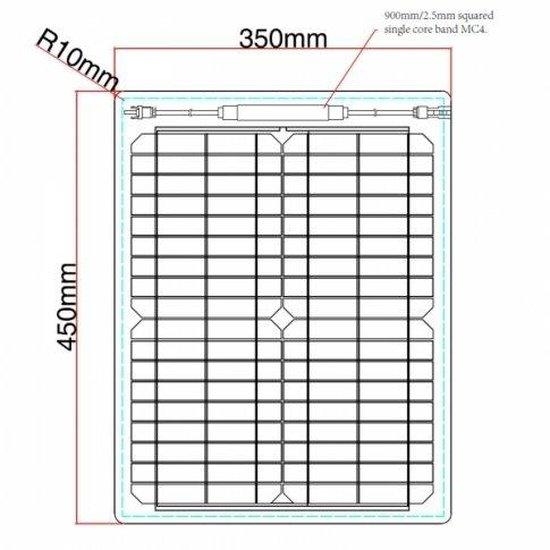

| Solar Panel Dimensions | 450 x 350 x 4 mm |
| Junction Box Dimensions | 90 x 16 x 16 mm |
| Weight | 1.10 kg |
| Cable Length & Cross-Section | 2 x 0.9m (2.5mm²) |
| Connectors | MC4 (Male & Female) |
Panel Construction & Performance
This Photonic Universe semi-flexible solar panel features a unique 7-layer construction, incorporating an embedded sheet of anodised aluminium. This reinforcement is fully encapsulated within the panel, providing exceptional strength and resilience, making it highly resistant to physical stress and environmental wear.
The panel's surface is made from a robust ETFE (Ethylene Tetrafluoroethylene) material. ETFE is renowned for its durability, high-temperature resistance, and superior lifespan compared to standard PET surfaces. This material significantly reduces the likelihood of cracking, delamination, and corrosion, ensuring long-term performance. The lightly textured ETFE coating also acts as an anti-reflective surface, allowing the panel to absorb more sunlight and thereby increasing its overall efficiency.
Utilising high-efficiency monocrystalline solar cells, the panel is designed to convert sunlight into electricity effectively. It comes equipped with 0.9m of high-quality 2.5mm² solar cable, pre-fitted with waterproof MC4 connectors, facilitating easy and secure integration into your existing solar power system or for linking multiple panels.
Typical Applications
| Application | Description |
|---|---|
| Motorhomes & Caravans | Provides reliable 12V battery charging for on-the-go power needs. |
| Campers & Boats | Lightweight and saltwater-resistant, ideal for marine and recreational vehicles. |
| Off-Grid Systems | Suitable for small cabins, sheds, or remote monitoring equipment. |
| Solar Lighting Systems | Powers outdoor lighting setups where mains electricity is unavailable. |
| Backup Power | Contributes to small-scale backup power solutions for essential 12V loads. |
| Direct DC Loads | Can directly power applications not sensitive to voltage/current changes, such as small electric motors or pumps. |
Built-In Protection & Durability
The Photonic Universe 20W semi-flexible solar panel is engineered for exceptional durability and long-term performance. Its unique 7-layer construction with embedded anodised aluminium provides significant structural integrity, making it highly resistant to mechanical stress. The advanced ETFE surface coating offers superior resistance to UV degradation, extreme temperatures, saltwater, and chemical corrosion, ensuring a longer operational lifespan. This robust design also makes the panel less prone to cracking and delamination, and capable of withstanding occasional foot traffic, making it particularly suitable for demanding environments like marine applications. The fully sealed, waterproof design ensures reliable operation in all weather conditions.
Common Questions
Do I need a solar charge controller with this panel?
Yes, a solar charge controller is essential for safely charging 12V batteries. It prevents overcharging and deep discharging, protecting your battery and optimising its lifespan. The panel cannot be connected directly to a battery.
Can this panel be walked on?
Yes, thanks to its reinforced design and durable ETFE coating, this panel is robust enough to withstand occasional foot traffic, making it suitable for boat decks and other accessible surfaces.
What are MC4 connectors?
MC4 connectors are industry-standard, waterproof connectors designed for solar panels. They ensure a secure and reliable connection, simplifying the process of linking multiple panels or connecting to your charge controller and system cabling.
Is this panel suitable for marine environments?
Absolutely. The panel's durable ETFE coating provides high resistance to saltwater environments, making it an excellent choice for boats, yachts, and other marine applications.
Installation Notes
- Ensure the panel is connected to an appropriate solar charge controller when charging 12V batteries.
- Review the manufacturer's handling and installation guidelines before mounting the panel.
- For optimal performance and longevity, ensure the mounting surface is clean and suitable for bonding if not using mechanical fixings.
- Consider the panel's semi-flexible nature for installation on slightly curved roofs or surfaces.
- Proper cable management and waterproof sealing of connections are crucial for outdoor longevity.
Before You Buy
- Verify your system voltage is compatible with a 12V solar panel and charge controller.
- Confirm the physical dimensions (450 x 350 x 4 mm) are suitable for your intended mounting location.
- Ensure you have a compatible solar charge controller for your battery type and capacity.
- Consider your average daily power requirements to determine if 20W is sufficient for your application.
- For complex installations or grid-tie applications, professional advice is recommended.
Please verify all specifications and compatibility requirements with your existing system components before purchase. Product appearance and specifications are subject to change by the manufacturer.
