ADVANCED DURABILITY: The integrated aluminium layer prevents cell cracking during installation on curved surfaces and allows for limited foot traffic in marine environments.

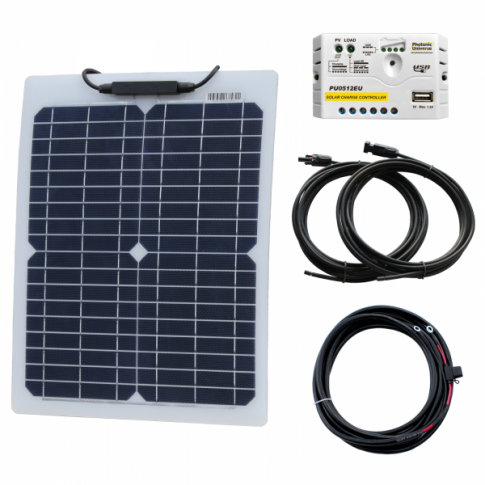

Kit Contents

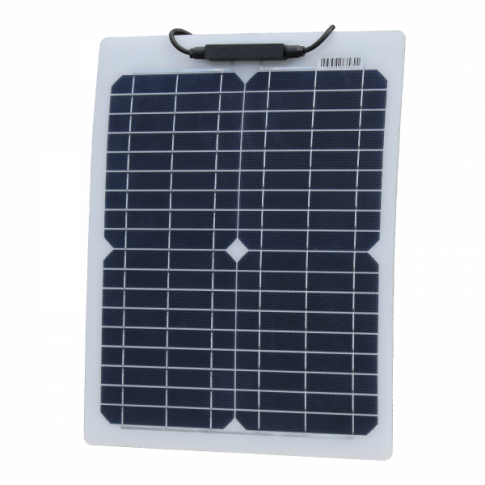

• ✔ 20W Reinforced Semi-Flexible Solar Panel

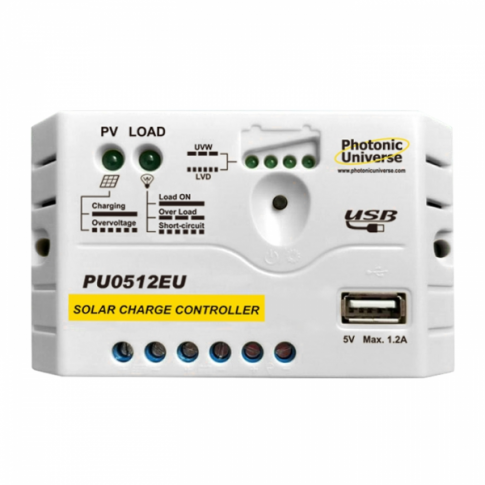

• ✔ 5A PWM Solar Charge Controller (with USB)

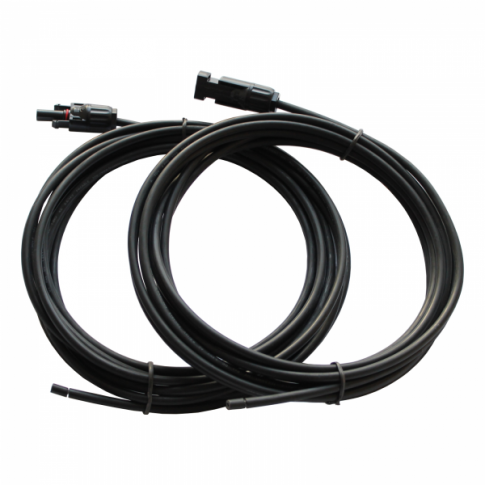

• ✔ 5m Extension Cables with MC4 Connectors

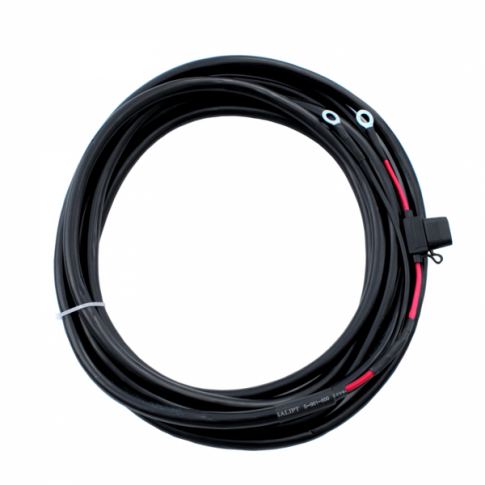

• ✔ 5m Battery Cable with 10A Fuse & Ring Terminals
• ✔ ETFE Non-Stick Self-Cleaning Surface

Technical Specs

Peak Power	20W
Max Power Voltage (Vmp)	17.5V
Max Power Current (Imp)	1.14A
Open Circuit Voltage (Voc)	21.6V
Short Circuit Current (Isc)	1.21A

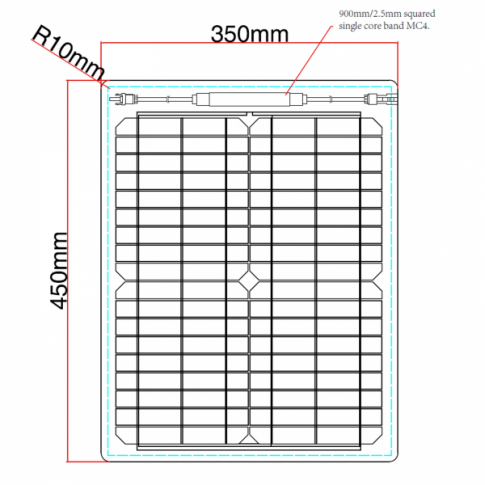

Dimensions	450 x 350 x 4 mm
Weight	1.10 kg

System/Vehicle	Application Type	Notes
Motorhomes & Caravans	12V Battery Trickle Charge	Maintains battery life during storage.
Marine / Yachts	Deck & Curved Surface Mounting	ETFE coating resists salt water corrosion.
Off-Grid Systems	Sheds, Gates, & Lighting	Powers small LED systems or telemetry.

The panel can be secured using appropriate structural adhesive (Sikaflex) or via the provided eyelet mounting points if applicable. The kit is "Plug and Play" with MC4 connectors. Ensure the solar charge controller is mounted in a dry, ventilated area. Always connect the battery to the controller before connecting the solar panel.

Is this a genuine original part?

This is a premium quality Solarika kit, incorporating high-spec components and the ARFLX-20M reinforced panel manufactured to exceed standard flexible solar specifications.

How do I know if it is compatible?

This kit is designed for any 12V lead-acid, AGM, or Gel battery system. If you are looking to maintain a battery on a boat, caravan, or motorhome, this kit provides all the necessary components.

What is the benefit of the aluminium reinforcement?

The aluminium sheet embedded within the 7-layer laminate provides structural rigidity. This prevents the solar cells from developing micro-cracks when the panel flexes, significantly extending the lifespan compared to plastic-only panels.
