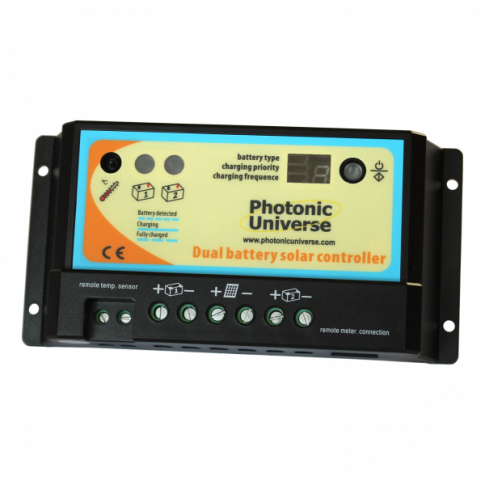

INTELLIGENT CHARGING: Features programmable charging priority, allowing you to divert more power to a specific battery (e.g., 80% to leisure, 20% to starter) until one is full, after which 100% of the current is automatically redirected to the other.

Key Features

• ✔ Dual Battery Charging (Engine & Leisure)
• ✔ Remote LCD Meter with 10m Cable
• ✔ Auto 12V / 24V System Detection
• ✔ PWM Technology for Battery Longevity
• ✔ Multi-Stage Protection Suite

Technical Specs

Rated Current:	20 Amp
System Voltage:	12V / 24V Auto
Max Solar Input:	320W (12V) / 640W (24V)
Battery Types:	Sealed, Gel, Flooded
Self-Consumption:	4mA (Night) / 10mA (Day)
Dimensions:	15.5 x 7.6 x 4.0 cm
Terminals:	Up to 4.0mm²

Application	System Type	Recommended Use
Camper / Motorhome	12V/24V Dual Bank	Charging Starter + Leisure battery
Marine / Boat	12V/24V Dual Bank	House bank + Engine crank battery
Off-Grid Cabin	12V/24V Single/Dual	Backup lighting + Device charging

1. Connect Battery 1 (Starter) and Battery 2 (Leisure) to the designated terminals.
2. Connect the Solar Panel array (ensure voltage does not exceed limits).
3. Plug the Remote LCD Meter into the RJ-45 socket for live data monitoring.
4. Configure charging priority via the controller or remote unit if required.

Can I use this with just one battery?

Yes, the DB2024-RM will automatically detect if only one battery is connected and will direct 100% of the available solar power to that single battery.

Does it come with the remote monitor?

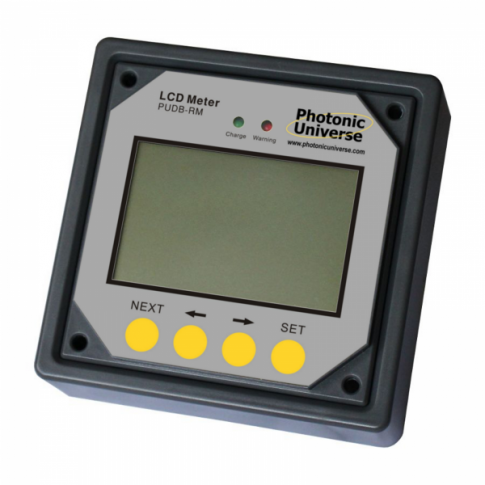

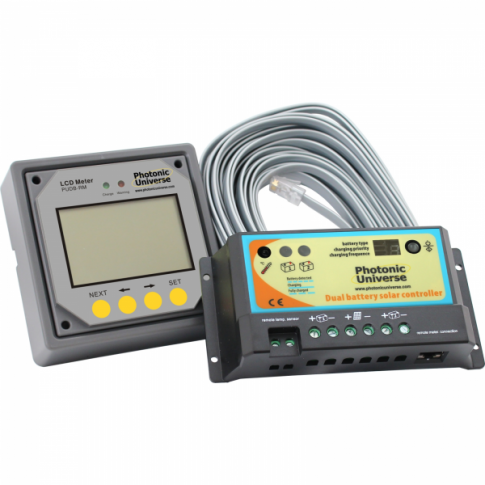

Yes, this SKU (DB2024-RM) includes the MT1 remote LCD display meter and a 10-meter connection cable as standard.

What is the benefit of PWM for my batteries?

PWM (Pulse Width Modulation) charging acts like a slow charger for your batteries, preventing gassing and overheating, which significantly extends the overall service life of lead-acid, AGM, and Gel batteries.
