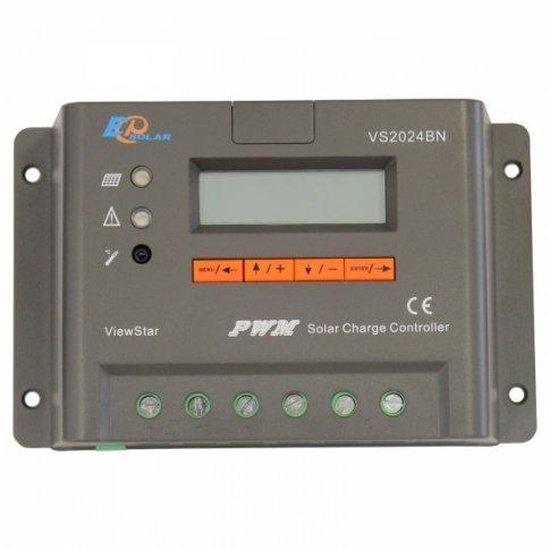

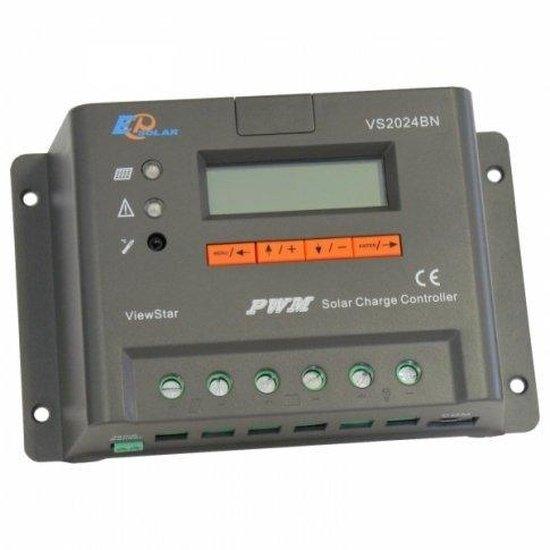

20A 12V/24V solar charge controller with LCD display, adjustable charging settings and energy statistics

Discover the 20A 12V/24V Solar Charge Controller with LCD display – your ultimate solution for intelligent and reliable solar power management. This advanced controller empowers you with full control over your charging process, ensuring optimal battery health and extended lifespan for your solar setup. Gain instant insights into your system's performance and enjoy unparalleled customization, making off-grid or remote power simpler and more efficient than ever. It's designed for anyone seeking a smart, robust, and user-friendly way to harness solar energy.

This powerful 20A solar charge controller automatically adapts to both 12V and 24V battery systems, providing seamless integration into various setups. Beyond basic functionality, it’s packed with features to give you a truly optimized experience.

• Advanced Charging Technology: Utilizes PWM (Pulse Width Modulation) technology to significantly boost your battery's charge acceptance and prolong its life. This smart feature can even help restore some lost battery capacity, keeping your power reliable.
• Comprehensive Protection: Equipped with a full suite of electronic safeguards, including protection against reverse current at night, over-charging, deep discharge, over-heating, over-load, short circuits, and reverse polarity. Your system and batteries are always secure.
• Versatile Compatibility: Designed for small to medium solar charging systems, handling solar panels up to 320W for 12V batteries and an impressive 640W for 24V batteries. Its wide solar input voltage range, up to 48V, ensures compatibility with many solar modules, even those typically used in on-grid systems.
• Battery Flexibility: Compatible with single gel, sealed, or flooded batteries or battery banks. The controller intelligently detects your system's voltage for hassle-free setup.
• Intuitive LCD Display & Controls: Features a clear LCD display with a multi-level menu, navigated by 4 multifunctional buttons. LED indicators offer quick status checks. A built-in temperature sensor enhances charging accuracy.
• Real-Time Performance Monitoring: Access vital data instantly, including solar panel and battery voltage, current, battery state of charge, and temperature. Stay informed about your system's health at a glance.
• Energy Statistics Counter: Track your solar performance with daily and monthly charge accumulation. This allows you to compare efficiency over different periods and make informed decisions.
• Customizable Load Work Mode: Program your load work mode with a timer for specific needs, such as setting on/off schedules for lighting or other connected devices.
• Personalized Battery Settings: Create a unique "user-defined" battery type, allowing you to set parameters specifically tailored to your battery's requirements for optimal charging and longevity.

For those seeking even deeper insights and control, this model offers cutting-edge communication capabilities:

• Remote Monitoring with MT50: Connect to a remote meter (MT50) with an LCD screen to view system performance details and manually adjust parameters and load settings from a distance.
• Wireless Control via Wi-Fi: Add a Wi-Fi module to create a network, enabling you to monitor and adjust charging parameters and controller settings conveniently through the Solar Station Monitor mobile app (compatible with Android phones and tablets).
• PC Connectivity: Use an RJ45 to USB cable to link the controller directly to your PC or laptop. The Solar Station computer program (compatible with Windows PCs) provides detailed monitoring and adjustment options.

Through any of these communication methods, you gain comprehensive access to various charging parameters like voltage, current (for both solar panel and load), battery state of charge, accumulated charge and discharge energy, minimum/maximum voltage, and more. You can also fine-tune battery type and capacity, set charging voltages for different stages, define stage durations, create user-defined battery profiles, and personalize 'load' settings like timers for specific devices.

To further enhance charging precision, the controller includes terminals for an optional remote temperature sensor. This sensor can be attached directly to your battery, providing highly accurate temperature measurements for truly optimized charging performance.

Key Specifications at a Glance:

• Fully automated operation with auto 12V/24V selection
• Rated charging and load current: 20A
• Enhanced monitoring and charging/load work control
• Maximum solar panel input voltage: 48V
• 3 pairs of terminals for input, battery, and output wires up to 10mm²
• Built-in temperature sensor for automatic compensation (-30mV/C/12V)
• Comprehensive electronic protection features
• RJ45/RS-485 port for remote meter (MT50) or computer connection
• Self-consumption: 44mA max
• Working temperature: -20°C to +55°C
• Size: 16.5 x 10 x 5.0 cm
• Weight: 500 g
• Multiple mounting holes for easy installation

This product is backed by a 2-year manufacturer warranty, giving you confidence in your investment.

Installation Support:

A detailed user manual is included to guide you through wiring and operations. Should you need any assistance with installation or have technical questions, we offer FREE support via email or phone. We're here to help you get started!

Choose the 20A 12V/24V Solar Charge Controller for a truly smarter solar experience. Enjoy superior battery protection, precise charging, and the flexibility to manage your power system exactly how you need it. It's more than just a controller; it's the intelligent heart of your reliable solar energy setup, offering peace of mind and optimized performance for years to come.
