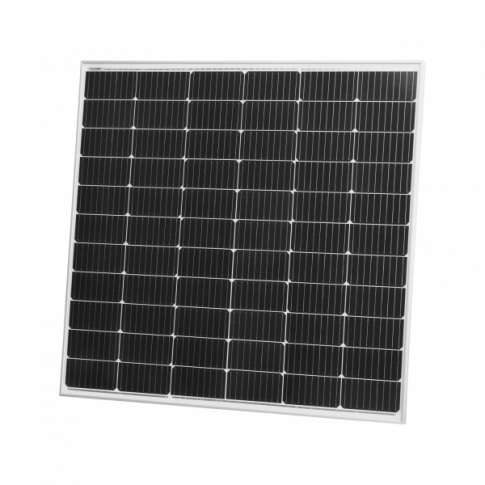

200W solar panel with 90cm cable
200W solar panel with 90cm cable
SKU:SWG-200M
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
SWG-200M 200W Monocrystalline Solar Panel
Premium High-Efficiency Power Generation
The SWG-200M is a professional-grade 200W monocrystalline solar panel engineered for maximum energy yield in diverse weather conditions. Built with high-performance multi-busbar cells, this panel offers superior conductivity and reduced internal resistance, making it the ideal choice for off-grid power systems, campervans, marine vessels, and remote monitoring stations.
Key Features
- ✔ High-Efficiency Cells: Monocrystalline tech for peak output.
- ✔ Bypass Diodes: Minimizes power drop caused by shade.

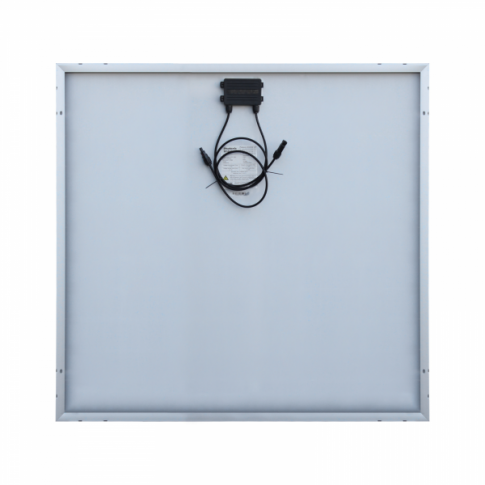

- ✔ Pre-Wired: Includes 90cm of solar cable with MC4 connectors.
- ✔ All-Weather Ready: IP67 rated waterproof junction box.
Technical Specs
| Peak Power (Pmax) | 200W |
| Voltage (Vmp) | 17.49V |
| Current (Imp) | 11.44A |
| Open Circuit Voltage (Voc) | 21.12V |
| Short Circuit Current (Isc) | 12.24A |
| Dimensions | 1038 x 992 x 30 mm |
| Weight | 10.5 kg |
System Compatibility Guide
| System Type | Configuration | Recommended Controller |
|---|---|---|
| 12V Battery Bank | Single Panel (Standard) | 20A PWM or MPPT |
| 24V Battery Bank | 2x Panels in Series | 20A MPPT |
| Hybrid Systems | Wind/Solar Mixed | Hybrid Wind/Solar Controller |
OEM Cross Reference
| Shenzhou New Energy | SZ-200-M |
| Photonic Universe | SWG-200M |
| Industry Standard | 200W Mono Rigid |
Installation Notes
Installation is straightforward via the 8 pre-drilled mounting holes on the frame. Ensure the panel is connected to a suitable charge controller before connecting to your battery bank. Compatible with standard Z-brackets, corner mounts, or tilting pole mounts.
Questions & Answers
Will this work with a 12V battery?
Yes, this panel is specifically designed for 12V systems. You will need a solar charge controller (PWM or MPPT) to regulate the voltage into the battery.
What happens if it gets shaded?
This model is fitted with built-in bypass diodes. This ensures that if one section of the panel is shaded, the remaining cells continue to produce power, significantly improving efficiency compared to older models.
Are the cables included?
Yes, the panel comes pre-fitted with 2 x 90cm of high-quality solar cable terminated with industry-standard MC4 connectors for a waterproof, secure connection.
Note: Technical data provided for STC (Standard Test Conditions): 1000W/m², 25°C, AM 1.5. Performance may vary based on location and installation angle.
Visit Solarika.co.uk for further technical support.
