200A 12V/24V/48V surface and panel mount battery isolator switch with M8 terminals for 2 batteries
200A 12V/24V/48V surface and panel mount battery isolator switch with M8 terminals for 2 batteries
SKU:BS2-200
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Battery Selector Switch 200A (BS2-200)
Reliable Power Management for Dual Battery Banks
The Solarika BS2-200 is a heavy-duty manual battery selector switch designed to provide complete control over two independent battery banks. Whether you are managing a marine vessel, an RV, or an off-grid solar installation, this switch allows you to isolate battery inputs, combine them for emergency starting, or disconnect the entire system for safety and maintenance.
Key Features

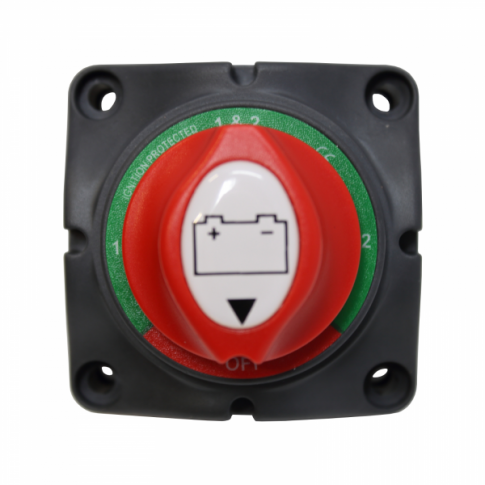

- ✔ 4-Position Control: Choose between Battery 1, Battery 2, Both (1+2), or OFF.
- ✔ High Capacity: 200A continuous rating suitable for high-load inverters.
- ✔ Multi-Voltage: Compatible with 12V, 24V, and 48V DC systems.
- ✔ Ignition Protected: Safe for installation on gasoline-powered boats.
Technical Specs
| Rated Current | 200A Continuous |
| Intermittent Rating | 300A (5 min) |
| Voltage Range | 6V - 50V DC |

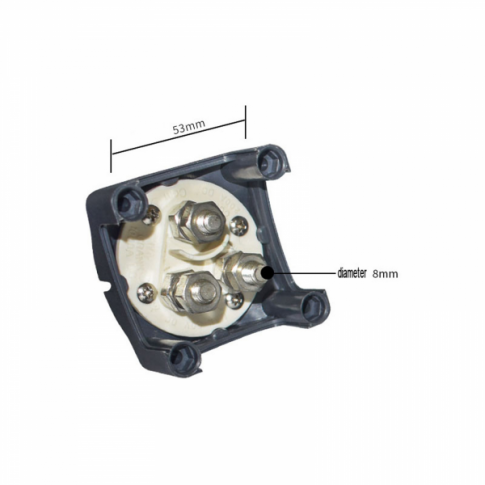

| Terminal Studs | M8 (8mm) |

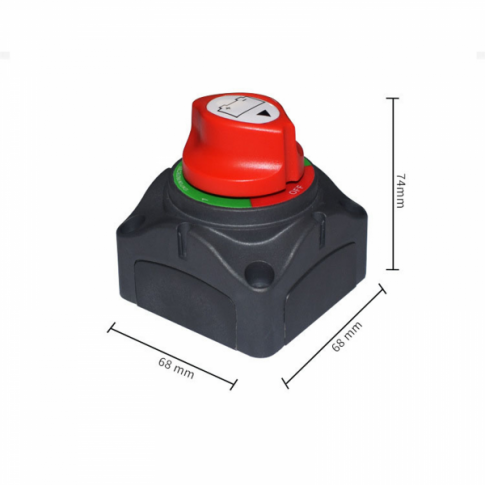

| Dimensions | 74 x 68 x 68 mm |
Compatibility / Fitment Guide
| Application Type | System Voltage | Recommended Use |
|---|---|---|
| Marine / Boats | 12V / 24V | Switching between starter and house banks. |
| Motorhomes / RVs | 12V / 24V | Main battery disconnect and selector. |
| Off-Grid Solar | 12V / 24V / 48V | Isolation of battery banks for maintenance. |
OEM Cross Reference
| Photonic Universe | BS2-200 |
| Functionally Similar To | Blue Sea 6007 / Perko 8501 |
| EAN Reference | 5060297349676 |
Installation Guide

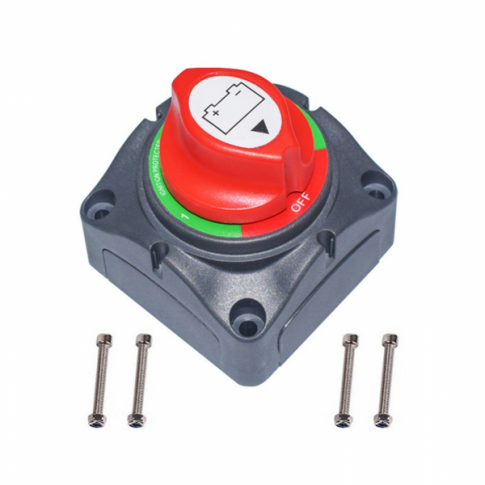

Mount the switch on a flat surface using the four pre-drilled holes. Use appropriate gauge battery cables (typically 25mm² to 50mm² depending on the load) with M8 ring terminals. Ensure the power is OFF before making any connections. Professional installation is recommended for marine and high-voltage solar systems.
Questions & Answers
Is this a genuine original part?
This is a premium Solarika branded part, manufactured to meet exact technical specifications for the BS2-200 standard, ensuring full compatibility with high-current DC systems.
How do I know if it is compatible?
If your current switch uses M8 terminals and is rated for 200A or less, this BS2-200 model is an ideal direct replacement or upgrade.
Can this be used on a 48V solar battery bank?
Yes, the BS2-200 is rated for up to 50V DC, making it perfectly suitable for 12V, 24V, and 48V battery configurations.
Note: Please verify your cable requirements and system current draw before purchasing. Ensure all connections are tightened to prevent heat buildup.
