2000W 48V MPPT wind charge controller with LCD display and dump load
2000W 48V MPPT wind charge controller with LCD display and dump load
SKU:HCM2000-48-48
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
2000W 48V MPPT Wind Charge Controller
Premium Aftermarket Renewable Energy Component
The HCM2000-48-48 is a professional-grade MPPT wind charge controller engineered to maximize the power harvesting from 48V wind turbines. Utilizing advanced Maximum Power Point Tracking (MPPT) boost technology, this unit ensures your battery bank remains charged even during low wind speeds by raising the turbine's voltage to the required threshold.
Key Features
- ✔ MPPT Boost Charging: Max power in low winds.

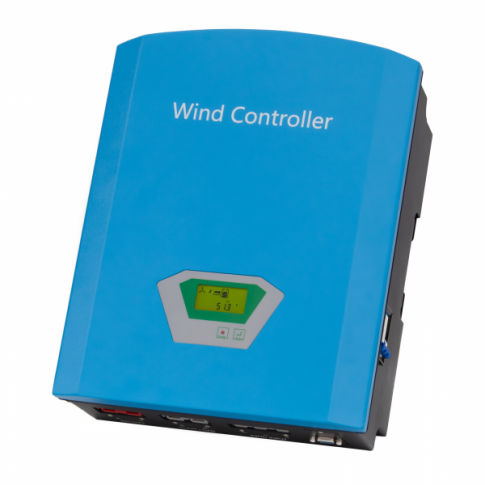

- ✔ LCD Display: Real-time voltage, current, and power monitoring.

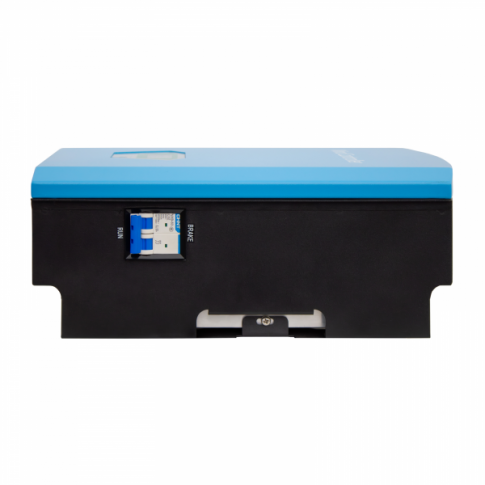

- ✔ Safety Braking: Automatic and manual brake functions.

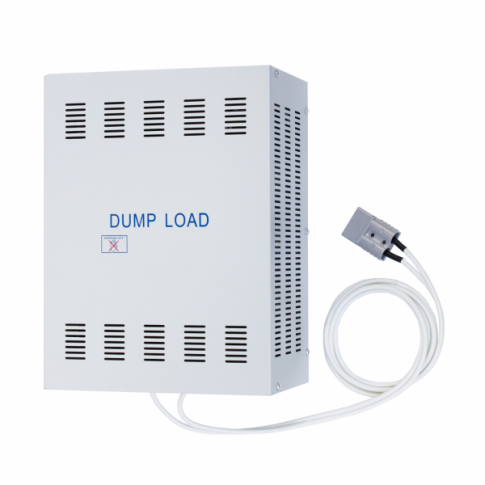

- ✔ External Dump Load: Prevents battery overcharging.
Technical Specs
| Nominal Battery Voltage | 48V |
| Max Wind Input Power | 2000W |
| Wind Input Voltage | 8V – 64V |
| Max Input Current | 42A |
| Self-Consumption | < 2W |
| IP Protection | Indoor Rated |
Compatibility / Fitment Guide
| System Type | Requirement | Notes |
|---|---|---|
| Wind Turbine | 3-Phase AC Output | 48V Systems Only |
| Battery Bank | 48V Nominal | Lead Acid / AGM / Gel |
| Applications | Off-Grid, Hybrid, Grid-Tie | Coastal or High Ground |
OEM Cross Reference
| Manufacturer | Photonic Universe |
| Part Number (SKU) | HCM2000-48-48 |
| Associated Turbine | WTD2000-48 |
Installation Guide

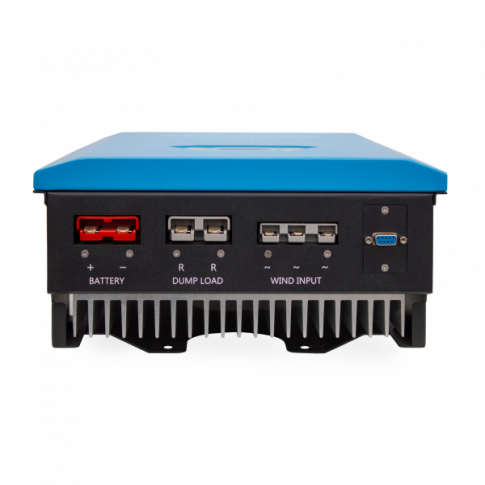

1. Connect the battery bank to the controller first. 2. Connect the external dump load to the designated terminals. 3. Finally, connect the 3-phase AC input from the wind turbine. Warning: Never connect the turbine before the battery bank is secured. Professional electrical installation is recommended.
Questions & Answers
Is this a genuine original part?
This is a premium solarika Aftermarket replacement part, built to the exact technical specifications of the HCM2000-48-48 for identical performance and fitment.
How do I know if it is compatible?
This controller is exclusively for 48V battery systems and wind turbines with 3-phase AC output. If your turbine is DC output or a different voltage, this unit will not be compatible.
Will this work in very low wind conditions?
Yes, the HCM2000-48-48 includes a boost function that allows it to begin charging even when the turbine voltage is as low as 8V, ensuring consistent power generation.
Note: solarika is not an authorized distributor for Photonic Universe. This product is a high-quality aftermarket alternative. Please verify system voltage before purchase.
