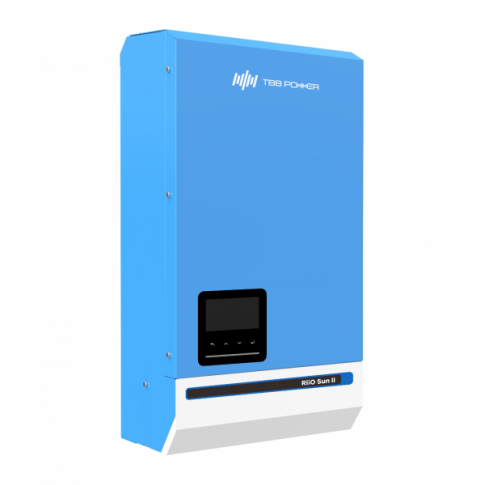

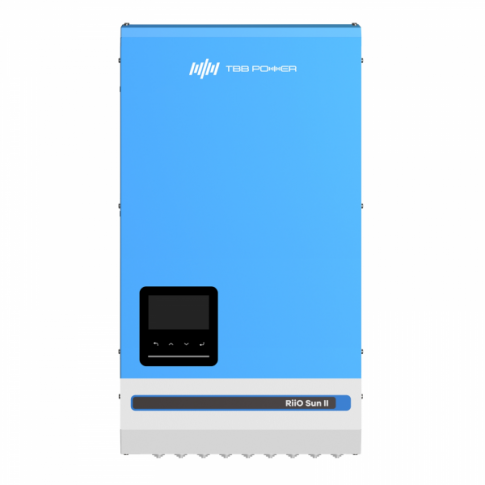

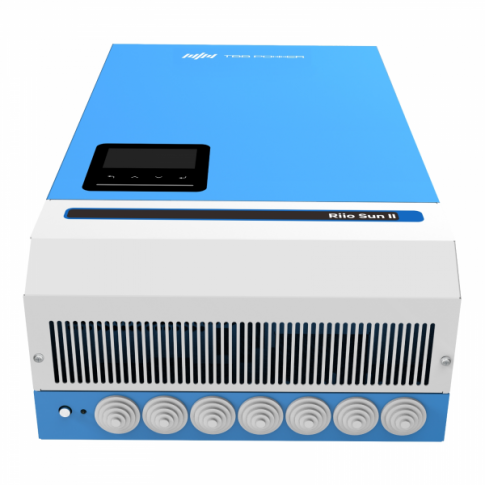

1kW 12V TBB Power RIIOSUN-II Hybrid Inverter charger
1kW 12V TBB Power RIIOSUN-II Hybrid Inverter charger
SKU:RIIOSUN-II-12-1K
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
1kW 12V TBB Power RIIOSUN-II Hybrid Inverter Charger
Pure Sine Wave ย |ย 60A MPPT ย |ย Transformer-Based Design
The TBB Power RIIOSUN-II 1kW 12V Hybrid Inverter Charger is a versatile, transformer-based all-in-one solar inverter designed for robust backup power, off-grid, and energy storage system (ESS) applications. This compact unit integrates a pure sine wave inverter, an advanced MPPT solar charge controller, a high-efficiency battery charger, and a rapid 4ms automatic transfer switch.
Engineered to handle significant surge loads, the RIIOSUN-II ensures continuous operation for critical appliances during power outages, providing reliable energy management for various setups.
KEY CAPABILITY: Can operate without a battery in single-use applications with a stable AC bypass supply, using PV energy as a supplement.
Key Features
| โถย All-in-One Design โ Combines pure sine wave inverter, MPPT solar charge controller, and battery charger in one compact unit. |
| โถย High Surge Capacity โ Transformer-based design handles significant surge loads for essential appliances. |
| โถย Rapid Transfer Switch โ Features a swift 4ms automatic transfer time for uninterrupted power to critical loads. |
| โถย Enhanced Flexibility โ Can be configured in parallel (up to 3 units in single phase) or three-phase (up to 9 units) for scalable output. |
| โถย ESS & Grid-Tie Capabilities โ Integrates with E4 LCD Monitor and IC-METER for advanced Energy Storage System and grid-tie functionalities. |
| โถย Automatic Generator Start (AGS) โ Ensures efficient operation by activating the generator only when necessary. |
| โถย Power Assist & Control โ Enables smaller generators to handle heavy loads by supplementing capacity and protecting AC sources from overload. |
| โถย ECO Mode โ Prolongs battery backup time by maintaining extremely low self-consumption. |
| โถย Remote Monitoring โ User-friendly monitoring via Nova Web and mobile app with the TBB-KIN2 Kinergy-II Wi-Fi module. |
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Battery Voltage | 12V |
| Continuous Power Output | 1000W / 1000VA (220-240V AC) |
| Peak Power | 2000W |
| AC Output Frequency | 50/60Hz |
| Output Waveform | Pure Sine Wave |
| Maximum Mains AC Charging Current | 40A |
| AC Transfer Current | 16A |
| Peak Inverter Efficiency | 89% |
| Zero Load Power | 12W |
| Maximum Solar Output Current | 60A |
| Maximum Charge Power | 860W @ 28.8V |
| Maximum PV Open Circuit Voltage | 150V |
| Maximum PV Power | 1200W |
| MPPT Voltage Range | 30 - 145V |
| Peak MPPT Efficiency | 98% |
| Protection Index | IP21 |
| Operating Temperature | -20ยฐC to +65ยฐC |
| Humidity | 95% without condensation |
| Altitude | <2000m |
| Dimensions (L x W x H) | 462 x 255 x 144 mm |
| Weight | 12 kg |
Charging & Output Modes
| Mode | Description |
|---|---|
| Solar Charging | Integrated 60A MPPT solar charge controller efficiently harvests energy from PV arrays. |
| AC Charging | Features a 40A maximum mains AC charging current for rapid battery replenishment from grid or generator. |
| Hybrid Operation | Combines solar, battery, and AC input (grid/generator) to intelligently power loads and charge batteries. |
| Bypass Mode | The 16A AC transfer switch allows direct pass-through of up to 3.68kW from the AC input to loads when in bypass. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Solar Systems | Ideal for remote cabins, workshops, or small homes requiring a reliable standalone power solution. |
| Backup Power Solutions | Ensures essential loads remain powered during grid outages, suitable for residential or small business continuity. |
| Energy Storage Systems (ESS) | Manages battery charging and discharging for self-consumption optimisation and potential grid feed-in. |
| Mobile & Marine Power | Suitable for caravans, motorhomes, and boats requiring a stable 12V pure sine wave AC supply. |
Built-In Protection Functions
The TBB Power RIIOSUN-II is equipped with multiple protection features to ensure safe and reliable operation. These include safeguards against overload ย โขย short circuit ย โขย high battery voltage ย โขย low battery voltage ย โขย high temperature ย โขย PV reverse polarity ย โขย AC over/under voltage ย โขย input voltage out of range ย โขย fan block.
Common Questions
What battery types are compatible with this inverter?
The TBB Power RIIOSUN-II is compatible with a wide range of 12V battery types, including lead-acid (AGM, GEL, Flooded) and various lithium batteries (e.g., LiFePOโ) with appropriate BMS.
Can this inverter operate without a battery?
Yes, the RIIOSUN-II can operate without a battery, but this configuration is typically for single-use applications with a stable AC bypass supply, where PV energy supplements the AC bypass.
Is it possible to expand the system capacity later?
Yes, the RIIOSUN-II offers enhanced flexibility, allowing parallel connection of up to 3 units in single-phase applications or up to 9 units in three-phase applications for increased power output.
What is the transfer time during a power outage?
The inverter features a rapid 4ms automatic transfer switch, ensuring a near-instantaneous switch to battery power to maintain continuous operation of critical loads.
Installation Notes
- Installation should be performed by a qualified professional in accordance with local electrical regulations and the manufacturer's manual.
- Ensure adequate ventilation around the inverter to prevent overheating and maintain optimal performance.
- Verify correct battery voltage (12V) and type compatibility before connecting to the inverter.
- Proper grounding is essential for safety and system stability.
- Consider the inverter's IP21 rating, which indicates protection against solid objects over 12.5mm and vertically falling drops of water. It is not suitable for outdoor exposure without additional protection.
Before You Buy
- Confirm your total load requirements (continuous and surge) to ensure the 1kW continuous and 2kW peak power output meets your needs.
- Check your battery bank's nominal voltage to ensure it is 12V for compatibility with this inverter.
- Assess your solar array's specifications (Max PV Open Circuit Voltage 150V, MPPT Voltage Range 30-145V) to ensure it aligns with the inverter's MPPT controller.
- Consider future expansion needs; this model supports parallel operation for increased capacity.
- Review the physical dimensions (462 x 255 x 144 mm) and weight (12 kg) to ensure suitable mounting space.
Always verify product specifications and compatibility with your existing system components before purchase. This product is covered by a 5-year manufacturer warranty.
