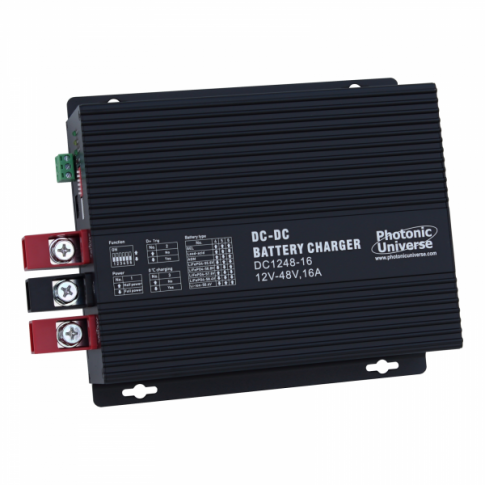

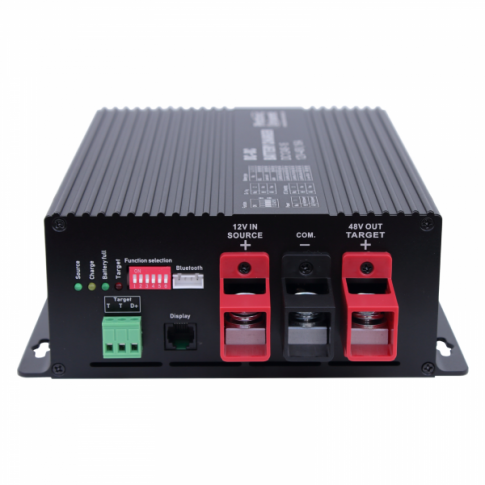

16A 12V DC to 48V DC Advanced Automatic Multi-Stage Battery-to-Battery Charger for Lead Acid and Lithium Batteries
16A 12V DC to 48V DC Advanced Automatic Multi-Stage Battery-to-Battery Charger for Lead Acid and Lithium Batteries
SKU:DC1248-16
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
12V to 48V DC-DC Charger (16A)
Professional Grade Multi-Stage Battery-to-Battery Charger
The DC1248-16 is a sophisticated DC-to-DC battery charger designed to provide a fast and efficient charge to a 48V battery bank from a standard 12V vehicle system. Utilizing advanced buck-boost power conversion technology, this unit ensures a stable 48V output regardless of fluctuations in the source voltage.
Key Features
- ✔ Multi-Stage Charging: Adjustable 3-stage program for optimized battery life.
- ✔ Ignition Detection: D+ terminal prevents starter battery drain when engine is off.
- ✔ Lithium Compatible: Dedicated settings for LiFePO4 and Li-ion (NCM).
- ✔ Compact Design: Rugged, lightweight housing for mobile installations.
Technical Specs
| Input Voltage | 11.5V - 16.0V DC |
| Output Voltage | 48V (Nominal) |
| Max Output Current | 15.4A - 16A |
| Max Charging Power | 910 Watts |
| Terminal Connections | M8 Studs |
| Efficiency | >90% Typical |
Compatibility & Fitment Guide
| Application | System Type | Notes |
|---|---|---|
| Leisure Vehicles | Motorhomes / Caravans | Charging 48V leisure banks from 12V alternator. |
| Marine | Boats / Yachts | Ideal for 48V bow thrusters or electric propulsion. |
| Industrial | Mobile Power Stations | Solar battery maintenance and voltage boosting. |
| Battery Types | Lead Acid, AGM, GEL, LiFePO4 | DIP switch selectable profiles. |
OEM Cross Reference
| Part Number / SKU | DC1248-16 |
| Manufacturer Reference | Photonic Universe DC124816 Series |
| Alternative Category | Battery-to-Battery (B2B) Booster Charger |
Installation Guide
Mount in a dry, ventilated area. Connect the input to your 12V starter battery (via fuse) and output to your 48V bank. For Euro 6 / Smart Alternators, the D+ terminal must be connected to an ignition-switched live source to enable charging.
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet exact DC1248-16 technical specifications for high-performance power conversion.
Will this charge Lithium batteries?
Yes, it features a specific charging profile for LiFePO4 and Lithium-ion (NCM) batteries, ensuring the correct voltage and current delivery for lithium chemistry.
Does it work with Smart Alternators?
Yes. By using the D+ terminal, you can trigger the charger to operate only when the engine is running, making it fully compatible with modern Euro 6 vehicles.
Note: Please verify your system voltage requirements against the SKU DC1248-16 before purchasing. For expert assistance, contact solarika.
