15kW Zero-Transfer Uninterrupted Power Supply (UPS) System with 24kWh energy storage
15kW Zero-Transfer Uninterrupted Power Supply (UPS) System with 24kWh energy storage
SKU:UPS3-ZT5K-48
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
UPS3-ZT5K-48 | 15kW 48V UPS System
Premium Zero-Transfer Hybrid Solar Solution

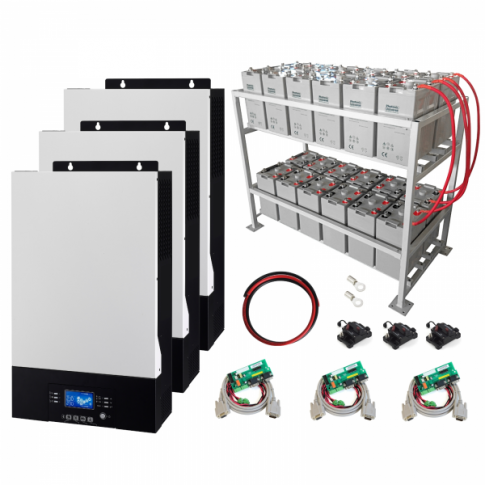

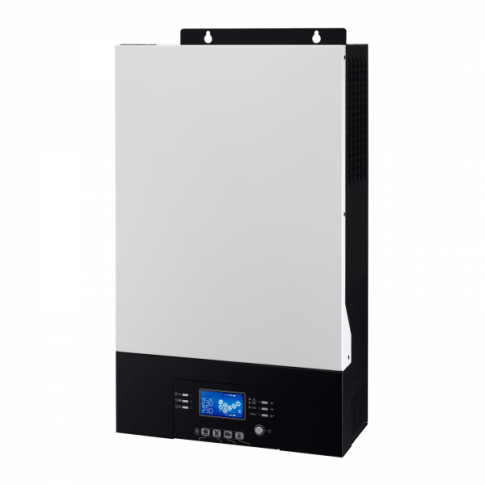

The Solarika UPS3-ZT5K-48 is a professional-grade power solution designed for applications requiring absolute reliability and uninterrupted AC power. This system combines three 5000W hybrid inverters in a parallel configuration to deliver a massive 15kW of continuous pure sine wave power. Unlike standard off-grid inverters that have a 10-20ms delay, the ZT series features Zero-Transfer technology (0ms), making it the ideal choice for sensitive IT equipment, servers, medical devices, and high-end electronics.
Key Features
- ✔ 15,000W Continuous Output (3 units)
- ✔ Zero Transfer Time for seamless UPS function
- ✔ Built-in 80A MPPT Solar Controller per unit
- ✔ Supports Parallel Expansion up to 9 units
- ✔ Pure Sine Wave AC 230V output
Technical Specs
| System Voltage | 48V DC |
| Total Rated Power | 15,000W / 15,000VA |
| Surge Power | 30,000VA (5s) |
| Max Solar Input | 12,000W (4kW per unit) |
| MPPT Voltage Range | 60V - 115V DC |
| Max Charging Current | 240A (Combined Solar) |
| Peak Efficiency | 93% |
Compatibility / Fitment Guide
| System Element | Requirements / Notes |
|---|---|
| Battery Types | Compatible with 48V Lithium (LiFePO4), AGM, Sealed Gel, and Flooded Deep-Cycle batteries. |
| Solar Panels | Supports PV arrays up to 145V Voc. Recommended Vmp 60-115V for optimal MPPT performance. |
| Mains/Generator | Accepts single-phase 230V AC input for charging and bypass mode. |
OEM Cross Reference
| Manufacturer SKU | UPS3-ZT5K-48 |
| Compatible Series | Voltronic Axpert King 5K (Parallel Setup) |
| Alternative Reference | ZT5K-48-PAR-3 |
Installation Guide
The UPS3 system requires parallel connection kits (included). Ensure all three inverters are connected to a common 48V DC battery bank using appropriate gauge cabling. For the zero-transfer function, ensure the units are configured in UPS mode via the LCD panel. Due to the high power output and complex wiring, installation by a certified solar engineer is mandatory.
Questions & Answers
Is this a genuine original part?
This is a premium Solarika system utilizing industrial-grade zero-transfer components, manufactured to meet or exceed international standards for high-demand power backup.
How do I know if it is compatible?
If you require a 48V DC system that can handle 15kW loads with zero downtime during power cuts, this SKU is exactly what you need. Ensure your battery bank can handle the 240A max charge current.
Can this system be expanded further?
Yes, the UPS3-ZT5K-48 is built on an expandable architecture. You can add up to 6 additional ZT5K-48 units in parallel to reach a total system capacity of 45kW (9 units total).
Note: Please verify your system load and battery capacity against the technical specifications above before purchasing. Technical support is available at Solarika.co.uk.
