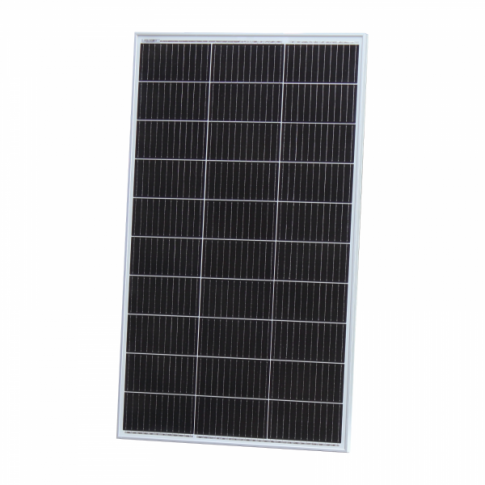

150W monocrystalline solar panel with 90cm cable
150W monocrystalline solar panel with 90cm cable
SKU:SWG-150M
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Solar Panel 150W 12V - SWG-150M
Premium Monocrystalline High-Efficiency Module
The Solarika SWG-150M is a high-performance 150W monocrystalline solar panel engineered for permanent outdoor use. This panel is the ideal solution for providing free, sustainable electricity for 12V battery systems in camper vans, motorhomes, boats, and remote off-grid locations. Utilizing advanced multi-busbar solar cells, the SWG-150M extracts maximum power from a compact surface area, making it perfect for installations where roof space is at a premium.
Key Features
- ✔ High Efficiency: Monocrystalline cells with superior low-light performance.
- ✔ Weatherproof: IP65 rated junction box and IP67 MC4 connectors.
- ✔ Durability: Toughened safety glass protects against hail and ice.
- ✔ Plug & Play: Fitted with 90cm cables for easy daisy-chaining.
Technical Specs
| Peak Power (Pmax) | 150W |
| Max Power Voltage (Vmp) | 17.31V |
| Max Power Current (Imp) | 8.67A |
| Open Circuit Voltage (Voc) | 20.92V |
| Short Circuit Current (Isc) | 9.23A |
| Dimensions | 1120 x 670 x 30 mm |
| Weight | 8.0 kg |
Compatibility / Fitment Guide
| System Type | Application | Notes |
|---|---|---|
| 12V Battery Banks | Caravans, Motorhomes, RVs | Requires 10A-20A Charge Controller |
| Marine Systems | Boats, Yachts, Narrowboats | Salt-mist resistant materials |
| Off-Grid Power | Sheds, Farms, Monitoring Stations | Ideal for remote telecommunications |
OEM Cross Reference
| SKU / Part Number | SWG-150M |
| Compatible Alternatives | SWD-150M, DSP-150M, RS-M150 |
Installation Guide

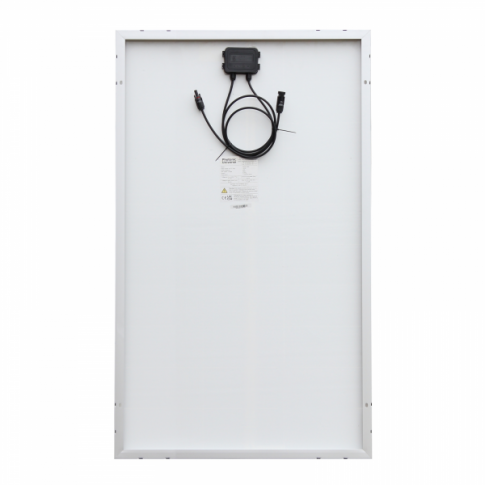

Mounting holes are pre-drilled on the back of the frame for fast and secure installation. The panel includes 90cm of 4mm² solar cable with MC4 connectors. Note: A solar charge controller (minimum 12A recommended) is required to safely charge 12V batteries and prevent overcharging.
Questions & Answers
Is this a genuine original part?
This is a premium Solarika branded monocrystalline panel, manufactured to the exact specifications of the SWG-150M design for guaranteed performance and fitment.
How do I know if it is compatible?
Check the dimensions (1120x670mm) and SKU. If you are replacing an existing 150W panel, ensure the voltage (Vmp ~17.3V) matches your charge controller settings.
Can I use this in high-heat environments?
Yes, the SWG-150M features high-grade solar cells that maintain high efficiency even in warmer climates, with a temperature coefficient of Pmax typically around -0.40%/°C.
Note: Please verify your mounting space against the dimensions above before purchasing. Distributed by Solarika.co.uk.
